175091-1
| Manufacturer | |
| Description | Contact SKT Crimp ST Cable Mount Strip Econoseal III CONN RCPT 14-12AWG .187 TIN Econoseal III 187 receptacle contact Automotive Connectors .187SEALD REC CONT L Econoseal III Product Highlights:ContactReceptacleWire Range = 2.00-3.00² [14-12] mm [AWG]Wire Insulation Diameter = 2.90 - 3.80 mmTerminate To WireSearch Keywords:engine compartments, waterproof, rugged construction, wire seal, tree clip, tree, christmas tree, fixation clip EconosealIII187receptaclecontact TE Connectivity .187 SEALD REC CONT L |
| Category |
商业参数
| 标准包装规格 | 2,000 | 标准包装数量 | Tape & Reel |
| 工厂包装数量 | 2000 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | ||
电气参数
| 导体绞线 | 0 – 24 A（低功率） | ||
机械参数
| 锁定类型 | 无尖刃主体 | 包装方式 | Tape & Reel (TR) |
| 插片宽度 | 0.187" (4.75mm) | 电缆类型 | 铜 |
| 绝缘类型 | Non-Insulated | 插片长度 | 0.315" (8.00mm) |
| 导线线规 | 12-14 AWG | 端接方式 | Crimp |
| 触头类型 | Power | 安装类型 | Free Hanging (In-Line) |
| 端子类型 | Standard | 连接器类型 | Connector Power |
| 接触镀层 | Pre-Tin | 触头材料 | Brass |
| 总长度 | 0.768" (19.50mm) | 包装数量 | 2000 |
| 端接排数 | 压接 | 绝缘直径 | 2.9 – 3.8 mm [ .114 – .149 in ] |
| 法兰上方插针尺寸 | 4.8 mm [ .189 in ] | ||
产品信息
| 连接器性别 | SKT | 产品特性 | Serrated Termination |
| 可密封 | 是 | ||
环境参数
| 防护等级 | 单线密封 (SWS) | 工作温度 | -22 – 221 |
Documents & Media
相关型号
176146-2
te connectivity / amp
Conn Housing PL 2 POS 7.9mm Crimp ST Cable Mount Econoseal III CONN PLUG HSG 2POS .187 SER BLK Econoseal III 187 2 W black plug housing Automotive Connectors 187 PLUG HSG 2P BLK Econoseal III Product Highlights:HousingHousing Type = PlugColor = BlackNumber of Positions = 2Terminate To Wire EconosealIII1872Wblackplughousing TE Connectivity .187 系列 系列 2路 电缆安装 黑色 公 外壳 187 PLUG HSG 2P BLACK

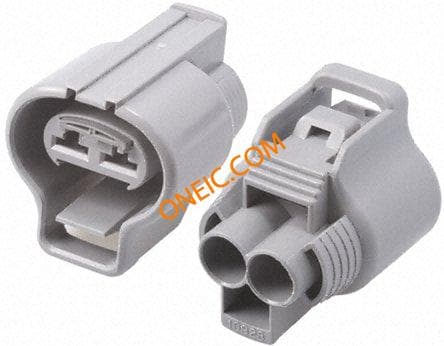

6-176146-6
