2-111196-5
| Manufacturer | |
| Description | Conn IDC Connector RCP 10 POS 1.27mm IDT RA Cable Mount .050 X .100 AMPMODU System 50 CONN RECEPT 10POS .050X.100" IDC Ribbon cable conn.rcpt.10 way,1.27mm,blk Headers & Wire Housings 10 POS RECEPT IDC DUAL ROW Conn IDC Connector RCP 10 POS 1.27mm IDT RA Cable Mount Product Highlights:Receptacle AssemblyNumber of Positions = 10Number of Rows = DualWith Mating Connector LockWire/Cable Type = Ribbon CableSearch Keywords:dual beam contact, wire to wire, IDC, latching, signal, pcb connectors, AMPMODU RECEPTACLE, 10WAY Connectors,ribboncablereceptacle,doublerow,10position TE Connectivity AMP-LATCH System 50 系列 2行 10路 1.27mm节距 直角 母 IDC 连接器 , 电缆安装 010 RCPT SYSTEM 50 30 DPLX |
| Category |
Business
| Product Category | Headers & Wire Housings | Standard Package | Trays |
| Factory Pack Quantity | 110 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | Tariff No | 85369010 |
| Material Flammability Rating | UL94V-0 | ||
Electrical
| Range deg/s | :TE - AMPMODU System 50 Series | Voltage Rating | 30 V ac |
| Switch Function | Latch | Contact Resistance | 30 mohm |
| Current Rating (Max) | 0.5A | Insulation Resistance | 5000 MOhms |
| Voltage - Supply (Min) | 30VAC | ||
Mechanical
| Color | Black | Depth | 6.45 mm |
| Pitch | 1.27 mm | Height | 14.73 mm |
| Weight | 0.002 | Packaging | Bulk |
| Wire Type | Ribbon Cable | Cable Exit | Straight |
| Wire Gauge | 30-32 AWG | Row Spacing | 0.100" (2.54mm) |
| Termination | IDT | Contact Type | Female Socket |
| Housing Color | Black | Mounting Type | Free Hanging (In-Line) |
| Angle of Throw | Straight | Connector Type | Receptacle |
| Contact Finish | Gold Over Nickel | Fastening Type | Latch Lock |
| Mounting Style | Wire | Number of Rows | 2 |
| Contact Material | Phosphor Bronze | Housing Material | Liquid Crystal Polymer |
| Length - Overall | 12.95 mm | Primary Material | InterconnectSystem |
| Cable Termination | IDC | Pin Hole Diameter | 0.05" |
| Termination Style | IDC | 1st Contact Gender | Socket (Female) |
| Color - Connectors | :Black | Number of Contacts | 10 |
| Contact Termination | :IDC / IDT | Number of Positions | 10 |
| Contact Finish Thickness | 30µin (0.76µm) | 1st Connector Mounting Type | :Cable |
Product Info
| Type | IDC Connector | Gender | RCP |
| Series | AMP | Features | Feed Through |
| Hardware | Latch | Manufacturer | AMPMODU |
| Product Type | Receptacles / Sockets - Housings | Application Specifics | Commercial |
Environmental
| Operating Temperature | +105°C | ||
Documents & Media
Similar Parts
104068-2
te connectivity / amp
Conn Shrouded Header HDR 10 POS 1.27mm Solder ST Thru-Hole Tube .050 X .100 AMPMODU System 50 CONN HEADER VERT .050 10POS 30AU Headers & Wire Housings 10 SYSTEM 50 HDR DRST SHRD Conn Shrouded Header HDR 10 POS 1.27mm Solder ST Thru-Hole Tube Product Highlights:Header AssemblyNumber of Positions = 10Number of Rows = DualShroudedVertical Mount AngleSearch Keywords:wire to wire, wire to board, IDC, latching, high density, co-planar, horizontal, pcb connectors, AMPMODU 10 SYSTEM 50 HDR DRST SHRD
104549-1
te connectivity / amp
Conn Shrouded Header HDR 10 POS 1.27mm Solder ST SMD Tube .050 X .100 AMPMODU System 50 CONN HEADER .050 10POS VERT SMD Headers & Wire Housings HDR 10P VERT SMD Conn Shrouded Header HDR 10 POS 1.27mm Solder ST SMD Tube Product Highlights:Housing Gender = Header - Pin10 PositionsNumber of Rows = DualShroudedVertical Mount AngleSearch Keywords:wire to wire, wire to board, IDC, latching, high density, co-planar, horizontal, pcb connectors, AMPMODU 10 SYS50 SURFMNT HDR DRST SHRD
5-104068-2
te connectivity / amp
Conn Shrouded Header HDR 10 POS 1.27mm Solder ST Thru-Hole Tube .050 X .100 AMPMODU System 50 CONN HEADER 10POS VERT DL GOLD Header vertical 10 way AmpModu system 50 Headers & Wire Housings HDR 2X05P VRT T/H Conn Shrouded Header HDR 10 POS 1.27mm Solder ST Thru-Hole Tube Product Highlights:Connector Type = Header - Pin10 PositionsNumber of Rows = DualShroudedVertical Mount AngleSearch Keywords:wire to wire, wire to board, IDC, latching, high density, co-planar, horizontal, pcb connectors, AMPMODU TE Connectivity AMPMODU System 50 系列 2.54mm节距 10路 (2排) 直 PCB 针座, 焊接端接 , 通孔 10 SYSTEM 50 HDR DRST SHRD

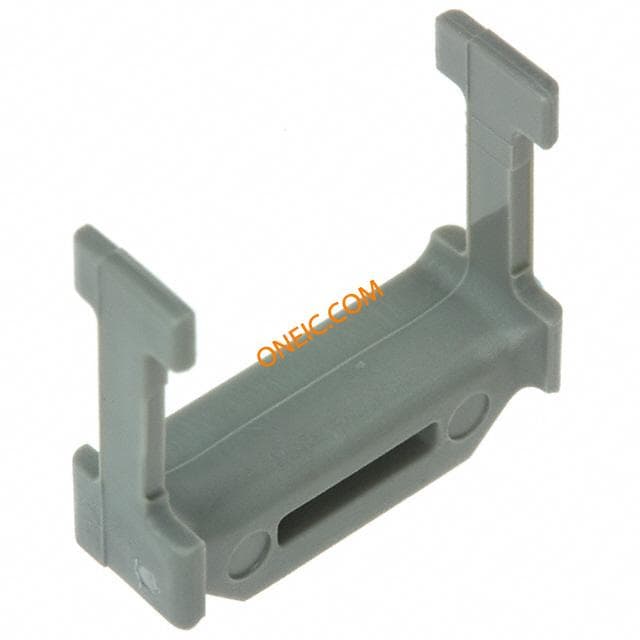

3448-3010
