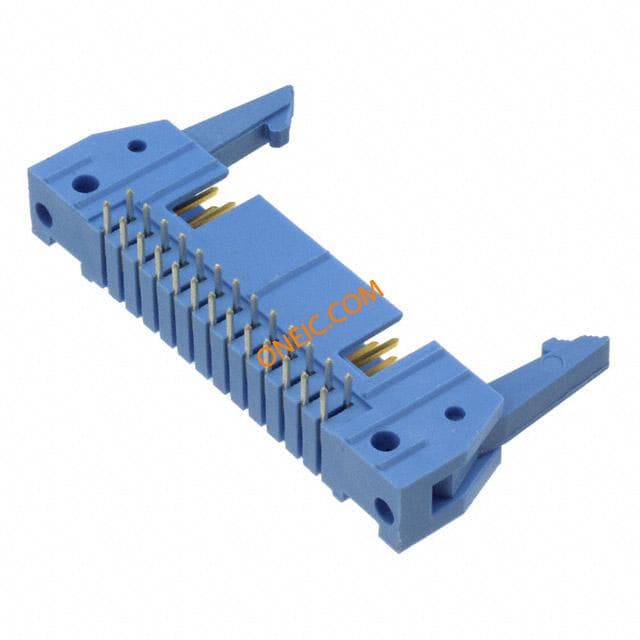

2-1761607-9

Business

Tradename	AMP-LATCH	Product Category	Headers & Wire Housings
Standard Package	Bulk	Factory Pack Quantity	13

RoHS	Lead free / RoHS Compliant	Tariff No	85369010
Leadfree Defin	Wave solder capable to 240Â°C, Wave solder capable to 260Â°C, Wave solder c	RoHSELV Compliance	RoHS compliant, ELV compliant
Material Flammability Rating	UL 94V-0

Color	Blue	Depth	:10.3mm
Pitch	2.54 mm	Width	:40.6mm
Length	:9.2mm	Weight	0.004
Material	:Glass reinforced thermo plastic	Packaging	Tube
Shrouding	Yes	Row Spacing	0.100" (2.54mm)
Termination	Solder	Contact Type	Male Pin
Lead Spacing	:2.54mm	Pitch - Post	2.54 x 2.54 [.100 x .100]
Polarization	Center, Military	2nd Connector	Without
Contact Shape	Square	Housing Color	Blue
Mounting Type	Right Angle	Connector Type	Pin Header
Contact Finish	Gold Over Nickel	Fastening Type	Latch Lock/Eject Hooks
Mounting Style	Through Hole	Number of Rows	2
Package / Case	4-Sided	Profile (W x H)	Low
Contact Material	Phosphor Bronze	Housing Material	Thermoplastic
Length - Overall	3.81 [0.150]	Primary Material	IndustrialRectangular
Size / Dimension	0.64 [.025]	Termination Style	Through Hole
1st Contact Gender	Pin (Male)	Mating Orientation	With
Number of Contacts	26	Contact Termination	:Through Hole Right Angle
Number of Positions	26	Mounting Hole Diameter	:0.9mm
Contact Length - Mating	0.237" (6.02mm)	Termination Post Length	2.60 [0.102]
Contact Finish Thickness	30µin (0.76µm)
