2-480709-0
| Category |
对参数有疑问？问 AI 助手
Business
| Standard Pack | 1 | Product Category | Power to the Board |
| Standard Package | Bulk | Factory Pack Quantity | 1 |
Compliance
| RoHS | Lead free / RoHS Compliant | UL Rating | 获得认可 |
| Part Status | E28476 | CSA File Number | LR7189 |
| Standard Number | CSA, UL | CSA Certification | Certified |
| UL Flammability Rating | UL 94V-2 | Approval Agency Marking | 是 |
Electrical
| Voltage - Supply | 600 | ||
Mechanical
| Color | Natural | Pitch | 6.35 mm |
| Sealed | Not Sealed | Packaging | Bulk |
| Wire Gauge | 10-30 AWG | Row Spacing | 0.250" (6.35mm) |
| Size - Body | .76 – 2.29 mm [ .76 – 2.29 in ] | Contact Type | Male or Female |
| Mounting Type | Straight | Connector Type | Receptacle |
| Contact Finish | Without | Fastening Type | Locking Ramp |
| Number of Rows | 3 | Package / Case | Receptacle |
| Housing Material | 尼龙 | Package Quantity | 1 |
| Panel Mount Type | 带有 | Termination Style | 插针 |
| Number of Contacts | 12 | Contact Termination | Crimp |
| Number of Positions | 12 | Compatible Shell Size | 适当的通用 MATE-N-LOK 插头 |
| Contact Layout, Typical | 矩阵 | 1st Connector Mounting Type | Panel |
Product Info
| Note | Contacts Not Provided | Type | Housing |
| Gender | RCP | Product Type | 护套 |
| Assembly Configuration | Without | ||
Environmental
| Temperature - Test | 标准件 - 非灼热丝 | Operating Temperature | -55 – 105 °C [ -67 – 221 °F ] |
Documents & Media
Online Document
Similar Parts
1-480708-8
te connectivity / amp
Details
2-480708-0
te connectivity / amp
$18.6592
Details

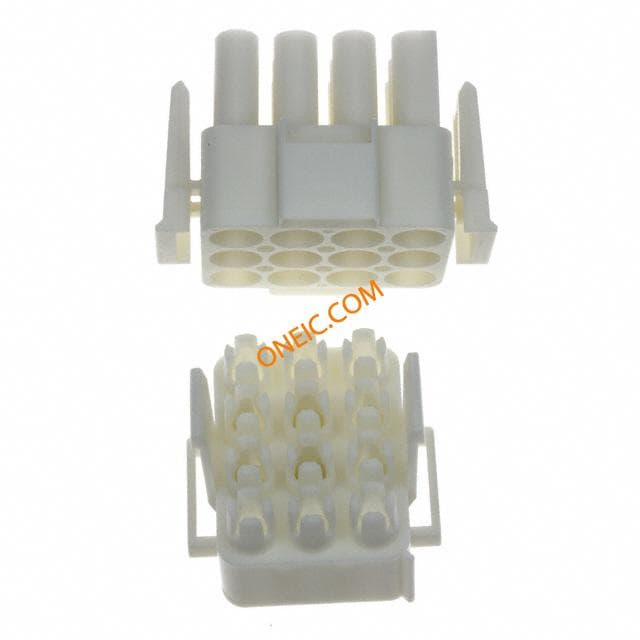

770022-1
te connectivity / amp
$5.1000
Details
1-480708-2
te connectivity / amp
$2.8473
Details
350705-2
te connectivity / amp
$5.3441
Details

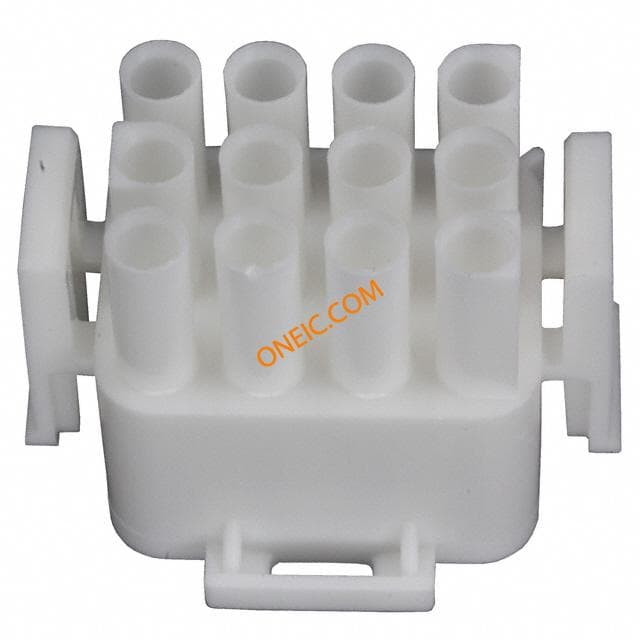

350735-1
