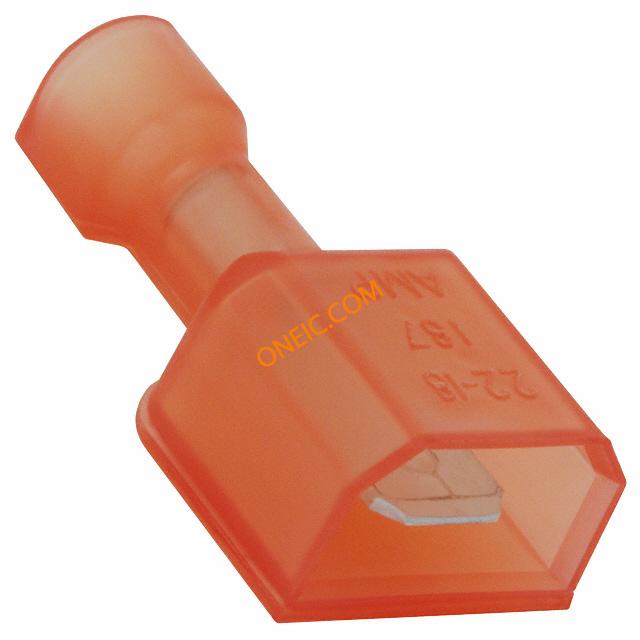

2-521103-2
| Manufacturer | |
| Description | Quick Disconnect Terminal 18-22AWG M 20.14mm 11.38mm Tin Loose Piece Terminals TAB 22-18AWG .187 .187 x .020 Ultra-Fast Receptacles & Tabs CONN ULTRA FAST 18-22AWG .187 Quick Disconnect Terminal 18-22AWG M 20.14mm 11.38mm Tin Loose Piece Product Highlights:TabProprietary Name = Ultra-FastTab Fit = 4.75 x 0.51 mmBrass MaterialInsulation Diameter = 3.43 [.135] Max. mm [in]Search Keywords:Ultra-Fast, Ultra-Fast Plus, FASTON, terminal, one piece, fully insulated, receptacle, tab, wire crimp, flag, .187, .250, color coded by wire size, 26-10 AWG TERMINAL, MALE DISCONNECT, 4.75MM, RED TAB,ULTRA-FAST,4.75X0.51MM,22-18AWG,BRASS Ultra Fast 22-18 AWG Straight Fully Insulated Receptacle Assembly ULTRA-FAST 187 ASY REC 22-18 TPBR |
| Category |
对参数有疑问？问 AI 助手
商业参数
| 产品 | Tab Terminals | 其他名称 | 25211032 |
| 产品类别 | Terminals | 标准包装数量 | 1,000 |
| 工厂包装数量 | 1000 | ||
合规参数
| RoHS | RoHS Compliant | 海关税号 | 85369010 |
| 抗辐射加固 | No | 无铅定义 | Not relevant for lead free process |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | ||
机械参数
| 颜色 | Red | 深度 | 11.38 mm |
| 表面处理 | Tin | 重量 | 0.002 |
| 材料（通用） | Brass | 包装方式 | Bulk |
| 插片宽度 | 4.75 x 0.51 [.187 x .020] | 电缆类型 | Regular Wire |
| 绝缘类型 | Insulated | 导线线规 | 22-18 |
| 端接方式 | Crimp | 基体材料 | Brass |
| 安装类型 | Straight | 螺柱/焊片尺寸 | 0.187 in x 0.2 in |
| 插片厚度 | 0.020" (0.51mm) | 端子类型 | Standard |
| 连接器类型 | :Male Disconnect | 接触镀层 | Tin |
| 壳体镀层 | Tin | 触头材料 | Brass |
| 绝缘颜色 | :Red | 总长度 | 0.793" (20.14mm) |
| 包装数量 | Loose Piece | 绝缘高度 | Non-Insulation Support |
| 绝缘直径 | 3.43 [.135] Max. | 绝缘材料 - 类型 | Nylon |
| 绝缘材料 - 材质 | Fully Insulated | 线规或范围 - AWG | :22AWG |
| 线规或范围 - mm² | 0.30-0.90² [22-18] | ||
产品信息
| 类型 | Crimp Terminal | 连接器性别 | Male |
| 系列 | 521 | 应用 | Standard |
| 产品子类型 | Tab | 专有名称 | Ultra-Fast |
| 其他规格 | Wire Crimp | ||
