Business
| Tradename | Multimate | Product Category | Pin & Socket Connectors |
| Standard Package | 900 | Factory Pack Quantity | 900 |
Compliance
| RoHS | Compliant | Tariff No | 85369010 |
| Rad Hardened | No | ||
Electrical
| Current Rating (Max) | 13 A | ||
Mechanical
| Length | 27.61mm | Weight | 0.00068 |
| Plating | Gold | Diameter | 3.25 mm |
| Material | Copper Alloy | Packaging | Bulk |
| Cable Exit | No | Wire Gauge | 20-24 AWG |
| Termination | Crimp | Contact Form | 1Signal |
| Contact Size | 16 | Mounting Type | Cable Mount |
| Pin or Socket | Pin | Shell Plating | Not Required |
| Contact Finish | Gold over Nickel | Mounting Style | Cable |
| Contact Material | Brass | Length - Overall | 27.61 mm |
| Termination Style | Crimp | 1st Contact Gender | Pin (Male) |
| Number of Contacts | 1 POS | Contact Termination | Crimp |
| Plating - Thickness | 30µin (0.76µm) | Wire Gauge or Range - AWG | 24-20 |
Product Info
| Type | Machined | Gender | Male |
| Series | Type II | Product Type | Contacts |
| For Use With/Related Products | :Type II Series Connectors | ||
Documents & Media
PDF Document
Online Document
Similar Parts
1-601967-6
te connectivity / amp
$3047.1997
Details
200893-2
te connectivity / amp
$635.4709
Details
200346-4
te connectivity / amp
$124.9976
Details
305183
te connectivity / amp
$84.0623
Details
202758-3
te connectivity / amp
$240.1712
Details

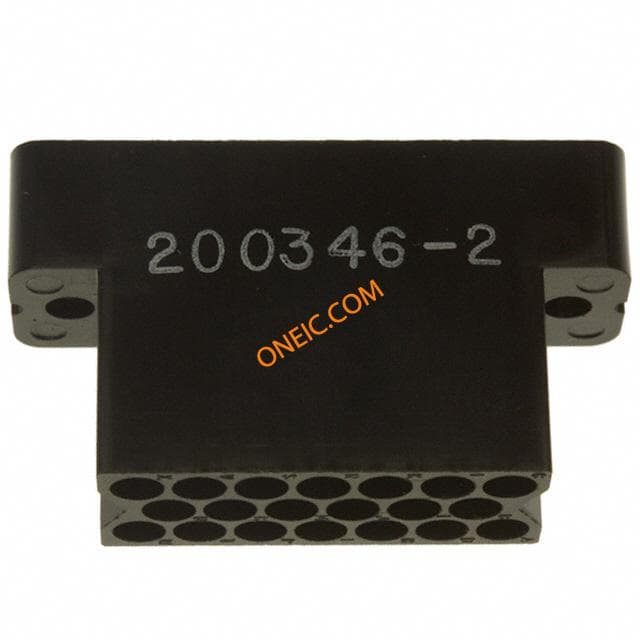

200346-2
te connectivity / amp
$71.8080
Details
90230-1
te connectivity / amp
$64197.6440
Details

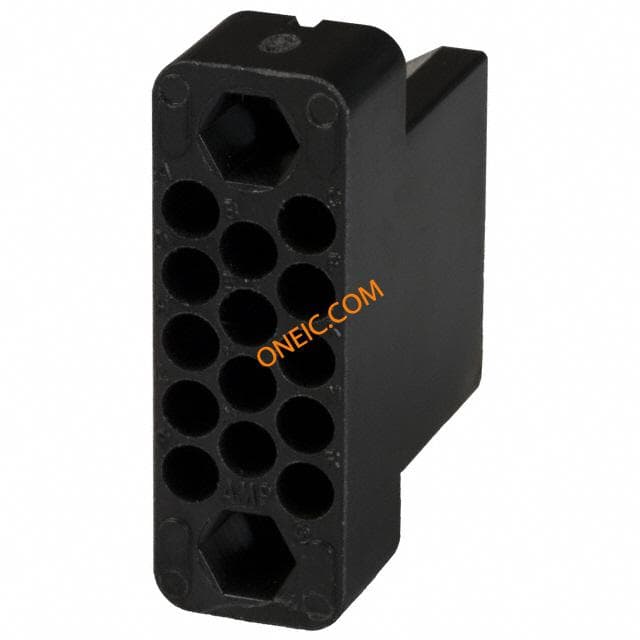

201298-1
te connectivity / amp
$50.2653
Details
201310-3
te connectivity / amp
$172.5568
Details
202650-4
te connectivity / amp
$253.6400
Details

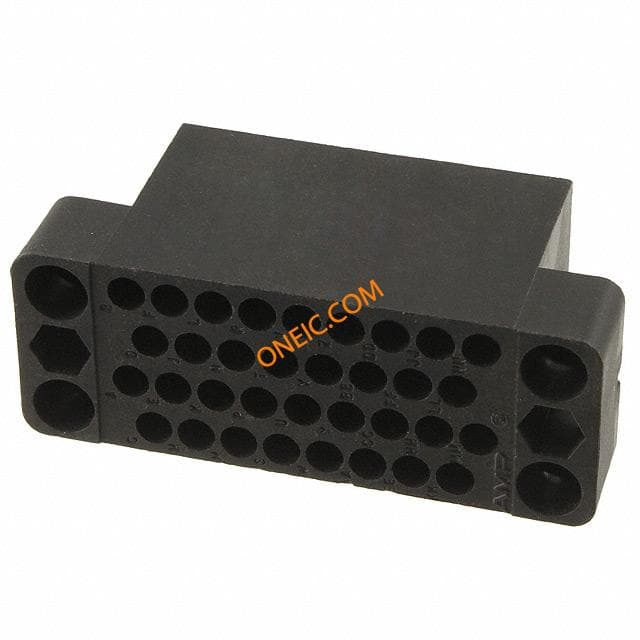

213802-1
te connectivity / amp
$14.2800
Details

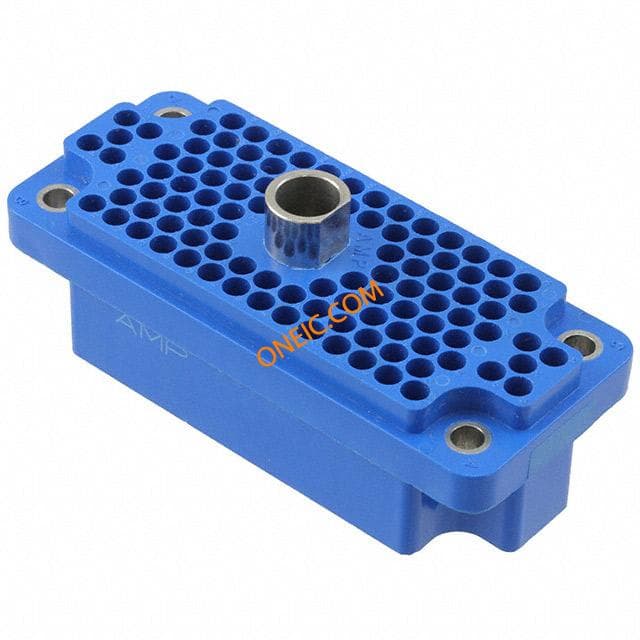

201532-2
te connectivity / amp
$646.0000
Details
58541-2
te connectivity / amp
$5474.0802
Details
90249-2
te connectivity / amp
$9449.7560
Details
202759-4
te connectivity / amp
$384.5400
Details
194242-1
te connectivity / amp
$80.5800
Details
91002-1
te connectivity / amp
$404.4803
Details
58541-1
te connectivity / amp
$3901.2280
Details

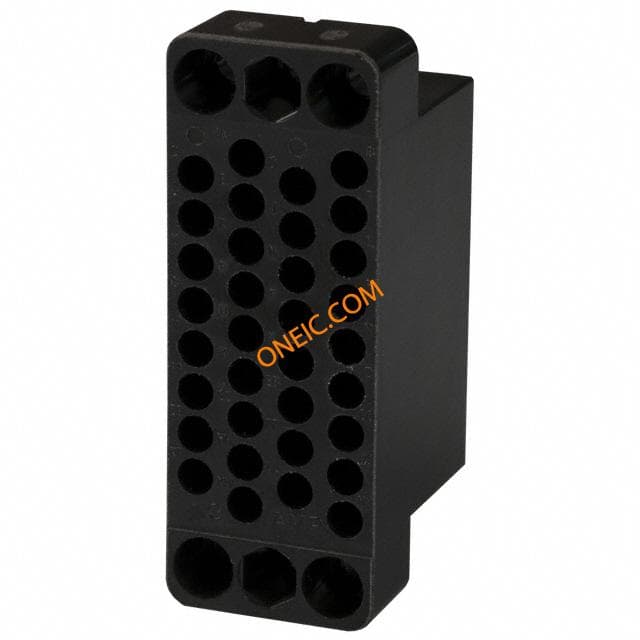

200838-2
