206305-4
| Manufacturer | |
| Description | Conn CPC PIN 37 POS Crimp ST Cable Mount 37 Terminal 1 Port Standard Circular Connector PLUG ASSY SZ 23-37 CPC Connectors CONN PLUG 37POS CPC PLASTIC CPC Connectors Product Highlights:ConnectorNumber of Positions = 37PlugFor Use With Pin ContactsNot PreloadedSearch Keywords:Circular Plastic, Cabled Power, POWERBAND, coaxial, power, DIN 57627, III+ contacts, CMC, Metal Shell CPC, TETRASEAL, IEC IP 65, IEC IP 67, input/output, box to box, circular industrial, sealed, discrete wire, crimp, input/output, box to box, circular, Circular Plastic Connectors, CPC CPC PLUG ASSEMBLY SIZE 23-37 |
| Category |
Business
| Lead Time | 63 Days | Tradename | CPC Series 1 |
| Subcategory | Connector Circular | Standard Pack | 100 |
| Product Category | Standard Circular Connector | Standard Package | Bulk |
| Factory Pack Quantity | 100 | ||
Compliance
| RoHS | RoHS Compliant | Compliance | No |
| Leadfree Defin | Not relevant for lead free process | RoHSELV Compliance | RoHS compliant, ELV compliant |
| UL Flammability Rating | UL 94V-0 | Approval Agency Marking | 否 |
| Material Flammability Rating | UL 94V-0 | ||
Electrical
| Fluid Resistance | 无 | Number of Channels | 37 |
| Connector - Voltage Input | 反向 | ||
Mechanical
| Sealed | No | Outline | 23 |
| Packaging | Bulk | Shielding | 否 |
| Body Color | 黑色 | Shell Size | 23 |
| Orientation | A | Shell Style | Plug |
| Termination | Crimp | Thread Size | 1-3/8 - 18 UNEF-2A |
| Contact Size | 16 | Contact Type | Crimp |
| Housing Color | Black | Mounting Type | Cable Mount |
| Connector Type | Plug for Male Contacts | Fastening Type | Threaded |
| Mounting Style | Free Hanging | Number of Pins | 0 |
| Shell Material | 插头 | Connector Style | Plug |
| Housing Material | Nylon | Package Quantity | 100 |
| Termination Style | Wire | 1st Contact Gender | Socket (Female) |
| Mating Orientation | Threaded | Number of Contacts | 37 |
| Termination Finish | 带有 | Number of Positions | 37 |
| Shell Size - Insert | All Plastic | Mounting Hole Diameter | 带有 |
| Shell Material, Finish | Thermoplastic | 2nd Connector Mounting Feature | Reverse |
Product Info
| Note | Contacts Not Provided | Type | CPC |
| Gender | PL | Series | CPC |
| Key Type | A | Preloaded | No |
| Product Type | Connectors | Other Specifications | Without |
| For Use With/Related Products | Pin Contacts | ||
Environmental
| Operating Range | 不密封 | ||
Documents & Media
Similar Parts
206306-5
te connectivity / amp
Conn CPC SKT 37 POS Crimp ST Panel Mount 37 Terminal 1 Port CPC Connectors CONN RCPT CPC 37POS PANEL MOUNT Standard Circular Connector 23-27 RECEPTACLE 206306-5 Conn CPC SKT 37 POS Crimp ST Panel Mount 37 Terminal 1 Port Product Highlights:ConnectorNumber of Positions = 37ReceptacleFor Use With Socket ContactsNot PreloadedSearch Keywords:Circular Plastic, Cabled Power, POWERBAND, coaxial, power, DIN 57627, III+ contacts, CMC, Metal Shell CPC, TETRASEAL, IEC IP 65, IEC IP 67, input/output, box to box, circular industrial, sealed, discrete wire, crimp, input/output, box to box, circular, Circular Plastic Connectors, CPC HOUSING, RECEPTACLE, CIRCULAR, 37WAY CPC RECEPT ASSEMBLY SIZE 23-37
66361-1
te connectivity / amp
Contact PIN Crimp ST Cable Mount Loose Piece CONN PIN 14-18AWG 30GOLD CRIMP Series 1 gold plated pin contact Standard Circular Contacts TYPE III+ PIN 18-14 Contact PIN Crimp ST Cable Mount Loose Piece Product Highlights:PinGold (30) over Nickel (50) Contact Mating Area Plating MaterialWire Range = 0.80-2.00² [18-14] mm [AWG]Insulation Diameter = 2.03 - 2.54 mmBrass Contact Base MaterialSearch Keywords:CPC (Circular Plastic) & Metal Shell CPC, M Series Pin & Socket, Lighting Interconnection, Precision Pin and Socket, Cabled Power, contacts CRIMP PIN, TYPE3, SIZE16, PK10 III+PIN,18-14,30AU>10,LP TE Connectivity Type III+ 系列 公 压接端接 圆形 连接器 触芯, 使用于CPC 连接器、G 系列连接器、M 系列连接器, 18 → 14 AWG 线规格 III+ PIN,18-14,30AU>10,LP
206306-1
te connectivity / amp
Conn CPC SKT 37 POS Crimp ST Panel Mount 37 Terminal 1 Port CPC Connectors CONN RECEPT CPC 37POS REV SER 1 37 Pole Female Straight Panel Mount Industrial & Automation Circular Connector, Shell Size 23 with Female Contacts Standard Circular Connector RECEPTACLE 37 PIN shell size 23 Conn CPC SKT 37 POS Crimp ST Panel Mount 37 Terminal 1 Port Product Highlights:ConnectorNumber of Positions = 37ReceptacleFor Use With Socket ContactsNot PreloadedSearch Keywords:Circular Plastic, Cabled Power, POWERBAND, coaxial, power, DIN 57627, III+ contacts, CMC, Metal Shell CPC, TETRASEAL, IEC IP 65, IEC IP 67, input/output, box to box, circular industrial, sealed, discrete wire, crimp, input/output, box to box, circular, Circular Plastic Connectors, CPC RECEPTACLE, SOCKET CONTACT, 37WAY ConnectorHousing;CPCReceptacle;37Pos.;Sz.23;Series1;PanelMnt;RevSex Connector: circular; Series: CPC Series 1; socket; female; PIN:37 Receptacle CPC1 Poles=37, accepts female contacts / with flange, 206306-1, TE Connectivity TE Connectivity 37路 面板安装 直向 连接器 插座 , 母触点 23-37 RECEPT REV SEX
208224-3
te connectivity / amp
Conn CPC SKT 37 POS Solder ST Panel Mount 37 Terminal 1 Port Standard Circular Connector CPC RCPT ASSY SIZE 23-37,S/L CPC Connectors CONN RCPT 37POS PANEL MOUNT CPC Connectors Product Highlights:ConnectorNumber of Positions = 37ReceptacleSocketPreloadedSearch Keywords:Circular Plastic, Cabled Power, POWERBAND, coaxial, power, DIN 57627, III+ contacts, CMC, Metal Shell CPC, TETRASEAL, IEC IP 65, IEC IP 67, input/output, box to box, circular industrial, sealed, discrete wire, crimp, input/output, box to box, circular, Circular Plastic Connectors, CPC
2-208224-2
te connectivity / amp
Conn CPC SKT 37 POS Solder ST Thru-Hole 37 Terminal 1 Port Standard Circular Connector CPC RECPT ASSEMBLY SIZE 23-37 CPC Connectors CONN RCPT SCKT CPC 37POS SER 1 CPC RECPT ASSEMBLY SIZE 23-37 CPC RECPT ASSEMBLY SIZE 23-37 Search Keywords:Circular Plastic, Cabled Power, POWERBAND, coaxial, power, DIN 57627, III+ contacts, CMC, Metal Shell CPC, TETRASEAL, IEC IP 65, IEC IP 67, input/output, box to box, circular industrial, sealed, discrete wire, crimp, input/output, box to box, circular, Circular Plastic Connectors, CPC

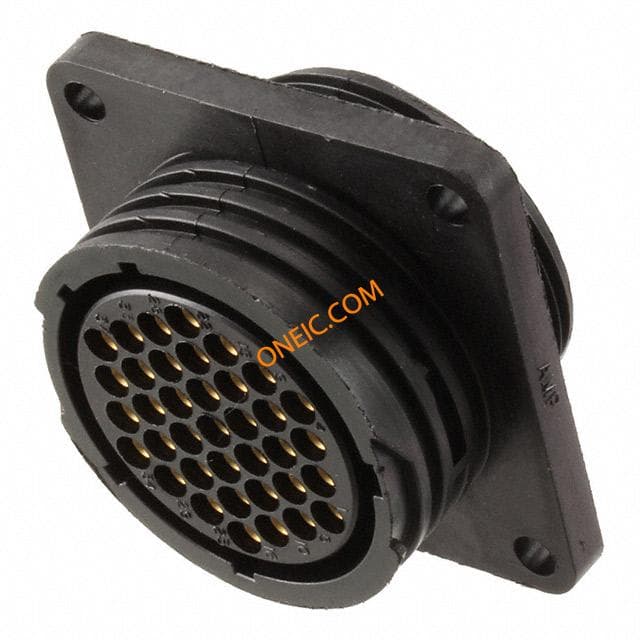

207890-1
