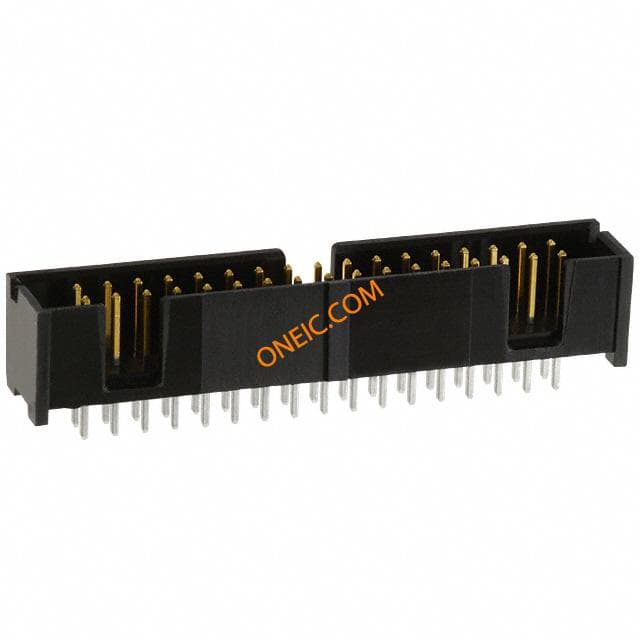

3-1761603-1
| Category |
对参数有疑问？问 AI 助手
Business
| Tradename | AMP-LATCH | Product Category | Headers & Wire Housings |
| Standard Package | Bulk | Factory Pack Quantity | 50 |
Compliance
| RoHS | Lead free / RoHS Compliant | Leadfree Defin | Wave solder capable to 240°C, Wave solder capable to 260°C, Wave solder c |
| RoHSELV Compliance | RoHS compliant, ELV compliant | Material Flammability Rating | UL 94V-0 |
Electrical
| Voltage - Supply | 250 | Resistance - Input | 1000 – 5000 |
| Connector Impedance | Top | Current Rating (Max) | 1 A |
| Link Range, Low Power | 带有 | ||
Mechanical
| Color | Blue | Depth | 9.22 mm |
| Pitch | 2.54 mm | Height | 9.22 mm |
| Length | 50.8 mm [ 2 in ] | Base Type | 不带 |
| Packaging | Bulk | Shrouding | Yes |
| Body Color | 蓝色 | End - Size | 3.81 mm [ .15 in ] |
| Lead Style | 直角 | Orientation | 直 |
| Row Spacing | 0.100" (2.54mm) | Termination | Solder |
| Contact Type | Male Pin | Pitch - Post | 2.54 x 2.54 [.100 x .100] |
| Polarization | Center, Military | 2nd Connector | Without |
| Contact Shape | Square | Housing Color | Blue |
| Mounting Type | Vertical | Connector Type | Pin Header |
| Contact Finish | Gold Over Nickel | Mounting Style | Through Hole |
| Number of Rows | 2 | Package / Case | 4-Sided |
| Shell Material | 4 面 | Actuation Force | 不带 |
| Insert Material | 磷青铜 | Profile (W x H) | Low |
| Contact Material | Phosphor Bronze | Housing Material | Thermoplastic |
| Length - Overall | 3.81 [0.150] | Package Quantity | 50 |
| Panel Mount Type | 通孔 | Primary Material | InterconnectSystem |
| Size / Dimension | 0.64 [.025] | Termination Rows | 焊接 |
| Termination Style | Through Hole | 1st Contact Gender | Pin (Male) |
| Diameter - Outside | .64 mm [ .025 in ] | Mating Orientation | With |
| Number of Contacts | 34 | Number of Positions | 34 |
| Compatible Shell Size | AMP 锁闩母端 | Mounting Hole Diameter | 带有 |
| Contact Finish - Mating | 锡 | Contact Length - Mating | 0.240" (6.10mm) |
| Termination Post Length | 2.60 [0.102] | Contact Finish Thickness | 30µin (0.76µm) |
Product Info
| Type | Shrouded Header | Gender | HDR |
| Series | 3-1761603 | Coverage | 覆盖 |
| Polarity | 带有 | Manufacturer | AMP-LATCH |
| Product Type | Headers | Other Specifications | Without |
| Number of Positions Loaded | All | ||
