3-644020-4
| Manufacturer | |
| Description | Conn IDC Connector F 4 POS 2.54mm IDT RA Cable Mount Loose Piece MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RCPT 4POS 24AWG .100 WHITE Headers & Wire Housings 04P RECPT 30AU CE Conn IDC Connector F 4 POS 2.54mm IDT RA Cable Mount Loose Piece Product Highlights:MTA-100 Connectors4 PositionsMating Type = ReceptacleConnector Type = Closed EndWire-to-Board ApplicationSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 04P MTA100 CONN ASSY 30AU |
| Category |
Business
| Other Names | 36440204 | Product Category | Headers & Wire Housings |
| Standard Package | Bulk | Factory Pack Quantity | 1 |
Compliance
| RoHS | Lead free / RoHS Compliant | UL Rating | 获得认可 |
| Leadfree Defin | Not relevant for lead free process | UL File Number | E28476 |
| CSA File Number | LR7189 | Standard Number | CSA, UL |
| CSA Certification | Certified | RoHSELV Compliance | RoHS compliant, ELV compliant |
| Material Flammability Rating | UL 94V-2 | ||
Electrical
| Voltage Rating | 250 VAC | Voltage - Supply | 250 |
| Contact Resistance | 6 mohm | Voltage - Rated AC | 250 |
| Connector Impedance | IDC | Current Rating (Max) | 5/Contact A |
| Voltage - Supply (Min) | 250VAC | ||
Mechanical
| Color | White | Depth | 6.99 mm |
| Pitch | 2.54 mm | Height | 13.21 mm |
| Length | 10.16 mm [ .4 in ] | Packaging | Bulk |
| Shrouding | No | Wire Type | Discrete or Ribbon Cable |
| Body Color | 白色 | Cable Exit | 90° |
| Cable Type | 分离式导线, 绞线 | Wire Gauge | 24 AWG |
| Termination | IDT | Contact Type | Female Socket |
| Polarization | Polarizing Tab | 2nd Connector | With |
| Housing Color | White | Mounting Type | Free Hanging (In-Line) |
| Connector Type | Closed End | Contact Finish | Gold Over Nickel |
| Contact Timing | Without | Fastening Type | Locking Ramp |
| Mounting Style | Wire | Number of Rows | 1 |
| Plating - Body | Nickel | Shell Material | 标准 |
| Connector Usage | Receptacle | Insert Material | 铜合金 |
| Contact Material | Copper Alloy | Housing Material | Nylon |
| Length - Overall | 10.16 mm | Mounting Feature | Without |
| Package Quantity | Loose Piece | Panel Mount Type | Without |
| Cable Termination | IDC | Termination Style | IDC |
| 1st Contact Gender | Socket (Female) | Mating Orientation | With |
| Number of Contacts | 4 | Termination Finish | 带有 |
| Contact Termination | Locking Lance | Insulation Diameter | 1.52 mm [ .06 in ] |
| Number of Positions | 4 | Compatible Shell Size | MTA .100 头 |
| Contact Length - Post | 电源 | Mounting Hole Diameter | 带有 |
| Contact Finish - Mating | 金 | Contact Layout, Typical | 2.54 [0.100] |
| Contact Finish Thickness | 30µin (0.76µm) | Small Diameter Recovered | No |
| Wire Gauge or Range - mm2 | 0.2² [24] | Static Discharge Shielding | 带有 |
| Jacket (Insulation) Thickness | 1.27 – 1.77 µm, 50 – 69.685 µin | ||
Product Info
| Type | IDC Connector | Gender | F |
| Series | MTA-100 | Features | Closed End |
| Sealable | 否 | Manufacturer | AMP |
| Product Type | MTA-100 Connectors | Connection Type | Wire |
| Number of Positions Omitted | None | ||
Environmental
| Operating Temperature | -55C to 105C | ||
Documents & Media
Similar Parts
2-644486-4
te connectivity / amp
Conn Shrouded Header HDR 4 POS 2.54mm Solder ST Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER VERT 4POS .100 TIN Headers & Wire Housings SHROUDED HEADER 4P Straight Post tin Conn Shrouded Header HDR 4 POS 2.54mm Solder ST Thru-Hole Product Highlights:MTA-100 ConnectorsNumber of Positions = 4Mating Type = HeaderWire-to-Board Application2.54 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP MTA-100SHROUDEDHDR,04PMTA100SHRDEDHDRASSYSN TE Connectivity MTA-100 系列 2.54mm节距 4路 (1排) 直 PCB 针座, 焊接端接, 5A , 通孔 04P MTA100 SHRDED HDR ASSY SN
644457-4
TE Connectivity / AMP
Headers & Wire Housings NARROW FLT HDR 4P Right Angle Post CONN HEADER RTANG 4POS .100 TIN

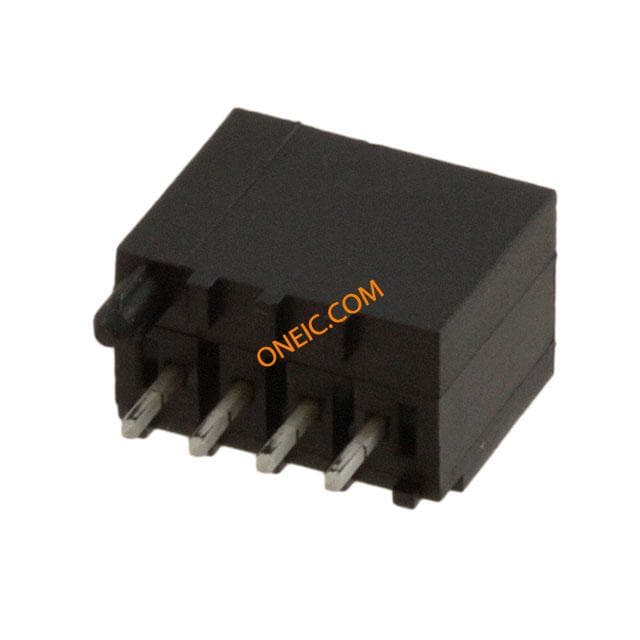

2-644487-4
