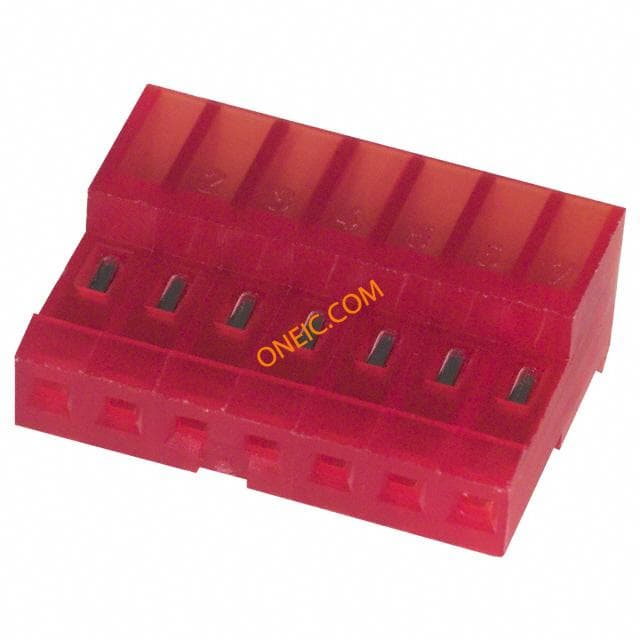

3-647008-7

Name: 3-647008-7
SKU: 3-647008-7

Business

Product Category

Headers & Wire Housings

Standard Package

Bulk

RoHS	RoHS Compliant	UL Rating	获得认可
Leadfree Defin	Not relevant for lead free process	UL File Number	E28476
CSA File Number	LR7189	Standard Number	CSA, UL
CSA Classification	已认证	RoHSELV Compliance	RoHS compliant, ELV compliant
Material Flammability Rating	UL 94V-2

Color	Red	Pitch	2.54 mm
Height	12.55 mm [ .494 in ]	Length	20.32 mm [ .8 in ]
Packaging	Bulk	Shrouding	No
Wire Type	Discrete or Ribbon Cable	Body Color	白色
Cable Type	分离式导线, 绞线	Wire Gauge	22
Termination	IDT	Contact Type	Male Pin
2nd Connector	Without	Housing Color	Red
Mounting Type	Free Hanging (In-Line)	Connector Type	Closed End
Contact Finish	Gold Over Nickel	Contact Timing	Without
Mounting Style	Wire	Number of Rows	1
Plating - Body	Nickel	Connector Usage	Receptacle
Insert Material	铜合金	Contact Material	Copper Alloy
Housing Material	Nylon	Mounting Feature	Without
Package Quantity	100	Panel Mount Type	Without
Cable Termination	IDC	Termination Style	IDC
1st Contact Gender	Socket (Female)	Mating Orientation	Without
Number of Contacts	7	Termination Finish	带有
Insulation Diameter	1.52 mm [ .06 in ]	Number of Positions	7
Compatible Shell Size	标准 MTA .100 连接器，仅带有极化公端电路尺寸 4 - 19，没有极化公端电路尺寸 2 和 3	Contact Length - Post	电源
Mounting Hole Diameter	带有	Contact Finish - Mating	锡
Contact Layout, Typical	2.54 [0.100]	Contact Finish Thickness	30µin (0.76µm)
Small Diameter Recovered	No	Wire Gauge or Range - mm2	0.3-0.4Â² [22]
Static Discharge Shielding	带有	Jacket (Insulation) Thickness	1.27 µm, 50 µin

Note	肋之间的条纹可能会减少	Type	IDC Connector
Gender	F	Series	MTA-100
Features	Closed End	Sealable	否
Manufacturer	AMP	Product Type	Receptacles / Sockets - Housings
Connection Type	Wire	Number of Positions Omitted	None
