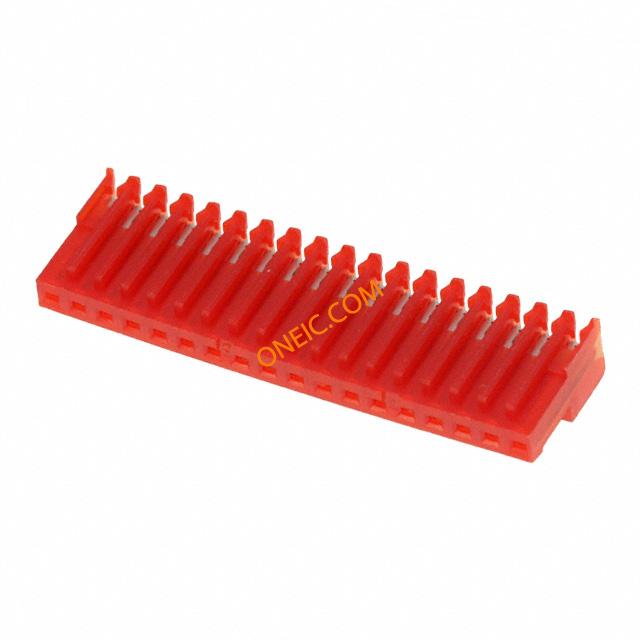

4-640440-8

Manufacturer
TE Connectivity Ltd.
Description
Conn IDC Connector F 18 POS 2.54mm IDT RA Cable Mount Loose Piece MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN PLUG 18POS 22AWG MTA100 RED Connector,ClosedEnd,18,0.100in.,22AWG Headers & Wire Housings REC 18P C/E 22AWG W/O TABS Conn IDC Connector F 18 POS 2.54mm IDT RA Cable Mount Loose Piece Product Highlights:18 PositionsWith ContactsHousing Gender = PlugContact Gender = ReceptacleConnector Style = Closed EndSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP Connector;ClosedEnd;18;0.100in.;22AWG 18P MTA100 CONN ASSY 22AWG RED
Category
连接器解决方案板对板连接器板对板连接器
对参数有疑问？问 AI 助手

商业参数

其他名称46404408零件号别名374-3251
产品类别Headers & Wire Housings标准包装数量Bulk
工厂包装数量1

合规参数

RoHSLead free / RoHS CompliantUL等级获得认可
无铅定义Not relevant for lead free processUL档案号E28476
认证机构CSA,ULCSA档案号LR7189
标准编号CSA, ULCSA认证Certified
RoHS/ELV合规状态RoHS compliant, ELV compliant材料阻燃等级UL 94V-2

电气参数

额定电压250 VAC开关功能Ramp Lock
供电电压250接触电阻6 mohm
额定交流电压250连接器阻抗IDC
最大额定电流5 A最小供电电压250VAC

机械参数

颜色Red深度6.99 mm
间距2.54 mm高度13.21 mm
长度45.72 mm [ 1.8 in ]包装方式Bulk
遮蔽类型No导线类型Discrete or Ribbon Cable
壳体颜色红色出线方向90°
电缆类型分离式导线, 绞线导线线规22 AWG
端接方式IDT触头类型Female Socket
第二连接器With外壳颜色Red
安装类型Free Hanging (In-Line)行程角度Straight
连接器类型Closed End接触镀层Tin Over Nickel
触点时序Without紧固类型Locking Ramp
安装样式Wire排数1
壳体镀层Nickel外壳材料（壳体）标准
连接器用途Receptacle插入件材料铜合金
触头材料Copper Alloy壳体材料Nylon
总长度45.72 mm安装特性Without
包装数量Loose Piece面板安装类型Without
主要材料InterconnectSystem电缆端接方式IDC
插针孔直径0.1"端接样式IDC
第一触头极性Socket (Female)配接方向Without
触点数18端接表面处理带有
接触件端接Locking Lance绝缘直径0.05"(Wire)
位数18兼容外壳尺寸（如TM-700等）MTA .100 头和 MTA .100 IDC 柱形连接器
安装孔直径不带接触件表面处理 - 配合锡
典型触点布局2.54 [0.100]表面贴装焊盘尺寸Without
接触镀层厚度80µin (2.03µm)恢复后小径No
线规或范围 - mm²0.3-0.4² [22]静电放电屏蔽带有
护套（绝缘）厚度.762 µm, 30 µin

产品信息

备注肋之间的条纹可能会减少类型IDC Connector
连接器性别F系列MTA-100
产品特性Closed End可密封否
制造商全称AMP产品子类型MTA-100 Connectors
连接类型Wire跳过的位置数None

环境参数

工作温度+105°C

Documents & Media

Online Document
4-640440-8?RQPN=4-640440-8
