5-103960-5
| Category |
对参数有疑问？问 AI 助手
Business
| Tradename | AMPMODU | Other Names | 51039605 |
| Product Category | Headers & Wire Housings | Standard Package | 36 |
| Factory Pack Quantity | 36 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | Standards | CSA LR7189, UL E28476 |
| Material Flammability Rating | UL 94V-0 | ||
Electrical
| Voltage - Supply | 267 V | Resistance - Input | 5000 |
| Connector Impedance | 刺破式压接 (IDC), 压接 | Current Rating (Max) | 3 A |
| Voltage - Protection Rating (VPR) | 600 VAC | ||
Mechanical
| Color | Black | Pitch | 2.54 mm |
| Height | 5.08 mm [ .2 in ] | Length | 60.71 mm [ 2.39 in ] |
| Lock Type | Latch | Packaging | Tube |
| Wire Type | Ribbon Cable | Body Color | 黑色 |
| Wire Gauge | 26-30 AWG | Orientation | 直 |
| Row Spacing | 2.54 mm | Termination | IDT |
| Contact Type | Female Socket | 2nd Connector | With |
| Mounting Type | Free Hanging (In-Line) | Connector Type | Receptacle |
| Contact Finish | Gold Over Nickel | Fastening Type | Latch Lock |
| Mounting Style | Wire | Number of Rows | 1 |
| Insert Material | 铜合金 | Operating Force | Standard |
| Contact Material | Phosphor Bronze | Housing Material | Thermoplastic |
| Package Quantity | 36 | Panel Mount Type | 不带 |
| Termination Rows | 压接 | Cable Termination | IDC |
| Termination Style | Crimp | 1st Contact Gender | Socket (Female) |
| Number of Contacts | 6 | Insulation Diameter | 1.37 mm [ .054 in ] |
| Number of Positions | 6 | Compatible Shell Size | 与接头配合 |
| Mounting Hole Diameter | 带有 | Contact Layout, Typical | 同轴 |
| Contact Finish Thickness | 15µin (0.38µm) | Static Discharge Shielding | 带有 |
Product Info
| Note | 带状电缆带缺口把手 22-28 AWG, 气动终结器的最大绝缘直径为 1.14 [0.045]。 | Type | IDC Connector |
| Gender | RCP | Series | AMPMODU MTE |
| Features | Closed End | Product Type | Headers |
Environmental
| Temperature - Test | 标准部件 - 非辉光导线 | Operating Temperature | - 65 C to + 105 C |
Documents & Media
Online Document
Similar Parts
5-103635-5
te connectivity / amp
$5.1122
Details
5-103950-5
te connectivity / amp
$8.4952
Details

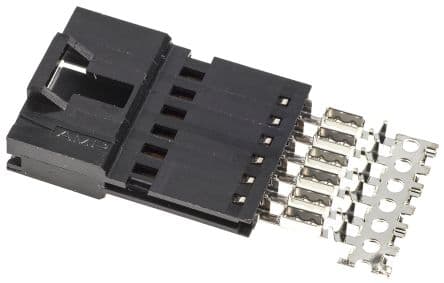

5-103948-5
te connectivity / amp
$19.1726
Details
5-103672-5
te connectivity / amp
$7.5135
Details
5-104809-5
te connectivity / amp
$6.5661
Details
5-103908-5
te connectivity / amp
$5.7120
Details
5-104363-5
te connectivity / amp
$5.9677
Details

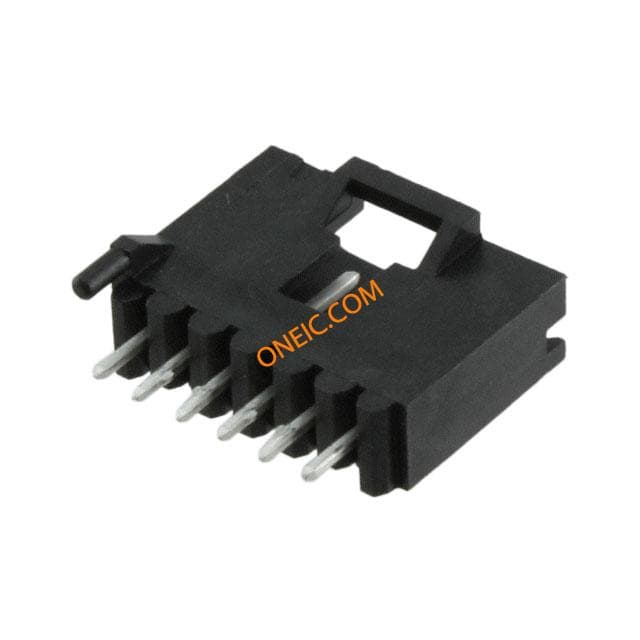

5-104450-5
