5-1634500-1
| Category |
对参数有疑问？问 AI 助手
Business
| Product | Connectors | Other Names | A116685 |
| Product Category | RF Connectors | Standard Package | Bulk |
| Factory Pack Quantity | 100 | ||
Compliance
| RoHS | RoHS Compliant | Tariff No | 85369010 |
| Rad Hardened | No | ||
Electrical
| Frequency | 0 to 4 GHz | Impedance | 50 Ohm |
| Voltage Rating | 500V | Frequency - Max | 4 GHz |
| Voltage - Working | :500V | Contact Resistance | :1.5mohm |
| Voltage - Breakdown | :1500V | Insulation Resistance | :5000Mohm |
| Impedance - Unbalanced/Balanced | :RG174 | ||
Mechanical
| Size | Standard | Depth | 13.7 mm |
| Weight | 0.01 | Packaging | Bulk |
| Cable Type | RG-174A, RG-188A, RG-316, KX22A, KX38, URM95 | Body Finish | Nickel |
| Cable Group | RG-174A, 188A, 316, KX3B, KX22A, URM-95 | Orientation | Straight |
| Termination | Crimp | Body Material | Zinc Alloy |
| Housing Color | Silver | Mounting Type | Cable Mount |
| Shell Plating | Nickel | Angle of Throw | Straight |
| Connector Type | Plug | Contact Finish | Gold Over Nickel |
| Fastening Type | Bayonet Lock | Housing Finish | Nickel |
| Mounting Style | Cable | Plating - Body | Nickel |
| Connector Style | BNC | Contact Material | Brass |
| Housing Material | Zinc | Length - Overall | 24.7 mm |
| Package Quantity | 1 | Primary Material | BNC |
| Connector - Cable | plug | Termination Style | Crimp |
| Shield Termination | Crimp | Contact Termination | Crimp |
| Dielectric Material | Polymethylpentene (PMP) | Insulation Material | Polymethylpentene |
| Material - Insulation | :Zinc | Center Contact Plating | Gold |
| Center Contact Material | Brass | Supplier Device Package | Straight |
| Contact Material - Plating | gold plated | 1st Connector Mounting Type | :Cable |
Product Info
| Spg | 1 | Type | ZDC/BNC |
| Gender | PL | Series | :- |
| Polarity | Normal | Connection Type | Coaxial Cable |
| Number of Units | 1 | RF Family/Standard | 1634500 |
Environmental
| Mating Cycles | :50 | Operating Temperature | - 55 C to + 85 C |
Documents & Media
Similar Parts
9-1478242-0
te connectivity / amp
$2220.0640
Details

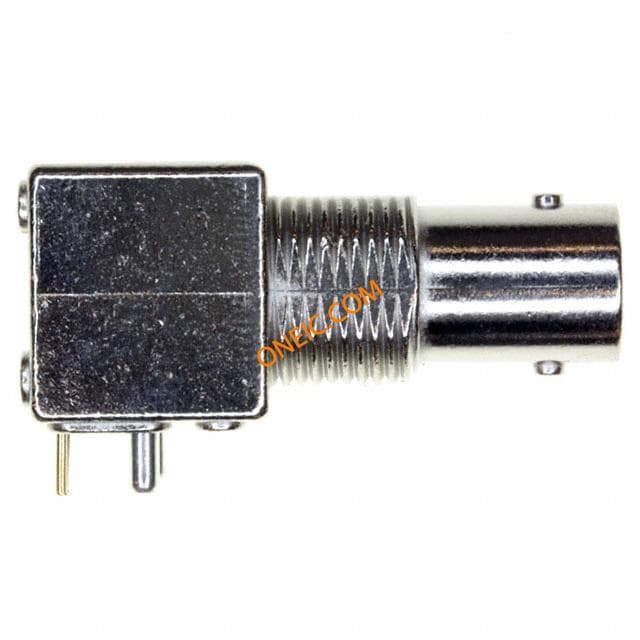

1-1337494-0
te connectivity / amp
$9.0600
Details

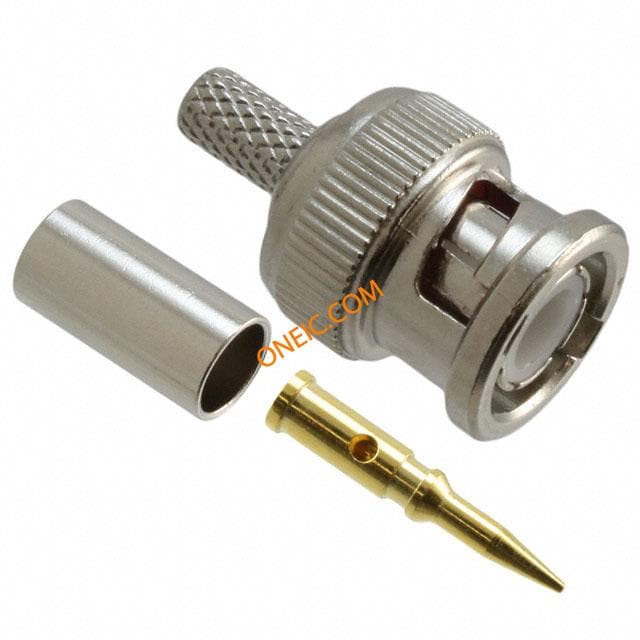

5-1634500-3
te connectivity / amp
$4.9640
Details

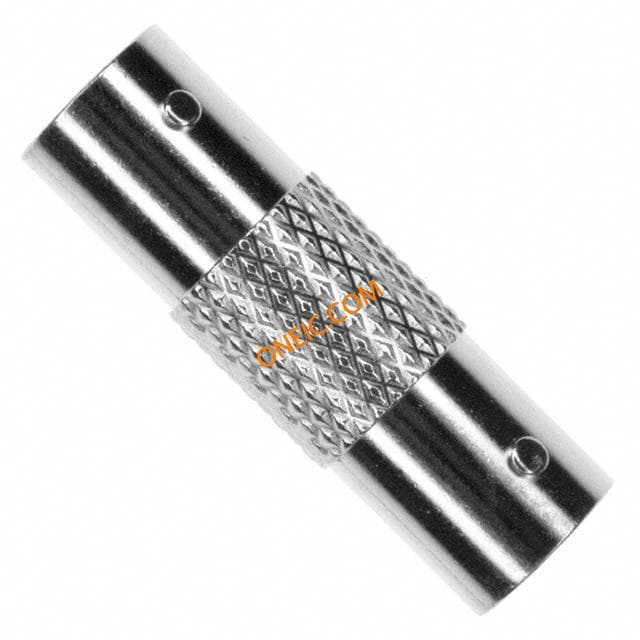

5-1634534-1
te connectivity / amp
$10.3088
Details

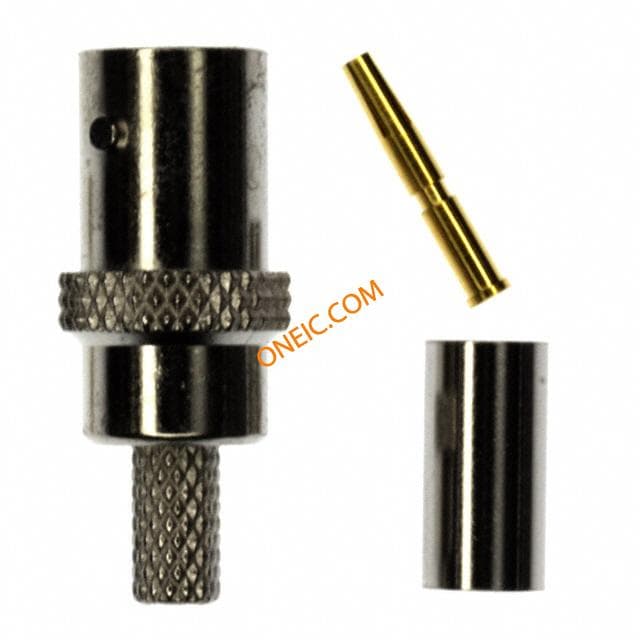

5-1634511-2
te connectivity / amp
$14.7098
Details
5-1634511-3
te connectivity / amp
$10.2816
Details

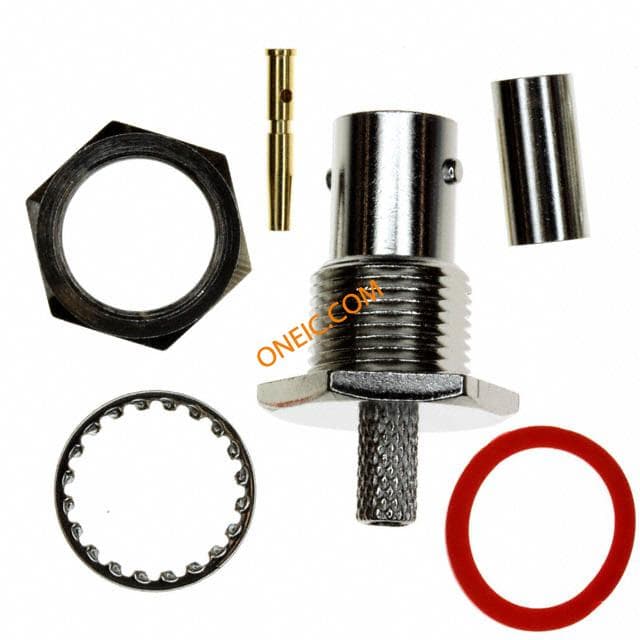

5-1634516-1
te connectivity / amp
$9.0600
Details

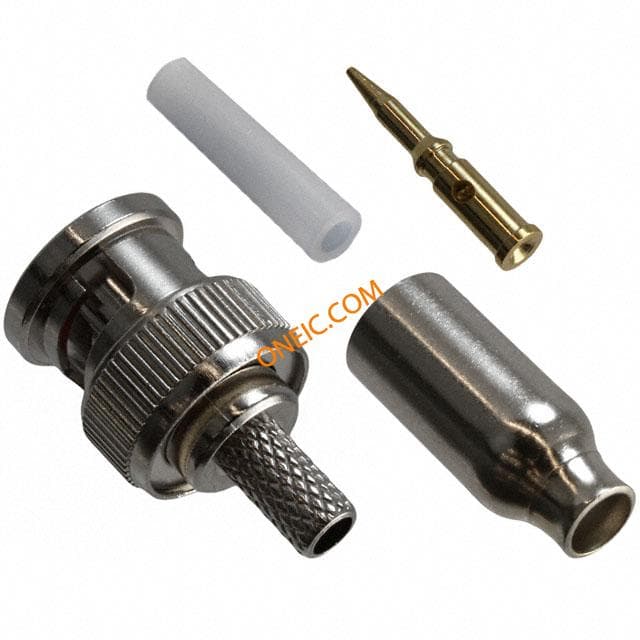

5-1634500-0
te connectivity / amp
$24.4664
Details
1-1634816-0
te connectivity / amp
$2.5160
Details

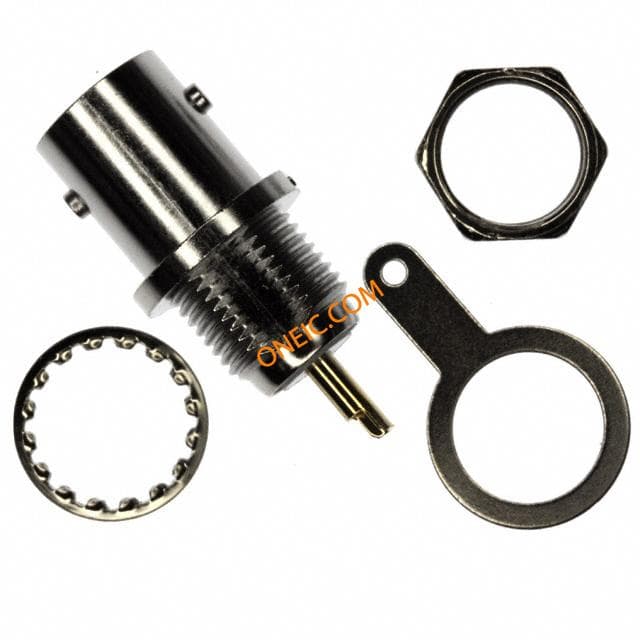

5-1634523-1
