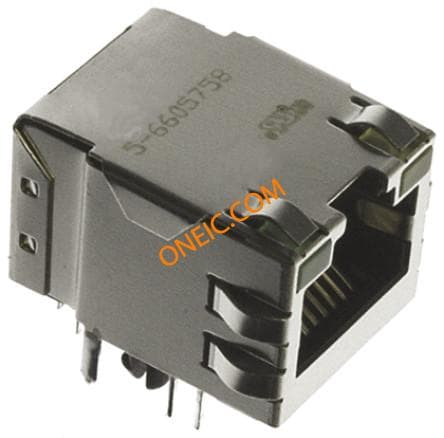

点击放大查看
5-6605308-1
| Category |
对参数有疑问？问 AI 助手
Business
| Standard Package | Bulk | ||
Compliance
| Tariff No | 85369010 | Leadfree Defin | Wave solder capable to 240°C, Wave solder capable to 260°C, Wave solder c |
| RoHSELV Compliance | RoHS compliant, ELV compliant | Material Flammability Rating | UL 94V-0 |
Electrical
| LED | With | Core Type | 326P1 |
| Impedance | 100 | Signal Types | NIC |
| Voltage Rating | :150V | Capacitance @ Vr, F | 2KV |
| Number of Conductors | 8 | Turns Ratio - Primary:Secondary | 1:1 |
Mechanical
| Pitch | 2.54 mm | Weight | 0.01 |
| Material | :Thermoplastic Polyester | LED Color | Green - 250 ohm resistor |
| Orientation | Standard - Latch Down | Shield Type | Yes |
| Termination | Solder | Mounting Type | Through Hole |
| Shell Plating | Semi-Bright Nickel (Pre-plated) | Connector Type | Without |
| Contact Finish | :Gold | Mounting Style | Thru Hole |
| Plating - Body | :Semi-Bright Nickel | Shield Material | Brass |
| Contact Material | :Phosphor Bronze | Housing Material | Thermoplastic Polyester (PET) |
| Bottom Termination | With | Number of Contacts | 8 |
| Shield Termination | With | Contact Termination | :Through Hole Right Angle |
| Insulation Material | Without | Number of Positions | :8 |
Product Info
| Type | RJ-45 Integrated Magnetics | Gender | F |
| Series | :N | Manufacturer | Tyco Electronics |
| Number of Ports | :1 | Jack Configuration | 1 x 1 |
Environmental
| Temperature Rating | Office / Premises (0 ºC to +70 ºC) | Operating Temperature | :85°C |
