5352345-1
| Manufacturer | |
| Description | Conn Hard Metric F 125 POS 2mm Press Fit RA Thru-Hole 2mm Hard Metric PCB Mount Connectors (Z-PACK 2mm HM) CONN RECEPT 125POS TYPE B R/A Hard Metric Connectors Z-PACK/B25 RAF 125P 2mm Hard Metric PCB Mount Connectors (Z-PACK 2mm HM) Product Highlights:ConnectorConnector Type = Type B, 25 ColumnReceptacleInterface Type = 2mm HMContact Type = ACTION PIN Post, SignalSearch Keywords:IEC 1076-4-101, IEC 917, high speed, board to board, open pin field, hybrid power, IEC 1076-4-101, IEC950, CPCI, DIN 43355, TR-NWT-001217, mid-plane, DIN 41626, mezzanine, high density, co-planar, horizontal, Z-PACK/B25 RAF 125P |
| Category |
Business
| Standard Pack | 11 | Standard Package | Rail / Tube |
Compliance
| RoHS | Lead free / RoHS Compliant | Leadfree Defin | Not relevant for lead free process |
| RoHSELV Compliance | RoHS compliant, ELV compliant | Material Flammability Rating | UL 94V-0 |
Electrical
| Crosstalk | Reduced | Interface | 2mm HM |
| Voltage Rating | 500V | Data Rate (Max) | ≤1 |
| Attenuation - Typ | 标准 | Current Rating (Max) | 1.5A |
Mechanical
| Pitch | 2 mm | Length | 50 |
| Packaging | Tube | Shielding | 是 |
| Body Color | 灰色 | Shield Type | Ground Return Shielding |
| Termination | Press Fit | Contact Type | Short Tail |
| Holding Type | 是 | Polarization | Multi-Purpose Center |
| Housing Color | Gray | Mounting Type | Through Hole |
| Shell Plating | Gold Flash over Nickel | Connector Type | Type B, 25 Column |
| Contact Finish | Gold Over Nickel | Number of Rows | 5 |
| Connector Style | B 25 | Connector Usage | Backplane |
| Insert Material | 磷青铜 | Shield Material | Phosphor bronze |
| Contact Material | Phosphor Bronze | Housing Material | Polyester GF |
| Length - Overall | 50.00 [1.968] | Package Quantity | 11 |
| Panel Mount Type | 直角 | Termination Style | 插针 |
| Mating Orientation | With | Number of Contacts | 125 |
| Termination Finish | Tin over Nickel | Number of Positions | 125 |
| Length - Post (Mating) | 3.71 [0.146] | Contact Layout, Typical | ACTION PIN, Signal |
| Termination Post Length | 3.7 | Contact Finish Thickness | 30µin (0.76µm) |
Product Info
| Type | Hard Metric | Gender | Receptacle |
| Features | Upper Shield | Manufacturer | AMP |
| Product Type | Connector | Module/Board Type | Yes |
| Number of Columns | 25 | Number of Positions Loaded | All |
Environmental
| Operating Temperature | -55°C ~ 125°C | ||
Documents & Media
Similar Parts

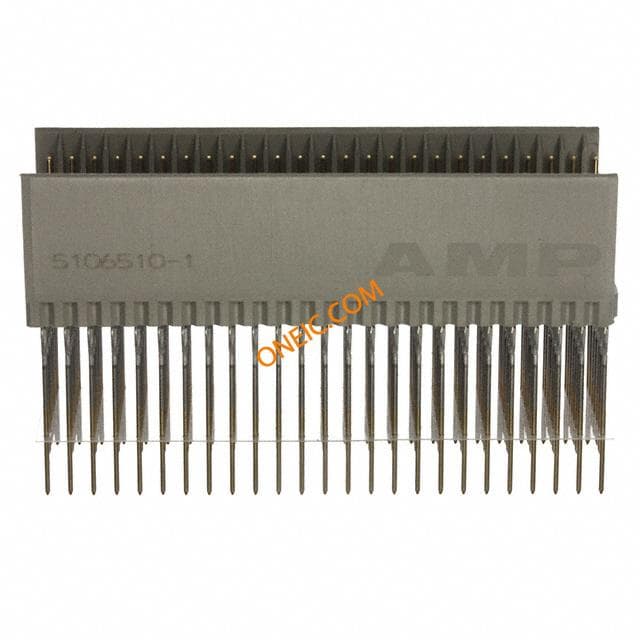

5106510-1
