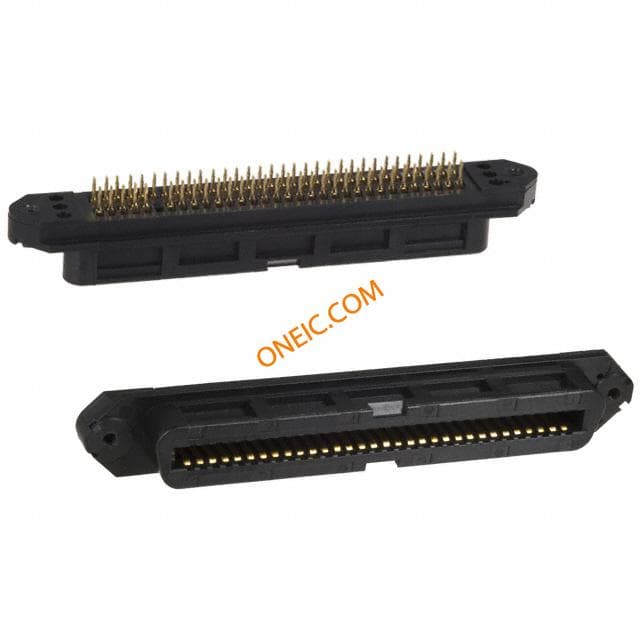

5406049-1
| Category |
对参数有疑问？问 AI 助手
Business
| Lead Time | 126 Days | Other Names | 54060491 |
| Subcategory | Connector Interface | Standard Package | Bulk |
Compliance
| RoHS | Lead free / RoHS Compliant | ||
Electrical
| Input | .45 – .55 | Connector Impedance | 螺纹插针，4-40 UNC, 螺纹插针，4-40 UNC |
Mechanical
| Color | 黑色 | Pitch | 2.16 mm |
| Packaging | Loose Piece | Shielding | 是 |
| Cable Type | 分离式导线, 环状护套电缆 | Wire Gauge | .029 – .045 |
| Termination | IDC | Shell Finish | 带有 |
| 2nd Connector | With | Mounting Type | Cable Mount |
| Connector Type | Plug | Contact Finish | Gold |
| Flange Feature | Insert, Threaded (4-40) | Mounting Style | 标准 |
| Number of Rows | 2 | Shell Material | ABS 模塑化合物 |
| Connector Style | Center Strip Contacts | Insert Material | 磷青铜 |
| Shield Material | 钢 | Housing Material | 聚苯醚 |
| Package Quantity | 1 | Panel Mount Type | 不带 |
| Wire Gauge - Ends | 24 | Number of Positions | 64 |
| Shell Material, Finish | 蓝色 | Contact Finish Thickness | 30µin (0.76µm) |
| Wire Gauge or Range - AWG | 26 – 24 | Wire Gauge or Range - mm2 | .13 – .32 |
Product Info
| Type | IEEE 488 | Gender | PL |
| Features | Assembly Kit, Backshell, Shielded | Kit Type | 连接器套件 |
| Product Type | 连接器 | ||
Documents & Media
Online Document
Sourcing & traceability
- Datasheet
- 5406049-1
Lot-level traceability (date code, original factory packaging) is confirmed on every quote and shipment.
