Business
| Lead Time | 168 Days | Subcategory | Connector Interface |
| Product Category | Connectors | Standard Package | Bulk |
Compliance
| RoHS | Lead free / RoHS Compliant | Leadfree Defin | Not relevant for lead free process |
| RoHSELV Compliance | RoHS compliant, ELV compliant | ||
Electrical
| Connector Impedance | 释放锁 | ||
Mechanical
| Color | Black | Pitch | 2.16 mm [ .085 in ] |
| Packaging | Bag | Shielding | 是 |
| Cable Exit | 180° | Cable Type | 7 Strand, Solid |
| Copper Type | B | Shield Type | Yes |
| Termination | IDC | Shell Finish | Bright |
| 2nd Connector | With | Mounting Type | Free Hanging (In-Line) |
| Shell Plating | Bright Nickel | Connector Type | Plug |
| Contact Finish | Gold over Nickel | Mounting Style | 标准 |
| Number of Rows | 2 | Connector Style | Center Strip Contacts |
| Insert Material | 铜合金 | Locking Feature | Bail Lock |
| Profile (W x H) | Standard | Shield Material | Carbon Steel |
| Contact Material | Copper Alloy | Housing Material | Thermoplastic |
| Package Quantity | Individual Kit | Panel Mount Type | Without |
| Wire Gauge - Ends | 26 – 24 | Insulation Diameter | 1.14 mm [ .045 in ] |
| Number of Positions | 36 | Contact Finish Thickness | 30µin (0.76µm) |
| Wire Gauge or Range - AWG | 26 – 24 | Wire Gauge or Range - mm2 | 0.20² [24] |
| Outside Cable Diameter (Max) | 6.35 – 12.7 mm [ .25 – .5 in ] | Outside Cable Diameter (Min) | 6.35 â 12.70 [0.250 â 0.500] |
Product Info
| Type | Connector Kit | Gender | Plug |
| Features | Bail Lock, Shielded | Kit Type | Connector Kit |
| Product Type | Connector Kit | RF Family/Standard | 554950-2 |
Environmental
| Protection Range | Without | ||
Documents & Media
Online Document
Similar Parts
230238-1
te connectivity / amp
$1690.2760
Details
5553815-3
te connectivity / amp
$46.7500
Details
555119-1
te connectivity / amp
$88.4000
Details
5555233-1
te connectivity / amp
$163.2000
Details
5554346-2
te connectivity / amp
$75.3440
Details
229378-1
te connectivity / amp
$14407.9080
Details
229384-1
te connectivity / amp
$258.6720
Details

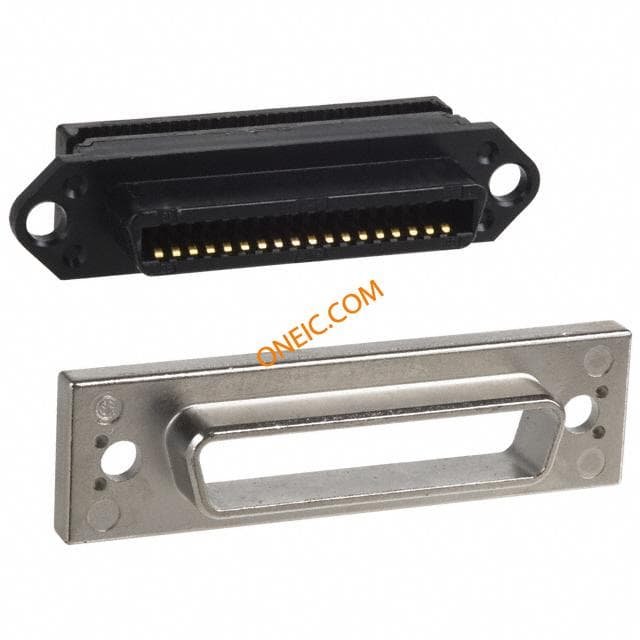

5554348-1
te connectivity / amp
$86.7888
Details

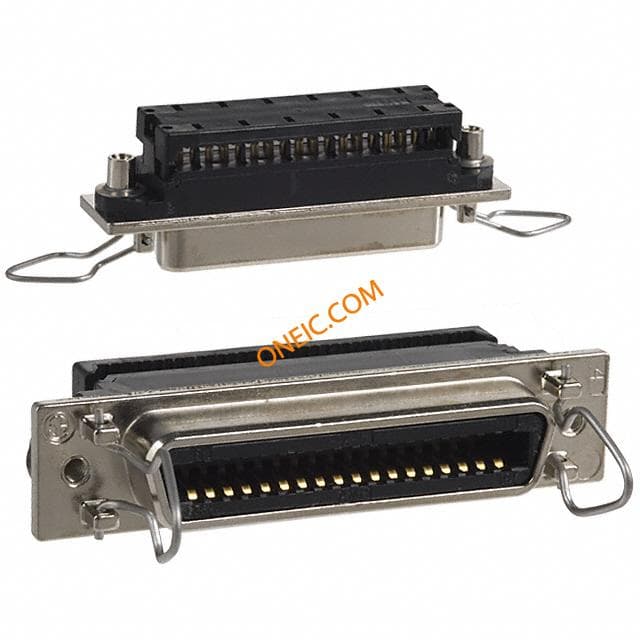

5555983-1
