点击放大查看

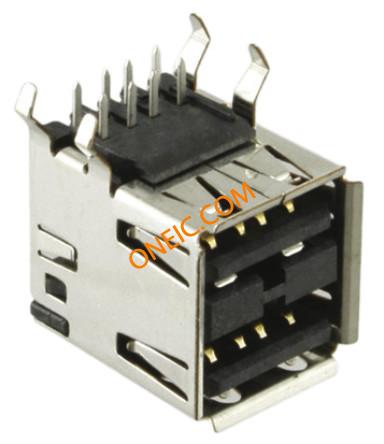

5787745-4
| Manufacturer | |
| Description | Conn USB RCP/RCP 4/4 POS Solder RA Thru-Hole 8 Terminal 2 Port Tray USB Connectors A R/A STACK T/H Universal Serial Bus (USB) Connectors CONN RCPT USB 4POS 2PORT R/A Connector pcb USB A 2.0 4 way stacked Conn USB RCP/RCP 4/4 POS Solder RA Thru-Hole 8 Terminal 2 Port Tray Product Highlights:Size = StandardA SeriesReceptacleWithout Locking Feature2 PortsSearch Keywords:plug and play, hot pluggable, USB 1.0, USB 2.0, USB 3.0, data bus, Universal Serial Bus, IEEE 1394 Serial Bus, box to box, USB, micro, locking, lock, A-RJ45, A-RCA Jack, micro usb, mini usb ConnectorpcbUSBA2.04waystacked TE Connectivity 2 端口 A 型 USB 2.0 直角 插座, 通孔 USB A R/A STAK ASSY THRU HOLE |
| Category |
商业参数
| 产品 | USB Type A Connectors | 产品类别 | USB Connectors |
| 标准包装数量 | Bulk | 工厂包装数量 | 1 |
合规参数
| RoHS | RoHS Compliant | 无铅定义 | Wave solder capable to 240°C, Wave solder capable to 260°C, Wave solder c |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | ||
电气参数
| LED | 不带 | 供电电压 | USB |
| 绝缘电阻 | 1000 MOhms | ||
机械参数
| 尺寸 | Standard | 颜色 | Black |
| 镀层 | None | 包装方式 | Tray |
| 尾部类型 | 2.85 [0.112] | 壳体颜色 | 黑色 |
| 方向 | Right Angle | 端接方式 | Solder |
| 外壳表面处理 | 锡 | 外壳颜色 | Black |
| 安装类型 | Through Hole | 外壳镀层 | Bright Tin over Nickel |
| 连接器类型 | USB Type A Receptacle | 接触镀层 | Gold |
| 安装样式 | Through Hole | 电路板厚度 | 1.57 [0.062] |
| 锁定特性 | Without | 触头材料 | Copper Alloy |
| 壳体材料 | 热塑性塑料 | 安装特性 | 扭结支脚 |
| 包装数量 | Tray | 尺寸/外形 | 标准 |
| 端接排数 | Without | 端接样式 | Solder |
| 触点数 | 4/4 | 面板开孔形状 | Center |
| 接触件端接 | Through Hole | 位数 | 4 |
| 触头长度-柱 | 2.84 mm [ .112 in ] | 表面贴装焊盘尺寸 | Without |
| 配合面镀层厚度 | 30 Microinches | 行业认可的配合直径 | USB 2.0 |
产品信息
| USB | 2.0 | 类型 | USB |
| 连接器性别 | RCP/RCP | 系列 | A |
| 产品特性 | Board Lock | 方向 | 直角 |
| 产品子类型 | 连接器 | 规格说明 | USB 2.0 |
| 连接类型 | Printed Circuit Board | 端口数 | 2 |
| 输入数量及类型 | 2 | ||
环境参数
| 工作温度 | - 55 C to + 85 C | 封装热阻 | 1.57 mm [ .062 in ] |
