6-104069-3
| Manufacturer | |
| Description | Conn Shrouded Header HDR 26 POS 1.27mm Solder RA Thru-Hole Tube .050 X .100 AMPMODU System 50 CONN HEADER R/A 26POS T/H 30GOLD TE Connectivity AMPMODU Series 1.27, 2.54mm Pitch 26 Way 2 Row Right Angle PCB Header, Solder Termination, 1A Headers & Wire Housings 050X100 HDR 2X13P R/A T/H Conn Shrouded Header HDR 26 POS 1.27mm Solder RA Thru-Hole Tube Product Highlights:HeaderConnector Style = Plug26 PositionsNumber of Rows = DualShroudedSearch Keywords:wire to wire, wire to board, IDC, latching, high density, co-planar, horizontal, pcb connectors, AMPMODU Header26waypin2.54mmAmpModu TE Connectivity AMPMODU System 50 系列 1.27 mm, 2.54 mm节距 26路 (2排) 直角 PCB 针座, 焊接端接, 1A , 通孔 26 sys 50 hdr drra shrd sn |
| Category |
Business
| Tradename | AMPMODU | Product Category | Headers & Wire Housings |
| Standard Package | Rail / Tube | Factory Pack Quantity | 22 |
Compliance
| RoHS | Lead free / RoHS Compliant | Standards | CSA LR7189, UL E28476 |
| Leadfree Defin | Wave solder capable to 240°C, Wave solder capable to 260°C, Wave solder c | RoHSELV Compliance | RoHS compliant, ELV compliant |
| Material Flammability Rating | UL 94V-0 | ||
Electrical
| Voltage Rating | 30 V ac | Voltage - Supply | 30 |
| Voltage - Rated AC | 30 | Connector Impedance | 制动器闭锁 |
| Voltage - Breakdown | 500 | Current Rating (Max) | 1A |
| Insulation Resistance | 5,000 | Voltage - Supply (Min) | 30VAC |
| Voltage - Protection Rating (VPR) | 500 V | ||
Mechanical
| Color | Black | Depth | 13.72 mm |
| Pitch | 1.27 mm | Height | 8.89 mm |
| Base Type | 带有 | Packaging | Tube |
| Shrouding | Yes | Body Color | 黑色 |
| Lead Style | 圆形 | Orientation | 直角 |
| Row Spacing | 0.100" (2.54mm) | Stabilizers | Without |
| Termination | Solder | Lead Spacing | 0.100" (2.54mm) |
| 2nd Connector | With | Housing Color | Black |
| Mounting Type | Right Angle | Connector Type | Shrouded |
| Contact Finish | Gold Over Nickel | Mounting Style | Thru Hole |
| Number of Rows | 2 | Shell Material | 2- 面 |
| Height (Inches) | 0.350" (8.89mm) | Insert Material | 铜合金 |
| Contact Material | Phosphor Bronze | Housing Material | Thermoplastic |
| Length - Overall | 22.86 mm | Mounting Feature | 压具柱体 |
| Package Quantity | Tube | Panel Mount Type | 通孔 |
| Termination Rows | 焊接 | Termination Style | Through Hole |
| Diameter - Outside | .381 mm [ .015 in ] | Height Above Board | 0.125" (3.18mm) |
| Number of Contacts | 26 | Termination Finish | 带罩 |
| Number of Positions | 26 | Contact Length - Post | 0.350" (8.89mm) |
| Mounting Hole Diameter | 带有 | Contact Length - Mating | 0.125" (3.18mm) |
| Termination Post Length | 2.54 [0.100] | Contact Finish Thickness | 30µin (0.76µm) |
| Static Discharge Shielding | 不带 | Number of Positions/Bay/Row | All |
| Termination Finish Thickness | 150 – 250 | ||
Product Info
| Note | Note 1: Hold down posts located as shown for 16 through 100 position headers.; | Type | Shrouded Header |
| Gender | HDR | Series | AMPMODU |
| Coverage | 覆盖 | Key Type | 否 |
| Manufacturer | AMP | Product Type | Header Assembly |
| Selectively Loaded | No | Output Configuration | Through Hole, Right Angle |
| Number of Positions Loaded | All | ||
Environmental
| Seal Rating | 不带 | Temperature Range | -65 â +105 |
| Operating Temperature | -65C to 105C | Thermal Resistance of Package | 1.397 mm [ .055 in ] |
Documents & Media
Similar Parts
2-487938-6
te connectivity / amp
Conn Housing RCP 26 POS 1.27mm Crimp ST Cable Mount .050 X .100 AMPMODU System 50 CONN RECEPT 26POS .050 DUAL ROW

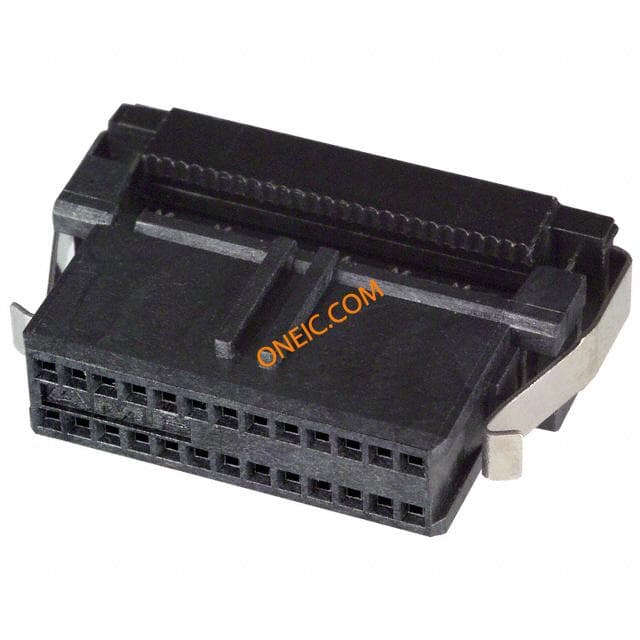

111196-6
