6469025-1
| Manufacturer | |
| Description | Conn High Speed HDR 40 POS 2.5mm Press Fit ST Thru-Hole Z-PACK HM-Zd Connectors, Cable Assemblies and Accessories CONN HEADER 40POS 2PAIR HM-ZD TE Connectivity Z-PACK Series 2.5mm Pitch 40 Way 4 Row Straight Backplane Connector, Press-In Termination, 7A Hard Metric Connectors HM-ZD 2PR 40P HDR ASSY Conn High Speed HDR 40 POS 2.5mm Press Fit ST Thru-Hole Product Highlights:HeaderConnector Type = 10 ColumnInterface Type = HM-ZdContact Type = ACTION PIN PostFeedthrough Post Length = 2.50 mmSearch Keywords:board to board, high speed, hard metric, Z-PACK, mezzanine board, coplanar board, mid-plane board, Telcordia, parallel, stacking, horizontal, two piece, hmzd, HM-zD, HM-ZD, hm-zd HEADER, 2.5MM, 40WAY HMZDPINHDR2PR,HM-ZD2PRHDR40P5.2MM Z-PACK 40 Position Through Hole Press Fit Vertical Pin Header TE Connectivity Z-PACK HM-Zd 系列 2.5mm 节距 40 路 直向 4 排 背板连接器, 按式端子, 0.7A HM-ZD 2PR HDR 40P 2.5MM |
| Category |
Business
| Other Names | 64690251 | Product Category | Hard Metric Connectors |
| Standard Package | Rail / Tube | Factory Pack Quantity | 20 |
Compliance
| RoHS | Lead free / RoHS Compliant | Tariff No | 85366930 |
| Leadfree Defin | Not relevant for lead free process | RoHSELV Compliance | RoHS compliant, ELV compliant |
| Material Flammability Rating | UL94 V-0 | ||
Electrical
| Interface | HM-Zd | Voltage Rating | 250V |
| Contact Resistance | 20 mohm | Current Rating (Max) | 0.700A |
| Voltage - Supply (Min) | 250VAC | ||
Mechanical
| Depth | 15.43 mm | Pitch | 2.5 mm |
| Height | 13.4 mm | Weight | 0.0041 |
| Packaging | Tube | Termination | Press Fit |
| Contact Type | ACTION PIN Post | Pitch - Post | :1.5mm |
| Mounting Type | Through Hole | Pitch - Cable | 20.3 [0.8] |
| Connector Type | Header, Male Pins and Blades | Contact Finish | Gold Over Nickel |
| Mounting Style | Through Hole | Number of Rows | 4 |
| Connector Style | High Speed | Connector Usage | Backplane |
| Shield Material | Phosphor bronze | Contact Material | Phosphor Bronze |
| Housing Material | Polyester GF | Length - Overall | 24.90 [0.980] |
| Termination Style | Press Fit | Color - Connectors | 20 |
| Number of Contacts | 40 | Termination Finish | Tin over Nickel |
| Contact Termination | :Press Fit Vertical | Number of Positions | 40 |
| Length - Post (Mating) | 2.50 [0.098] | Contact Layout, Typical | 40 Signal, 20 Ground |
| Contact Length - Mating | 5.30 [0.209] | Contact Finish Thickness | 30µin (0.76µm) |
Product Info
| Type | High Speed | Gender | HDR |
| Series | Z-PACK | w/Sequencer | No |
| Manufacturer | AMP | Product Type | Header |
| Number of Columns | 10 | Selectively Loaded | No |
| Number of Positions Loaded | All | Number of Positions (Convert From) | 10 |
Environmental
| Operating Temperature | -65°C ~ 105°C | ||
Documents & Media
Similar Parts

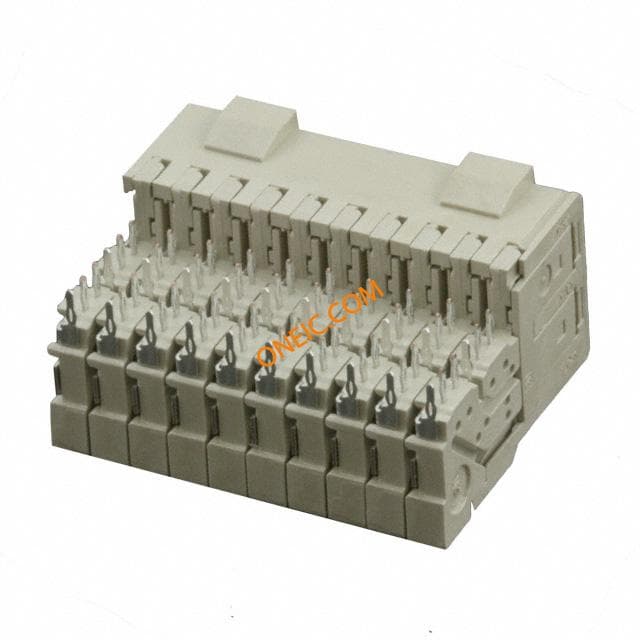

6469028-1
te connectivity / amp
Conn Hard Metric RCP 40 POS 2.5mm Press Fit RA Thru-Hole Z-PACK HM-Zd Connectors, Cable Assemblies and Accessories CONN RCPT 40POS DUAL R/A HM-ZD Hard Metric Connectors REC 4X010P R/A B-PLANE HMZD Conn Hard Metric RCP 40 POS 2.5mm Press Fit RA Thru-Hole Product Highlights:ReceptacleConnector Type = 10 ColumnInterface Type = HM-ZdContact Type = ACTION PIN PostFeedthrough Post Length = 2.20 mmSearch Keywords:board to board, high speed, hard metric, Z-PACK, mezzanine board, coplanar board, mid-plane board, Telcordia, parallel, stacking, horizontal, two piece, hmzd, HM-zD, HM-ZD, hm-zd CONNECTOR, FEMALE, 40WAY HEADER,HM-ZD,40POS,10COLUMN,ACTIONPINPOST,2.20MM,PCB 40 Position 2.5 mm Receptacle Right Angle Through Hole Z-PACK HM-Zd Connector TE Connectivity Z-PACK HM-Zd 系列 2.5mm 节距 40 路 直角 4 排 母 背板连接器, 按式端子, 7A HM-ZD 2PR RECP 40P
1469028-1
te connectivity / amp
Conn Backplane RCP 40 POS 2.5mm Press Fit RA Thru-Hole Z-PACK HM-Zd Connectors, Cable Assemblies and Accessories CONN RCPT 40POS 2ROW RT ANG T/H Connector,HM Zd,recpt,90 deg,40 Way Conn Backplane RCP 40 POS 2.5mm Press Fit RA Thru-Hole Product Highlights:ReceptacleConnector Type = 10 ColumnInterface Type = HM-ZdContact Type = ACTION PIN PostFeedthrough Post Length = 2.20 mmSearch Keywords:board to board, high speed, hard metric, Z-PACK, mezzanine board, coplanar board, mid-plane board, Telcordia, parallel, stacking, horizontal, two piece, hmzd, HM-zD, HM-ZD, hm-zd HEADER,HM-ZD,40POS,10COLUMN,ACTIONPINPOST,2.20MM,PCB 40 Position Receptacle Solder Right Angle Mount Z-Pack Hard Metric Connector TE Connectivity Z-PACK HM-Zd 系列 2.5mm 节距 40 路 直角 4 排 母 背板连接器, 按式端子 HM-ZD 2PR RECP 40P

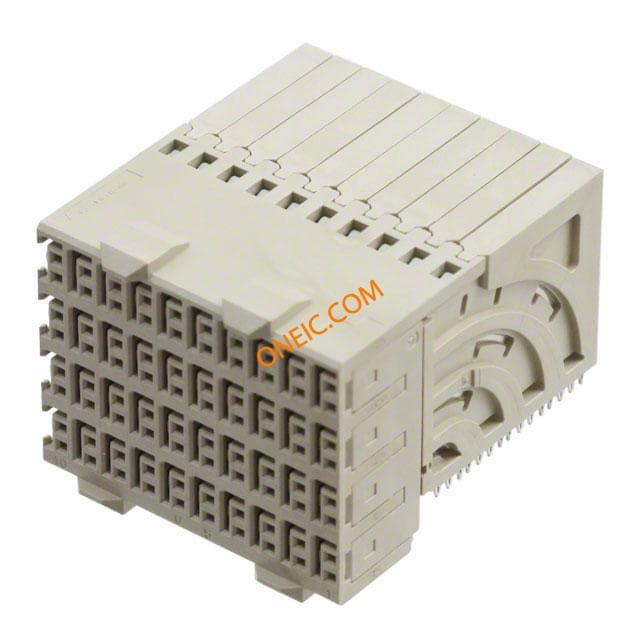

2065657-1
te connectivity / amp
Conn Hard Metric F 80 POS 2.5mm Press Fit RA Thru-Hole CONN RCPT 80POS 8ROW RT ANG HM-Z Connector pcb 80 way press fit Z-Pack Hard Metric Connectors ZD PLUS 4PR 80P RCPT ASSY CONNECTOR, BACKPLANE, HM-ZD PLUS, RCPT, 80POS RECEPTACLE, HM-ZD PLUS, R/A, 80WAY Connectorpcb80waypressfitZ-Pack 80 Position Z-Pack HM-Zd Plus 4 Pair Press Fit Receptacle Assembly zd Plus, 4 pair, receptacle assy

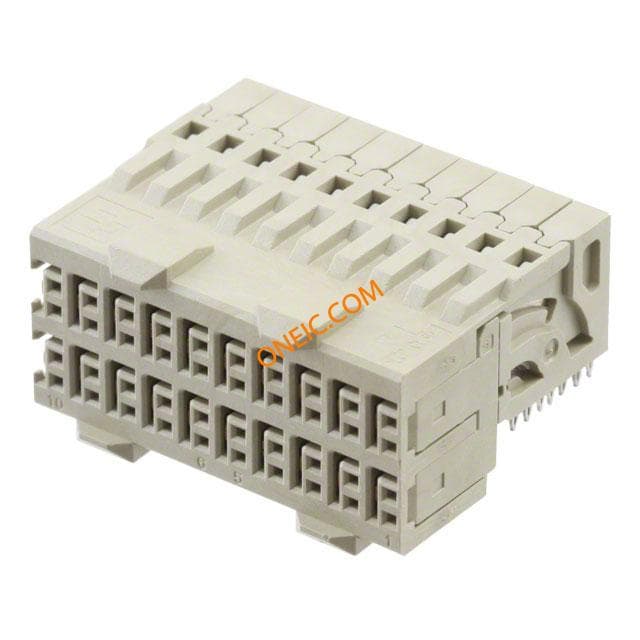

2065769-1
