647845-5
| Manufacturer | |
| Description | Conn Battery RCP 2 POS ST Cable Mount 1 Terminal 1 Port Bulk Power Connectors CONN HOUSING 2POS BLUE Heavy Duty Power Connectors SERIES 50 HSG BLUE Conn Battery RCP 2 POS ST Cable Mount 1 Terminal 1 Port Bulk Product Highlights:Housing50 AMP SeriesConnector Type = 2-Pole Battery ConnectorCurrent = 50 Amps.Housing Color = BlueSearch Keywords:Power Wiring Devices, Battery Connectors & Battery Assemblies, Anderson plug, Anderson connectors, Anderson power, Anderson APP, Anderson powerpole, Power Series, FPR, Finger Probe Resistant SERIES 50 HOUSING,BLUE |
| Category |
Business
| Product Category | Heavy Duty Power Connectors | Standard Package | Bag |
| Factory Pack Quantity | 175 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | ||
Electrical
| Voltage Rating | 600 V | Current Rating (Max) | 50 A |
| Voltage - Supply (Min) | 600VDC/600VAC | ||
Mechanical
| Color | Blue | Height | 15.88 mm |
| Packaging | Bulk | Termination | Solder |
| Contact Type | Non Gendered | Mounting Type | Cable Mount |
| Connector Type | Non Gendered | Contact Finish | Silver |
| Fastening Type | Spring Retention | Mounting Style | Cable |
| Number of Rows | 1 | Insertion Force | Female / Male |
| Contact Material | Copper | Housing Material | Polycarbonate (PC) |
| Length - Overall | 35.05 mm | Termination Style | Crimp |
| Number of Contacts | 2 | Stacking Direction | Side to Side |
| Contact Termination | Crimp | Number of Positions | 2 |
| Material - Insulation | Polycarbonate (PC) | Wire Gauge or Range - AWG | 12-6 |
Product Info
| Note | Contacts Not Provided | Type | Battery |
| Gender | RCP | Series | 50 |
| Product Type | Connectors | Number of Ports | 1 Port |
Environmental
| Operating Temperature | -20C to 105C | Operating Temperature - Junction | 105C |
Documents & Media
Similar Parts
647892-5
te connectivity / amp
Conn Power F 2 POS Solder ST Thru-Hole 2 Terminal 1 Port Bag Power Connectors CONN PLUG 2POS 6AWG SILVER CRIMP Heavy Duty Power Connectors SERIES 50 CONN 6 AWG BLUE Conn Power F 2 POS Solder ST Thru-Hole 2 Terminal 1 Port Bag Product Highlights:Connector Kit50 AMP SeriesConnector Type = 2-Pole Battery ConnectorWire Size (AWG/CM) = 6 AWGCurrent = 50 Amps.Search Keywords:Power Wiring Devices, Battery Connectors & Battery Assemblies, Anderson plug, Anderson connectors, Anderson power, Anderson APP, Anderson powerpole, Power Series, FPR, Finger Probe Resistant SRS 50 CONN KIT,BLUE,6 AWG

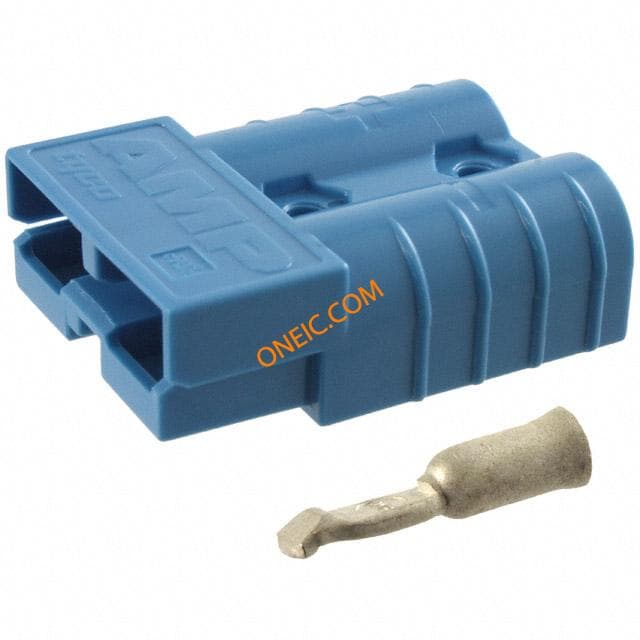

647893-5
te connectivity / amp
Connector Accessories Kit And Spring Subassembly Power Connectors CONN PLUG 2POS 10-12 AWG SILVER Heavy Duty Power Connectors SERIES 50 CONN 10-12 AWG BLUE Connector Accessories Kit And Spring Subassembly Product Highlights:Connector Kit50 AMP SeriesConnector Type = 2-Pole Battery ConnectorWire Size (AWG/CM) = 10-12 AWGCurrent = 50 Amps.Search Keywords:Power Wiring Devices, Battery Connectors & Battery Assemblies, Anderson plug, Anderson connectors, Anderson power, Anderson APP, Anderson powerpole, Power Series, FPR, Finger Probe Resistant CONNECTOR KIT, BLUE HOUSING, 2POS, 10-12 AWG CONTACT SRS 50 CONN KIT,BLUE,10-12AWG
1604433-1
te connectivity / amp
Contact PIN Crimp ST Cable Mount Loose Piece Power Connectors CONN TERM NON GENDERED 6-8AWG Jones Plugs & Sockets 50 SERIES CONTACT 10000 Power Connectors Product Highlights:Contact50 AMP Series, 75 AMP SeriesWire Size (AWG/CM) = 6-10 AWGCurrent = 50 Amps., 75 Amps.Wire Insulation Diameter, Max. = 11.18 mmSearch Keywords:Power Wiring Devices, Battery Connectors & Battery Assemblies, Anderson plug, Anderson connectors, Anderson power, Anderson APP, Anderson powerpole, Power Series, FPR, Finger Probe Resistant
1604433-2
te connectivity / amp
Contact PIN Crimp ST Cable Mount Loose Piece Power Connectors CONN TERM NON GENDERED 10-12AWG Jones Plugs & Sockets 50 SERIES CONTACT 10500 50 SER STMP&FORM CONT 10-12AWG 50 SER STMP&FORM CONT 10-12AWG Search Keywords:Power Wiring Devices, Battery Connectors & Battery Assemblies, Anderson plug, Anderson connectors, Anderson power, Anderson APP, Anderson powerpole, Power Series, FPR, Finger Probe Resistant TERM BLADE NON-GENDR 10-12AWG
