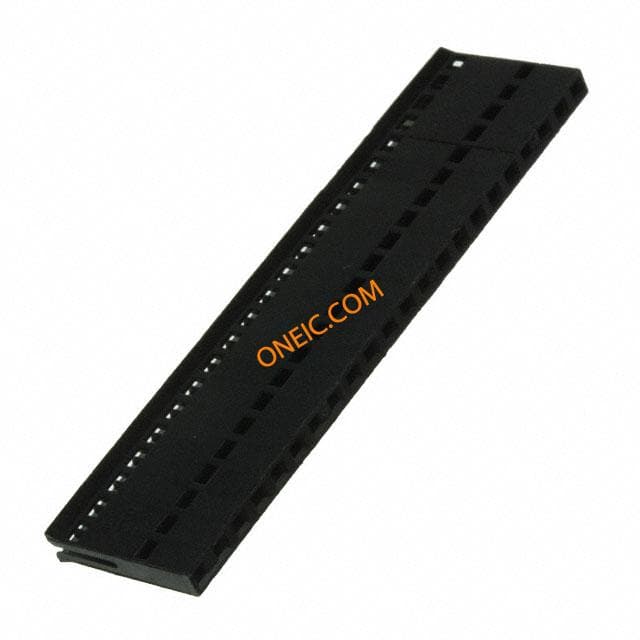

点击放大查看

7-103639-1

Business

Tradename	AMPMODU	Standard Pack	9
Standard Package	Bulk	Factory Pack Quantity	36

RoHS	Lead free / RoHS Compliant	Leadfree Defin	Wave solder capable to 240Â°C, Wave solder capable to 260Â°C, Wave solder c
RoHSELV Compliance	RoHS compliant, ELV compliant	Material Flammability Rating	UL 94V-0

Switch Function	Latched	Connector Impedance	刺破式压接 (IDC), 压接
Current Rating (Max)	3

Color	Black	Pitch	2.54 mm
Height	13.59 mm [ .535 in ]	Packaging	Tube
Body Color	黑色	Lead Style	直角
Row Spacing	2.54 mm	Termination	Solder
Contact Type	Male Pin	Pitch - Post	2.54 [.100]
Polarization	Latched	Contact Shape	Square
Housing Color	Black	Mounting Type	Vertical
Connector Type	Crimp, Insulation Displacement Crimp (IDC)	Contact Finish	Tin Over Nickel
Contact Timing	Without	Mounting Style	Thru Hole
Number of Rows	1	Plating - Body	Tin
Insert Material	黄铜	Contact Material	Brass
Housing Material	Thermoplastic	Mounting Feature	压具
Package Quantity	Tube	Panel Mount Type	垂直
Size / Dimension	0.64 [.025]	Termination Style	Through Hole
1st Contact Gender	Pin (Male)	Mating Orientation	With
Number of Contacts	22	Termination Finish	带有
Number of Positions	22	Compatible Shell Size	母端护套组件
Contact Length - Post	3.3 mm [ .13 in ]	Mounting Hole Diameter	带有
Contact Finish - Mating	锡	Contact Length - Mating	0.230" (5.84mm)
Surface Mount Land Size	Without	Termination Post Length	5.84 mm [ .23 in ]
Contact Finish Thickness	100µin (2.54µm)	Static Discharge Shielding	不带

Note	Use Keying Tool No. 91417-1 to remove post for keying.	Type	Shrouded Header
Gender	HDR	Series	MTE
Product Type	Header	Connection Type	Printed Circuit Board
Number of Positions Loaded	All
