点击放大查看
770017-1
| Manufacturer | |
| Description | Conn Housing PL 2 POS 6.35mm ST Bulk .250" Centerline, 600 V, 19 - 36 A max CONN PLUG 2POS UMNL-II (2PC) Housing,plug,kit,Mate-n-lokII,2Way Pin & Socket Connectors 2 POS IN LINE PLUG Conn Housing PL 2 POS 6.35mm ST Bulk Product Highlights:HousingUniversal MATE-N-LOK IINot CompactPCI6.35 mm Centerline, MatrixNumber of Circuits = 2Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP PLUG AND SOCKET CONNECTOR HOUSING HOUSING, PLUG, MATE-N-LOCK, 2WAY Connector,SoftShell;UniversalMATE-N-LOKII;2;Plug;Nylon;White;31A Plug; wire-wire; 6.35mm; PIN:2; Pin layout:1x2; Locking: lock Crimp housing Pitch6.35 mm Poles 2 MATE-N-LOK Universal, 770017-1, TE Connectivity TE Connectivity Universal MATE-N-LOK II 系列 6.35mm 节距 2 路 直 公 压接连接器外壳 02P UMNLII IN-LNE PLUG HSG KIT |
| Category |
Business
| Product Category | Pin & Socket Connectors | Standard Package | Bulk |
| Factory Pack Quantity | 1 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | Tariff No | 85369010 |
Electrical
| Voltage Rating | 600 V | Current Rating (Max) | 31 A |
Mechanical
| Color | White | Depth | 22.99mm |
| Pitch | 6.35 mm | Weight | 0.004 |
| Packaging | Bulk | Wire Gauge | 10-30 AWG |
| Contact Type | Male or Female | Pitch - Post | 6.35mm |
| Mounting Type | Straight | Connector Type | Plug |
| Fastening Type | Latch Lock | Mounting Style | for cable |
| Number of Rows | 1 | Locking Feature | lock |
| Housing Material | Nylon | Package Quantity | 1 |
| Connector - Cable | plug | Number of Contacts | 2 |
| Contact Termination | Crimp | Number of Positions | 2 |
| 1st Connector Mounting Type | :Free Hanging | 1st Connector Mounting Feature | 1x2 |
Product Info
| Spg | 1 | Note | Contacts Not Provided |
| Type | Housing | Gender | PL |
| Series | MATE-N-LOK | CAD Drawing | 3D CAD Model |
| Product Type | Plug Housings | Adapter Series | Universal MATE-N-LOK II |
| Number of Units | 250 | For Use With/Related Products | Universal MATE-N-LOK II Connector |
Documents & Media
Similar Parts
350824-2
te connectivity / amp
Conn Power SKT 2 POS 6.35mm Solder ST Thru-Hole 2 Terminal 1 Port .250" Centerline, 600 V, 19 - 36 A max CONN HEADER 2POS VERT .250 AU Pin & Socket Connectors HEADER 2 POS 2 Position 6.35mm Universal Mate-N-Lok Vertical Receptacle
350428-4
te connectivity / amp
Conn Power HDR 2 POS 6.35mm Solder ST Thru-Hole 2 Terminal 1 Port .250" Centerline, 600 V, 19 - 36 A max CONN HEADER 2POS VERT .250 AU Power to the Board HDR PIN 1X02C VRT V2 Conn Power HDR 2 POS 6.35mm Solder ST Thru-Hole 2 Terminal 1 Port Product Highlights:HeaderUniversal MATE-N-LOKNot CompactPCI6.35 mm Centerline, MatrixNumber of Circuits = 2Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP UNIVM-N-LHEADER,02PUMNLPINHDRASSYNATLAU 02P UMNL PIN HDR ASSY NATL AU
173924-2
te connectivity / amp
Conn Wire to Board HDR 2 POS 6.35mm Solder ST Thru-Hole CONN PIN HEADER 2POS ACTION UMNL

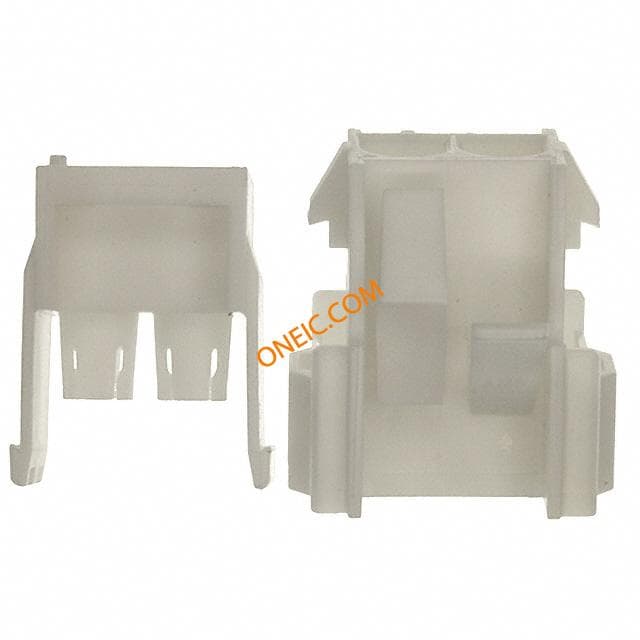

770024-1
