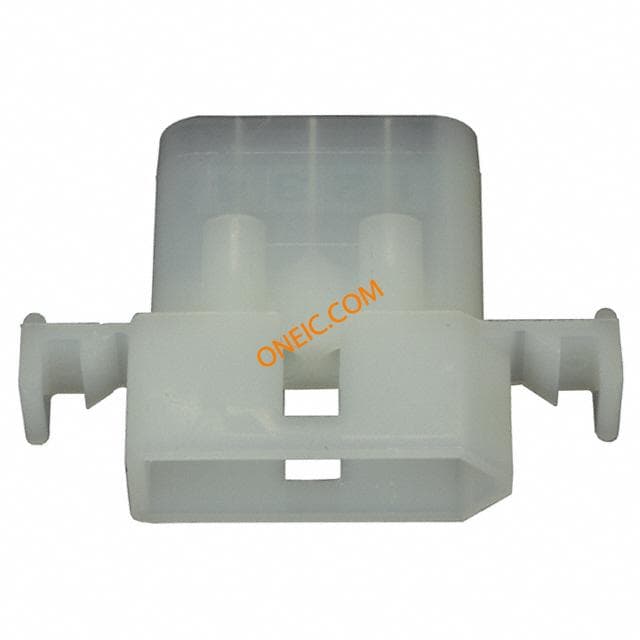

点击放大查看
对参数有疑问？问 AI 助手
Business
| Product Category | Pin & Socket Connectors | Standard Package | Bulk |
| Factory Pack Quantity | 1 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | Standards | RoHSCompliant,ELVCompliant |
| Tariff No | 85369010 | Leadfree Defin | Not relevant for lead free process |
| Approval Agency | CSA,UL | RoHSELV Compliance | RoHS compliant, ELV compliant |
| Material Flammability Rating | UL 94V-2 | ||
Electrical
| Voltage Rating | 250 V | Voltage - Supply | 250 |
| Number of Outputs | 4 | Current Rating (Max) | 13 A |
| Voltage - Supply (Min) | 250VAC | Connector - Voltage Input | Commercial Pin and Socket |
Mechanical
| Color | Natural | Depth | 28.58 mm |
| Pitch | 5.03 mm | Length | 1.125in |
| Weight | 0 | Lock Type | Detent Lock |
| Packaging | Bulk | Contact Type | Male or Female |
| Core Diameter | 0.093in. | Housing Color | Natural |
| Mounting Type | Straight | Angle of Throw | Straight |
| Connector Type | Receptacle | Fastening Type | Locking Ramp |
| Mounting Style | FreeHanging | Number of Rows | 1 |
| Housing Material | Nylon | Length - Overall | 5.03 [0.198] |
| Package Quantity | One Piece Housing | Primary Material | InterconnectSystem |
| Pin Hole Diameter | 0.198" | Number of Contacts | 4 |
| Contact Termination | Crimp | Number of Positions | 4 |
| Contact Layout, Typical | In-Line | Contact Finish Thickness | 2.36 [0.093] |
Product Info
| Note | Contacts Not Provided | Type | Housing |
| Gender | RCP | Series | Soft Shell |
| Features | FreeHanging | Manufacturer | SoftShell |
| Product Type | Housing | Number of Circuits | 4 |
| Matrix (Columns x Rows) | 0.198in. | For Use With/Related Products | :.093" Commercial Pin and Socket Contacts |
Environmental
| Operating Temperature | +25to+65°C | ||
