Business
| Product Category | Pin & Socket Connectors | Standard Package | Bulk |
| Factory Pack Quantity | 1 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | Standards | RoHSCompliant,ELVCompliant |
| Tariff No | 85366910 | Leadfree Defin | Not relevant for lead free process |
| Approval Agency | CSA,UL | RoHSELV Compliance | RoHS compliant, ELV compliant |
| Material Flammability Rating | UL 94V-2 | ||
Electrical
| Voltage Rating | 250 V | Voltage - Supply | 250 |
| Number of Outputs | 6 | Current Rating (Max) | 13 A |
| Voltage - Supply (Min) | 250VAC | Connector - Voltage Input | Commercial Pin and Socket |
Mechanical
| Color | Natural | Depth | 24.64mm |
| Pitch | 5.03 mm | Width | 13.59mm |
| Height | 13.59 mm | Length | 18.67mm |
| Weight | 0.002 | Lock Type | Detent Lock |
| Packaging | Bulk | Row Spacing | 0.198" (5.03mm) |
| Contact Type | Male or Female | Body Material | :Nylon |
| Core Diameter | 0.093in. | Housing Color | Natural |
| Mounting Type | Straight | Angle of Throw | Straight |
| Connector Type | Plug | Fastening Type | Detent Lock |
| Mounting Style | FreeHanging | Number of Rows | 2 |
| Cord Termination | :Free Hanging | Housing Material | Nylon |
| Length - Overall | 5.03 [0.198] | Package Quantity | One Piece Housing |
| Primary Material | InterconnectSystem | Pin Hole Diameter | 0.198" |
| Number of Contacts | 6 | Contact Termination | Crimp |
| Number of Positions | 6 | Contact Layout, Typical | Matrix |
| Contact Finish Thickness | 2.36 [0.093] | ||
Product Info
| Note | Contacts Not Provided | Type | Housing |
| Gender | PL | Series | 770090 |
| Features | FreeHanging | Manufacturer | SoftShell |
| Product Type | Housing | Number of Circuits | 6 |
| For Use With/Related Products | Centerline Soft Shell Pin & Socket Connector | ||
Environmental
| Operating Temperature | +25to+65°C | ||
Documents & Media
Online Document
Similar Parts

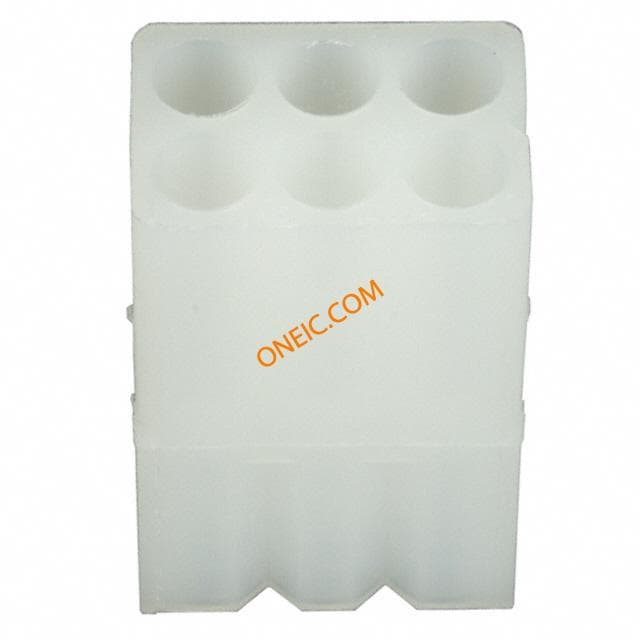

770088-1
