Business
| Product Category | Pin & Socket Connectors | Standard Package | Bulk |
| Factory Pack Quantity | 1 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | UL Rating | 获得认可 |
| Part Status | E28476 | Leadfree Defin | Not relevant for lead free process |
| CSA File Number | LR7189 | Standard Number | CSA, UL |
| CSA Certification | Certified | RoHSELV Compliance | RoHS compliant, ELV compliant |
| UL Flammability Rating | UL 94V-2 | Material Flammability Rating | UL 94V-2 |
Electrical
| Voltage Rating | 250 V | Voltage - Supply | 250 |
| Current Rating (Max) | 13 A | Connector - Voltage Input | Commercial Pin and Socket |
Mechanical
| Color | Natural | Depth | 24.63mm |
| Pitch | 5.03 mm | Width | 18.66mm |
| Length | 18.66mm | Sealed | Not Sealed |
| Lock Type | Detent Lock | Packaging | Bulk |
| Orientation | 直 | Row Spacing | 0.198" (5.03mm) |
| Contact Type | Male or Female | Mounting Type | Straight |
| Connector Type | Plug | Fastening Type | Detent Lock |
| Mounting Style | PanelMount | Number of Rows | 3 |
| Package / Case | Plug | Height (Inches) | 24.64 |
| Housing Material | Nylon | Package Quantity | One Piece Housing |
| Panel Mount Type | 不带 | Primary Material | Connector |
| Number of Contacts | 12 | Contact Termination | Crimp |
| Number of Positions | 12 | Compatible Shell Size | 母端护套 |
| Center Contact Material | 5.03 [0.198] | Contact Layout, Typical | Matrix |
| Contact Finish Thickness | 2.36 [0.093] | ||
Product Info
| Note | Contacts Not Provided | Type | Housing |
| Gender | PL | Series | 770102 |
| Manufacturer | 770102Series | Product Type | Housing |
| Number of Circuits | 12 | For Use With/Related Products | Centerline Soft Shell Pin & Socket Connector |
Environmental
| Operating Temperature | -55 – 105 °C [ -67 – 221 °F ] | ||
Documents & Media
Online Document
Similar Parts

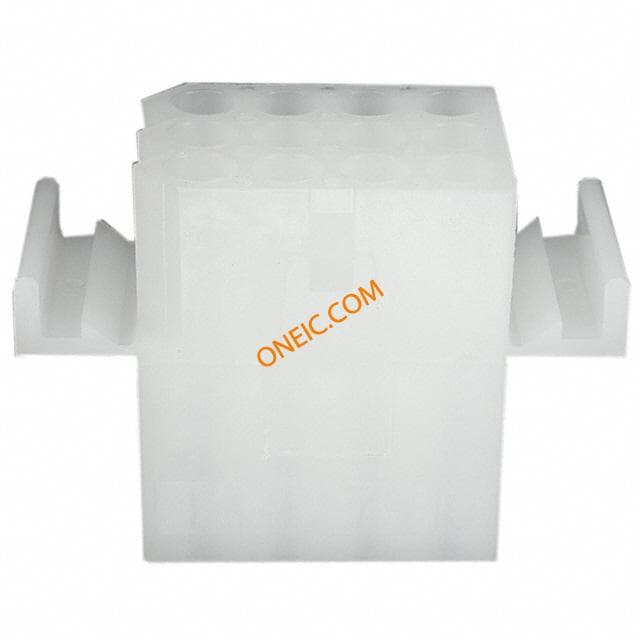

770099-1
te connectivity / amp
$6.1200
Details

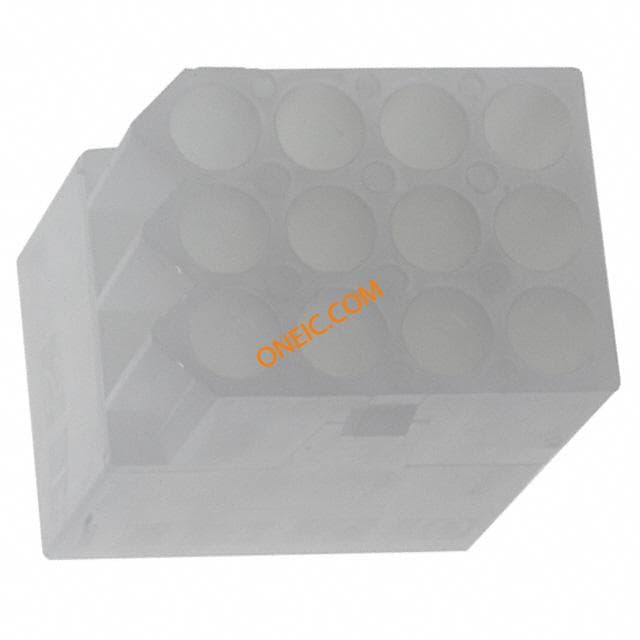

770098-1
