770601-2
| Category |
对参数有疑问？问 AI 助手
Business
| Product Category | Headers & Wire Housings | Standard Package | Tape & Reel |
| Factory Pack Quantity | 5500 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | Leadfree Defin | Not relevant for lead free process |
| RoHSELV Compliance | RoHS compliant, ELV compliant | ||
Electrical
| Voltage Rating | 250 V | Contact Resistance | 10mΩ |
| Current Rating (Max) | 4 A | Voltage - Supply (Min) | 250VAC |
Mechanical
| Depth | 2.67 mm | Pitch | Not Required mm |
| Height | 3.06 mm | Packaging | Tape & Reel (TR) |
| Wire Gauge | 0.12-0.4² [26-22] | Termination | Crimp |
| Contact Type | Signal | Contact Shape | Box |
| Housing Color | Not Required | Mounting Type | Straight |
| Pin or Socket | Socket | Connector Type | Connector Headers and PCB Receptacles |
| Contact Finish | Gold Over Nickel | Mounting Style | Cable |
| Contact Material | Phosphor Bronze | Housing Material | Not Required |
| Length - Overall | 11.18 mm | Package Quantity | Strip |
| Termination Rows | 压接 | Termination Style | Crimp |
| 1st Contact Gender | Pin (Male) | Number of Contacts | Not Required |
| Contact Termination | Crimp | Insulation Diameter | 1.65 [0.065] |
| Contact Finish Thickness | 30µin (0.76µm) | ||
Product Info
| Type | Contact | Gender | SKT |
| Series | CST-100 | Product Type | CST-100 Contacts |
| For Use With/Related Products | CST-100 Housings | ||
Environmental
| Operating Temperature | +105°C | ||
Documents & Media
Online Document
Similar Parts
770602-3
te connectivity / amp
$0.3604
Details
770602-4
te connectivity / amp
$1.4280
Details

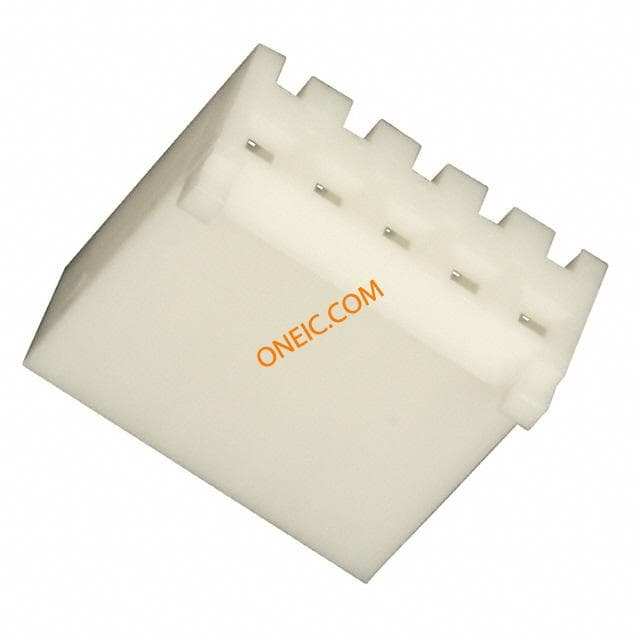

770602-5
te connectivity / amp
$0.6392
Details
1-770602-5
te connectivity / amp
$2.5840
Details
1-770602-3
te connectivity / amp
$0.8731
Details
1-770602-2
te connectivity / amp
$2.1250
Details
1-770602-4
te connectivity / amp
$2.1760
Details

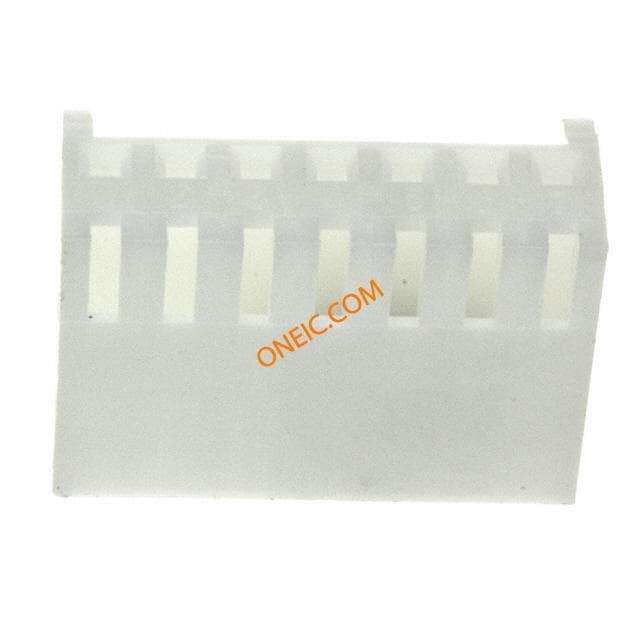

770602-7
