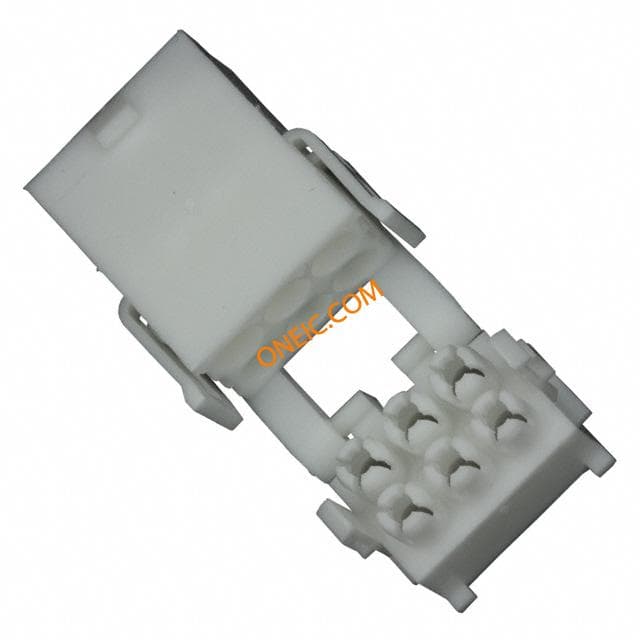

点击放大查看
对参数有疑问？问 AI 助手
Business
| Product Category | Pin & Socket Connectors | Standard Package | Bulk |
| Factory Pack Quantity | 500 | ||
Compliance
| RoHS | RoHS Compliant | Tariff No | 85366910 |
| Leadfree Defin | Not relevant for lead free process | RoHSELV Compliance | RoHS compliant, ELV compliant |
| Material Flammability Rating | UL 94V-0 | ||
Electrical
| Voltage Rating | 600 V | Voltage - Supply | 600 |
| Current Rating (Max) | 9.5 A | Voltage - Supply (Min) | 600VAC |
| Connector - Voltage Input | Mini-Universal MATE-N-LOK 2 | ||
Mechanical
| Color | White | Depth | 23.75mm |
| Pitch | 4.14 mm | Width | 17.25mm |
| Height | 17.25 mm | Length | 18.69mm |
| Weight | 0.0022 | Lock Type | Latch |
| Packaging | Bulk | Row Spacing | 0.163" (4.14mm) |
| Contact Type | Male or Female | Body Material | :Nylon |
| Housing Color | White | Mounting Type | Straight |
| Connector Type | Plug | Fastening Type | Latch Lock |
| Mounting Style | Free Hanging | Number of Rows | 2 |
| Cord Termination | :Free Hanging | Housing Material | Polyamide (PA) |
| Length - Overall | 18.69 mm | Package Quantity | One Piece Housing |
| Primary Material | InterconnectSystem | Termination Style | Crimp |
| 1st Contact Gender | Pin (Male) | Number of Contacts | 6 |
| Contact Termination | Crimp | Number of Positions | 6 |
| Center Contact Material | 4.14 x 4.14 [.163 x .163] | Contact Layout, Typical | Double-Row |
| Contact Finish Thickness | 0.99 [0.039] | ||
Product Info
| Note | Contacts Not Provided | Type | Housing |
| Gender | PL | Series | Mate-N-Lok II |
| CAD Drawing | 3D CAD Model | Manufacturer | MATE-N-LOK |
| Product Type | Receptacle Housings | Number of Circuits | 6 |
| For Use With/Related Products | Centerline Soft Shell Pin & Socket Connector | ||
Environmental
| Operating Temperature | -20C to 105C | ||
