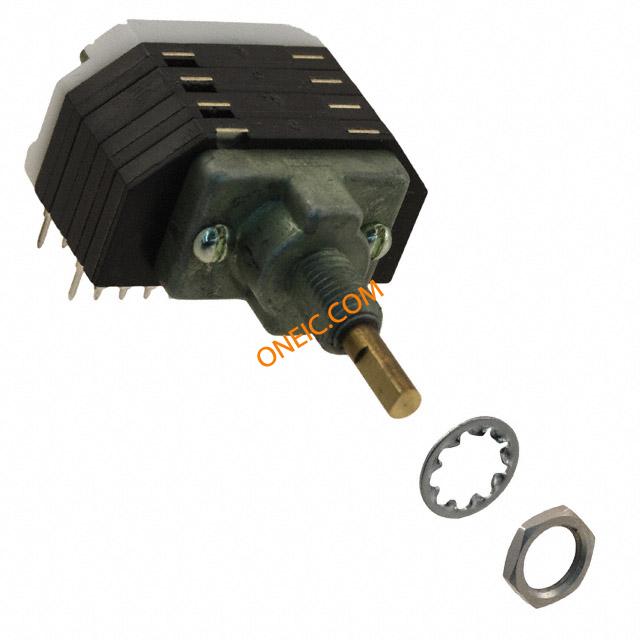

C3P0212N-A
| Category |
对参数有疑问？问 AI 助手
Business
| Lead Time | 35 Days | Subcategory | Switch Rotary |
| Product Category | Rotary Switches | Standard Package | 1 |
Compliance
| RoHS | Contains lead / RoHS non-compliant | ||
Electrical
| Voltage Rating | 28 V | Number of Poles | 2 |
| Dielectric Strength | 1000VAC | Current Rating (Max) | 250 mA |
| Contact Rating @ Voltage | 0.25A @ 28VDC | ||
Mechanical
| Orientation | Right Angle | Termination | SolderLugs |
| Contact Type | Non Shorting | Actuator Type | Flatted (3.17mm dia) |
| Contact Shape | 30 deg | Mounting Type | Panel, PCB Through Hole |
| Angle of Throw | 30° | Contact Finish | Silver |
| Mounting Style | Panel | Contact Material | BrasswithSilverPlated |
| Termination Style | PC Pin | Number of Positions | 2 ~ 12 |
| Material - Insulation | Polyester | Mounting Hole Diameter | 1/4In. |
| Number of Poles per Deck | 1 | ||
Product Info
| Type | Rotary | Features | FlatShaft |
| Index Stops | Adjustable | Manufacturer | C3Series |
| Number of Decks | 2 | Circuit per Deck | SP12T |
Documents & Media
Sourcing & traceability
- Datasheet
- C3 Series Adjustable Stop Instr
Lot-level traceability (date code, original factory packaging) is confirmed on every quote and shipment.
