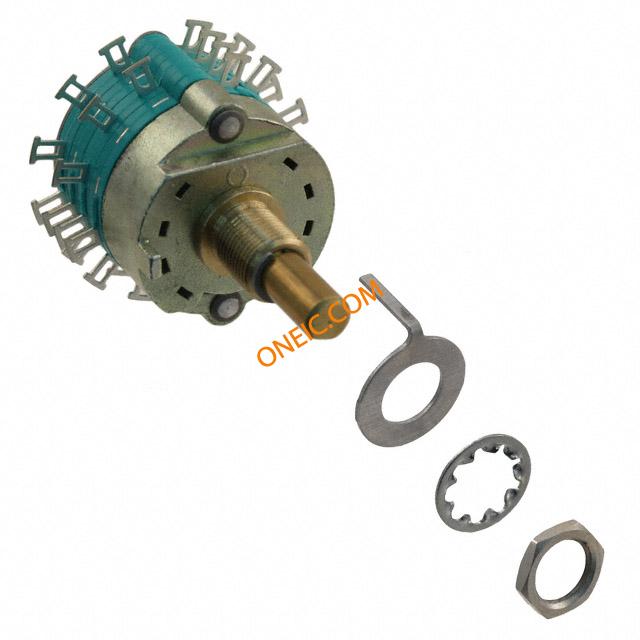

C4D0604N-A
| Manufacturer | |
| Description | SWITCH ROTARY 6P-4POS ENCLOSED SWITCH ROTARY 6P-4POS ENCLD 28V Switch; Rotary (NON-SHORTING); C4 SERIES; 06 POLES; 02-04 PositionS. Rotary Switches 02-04POS/6P/2 DECKS Switch Rotary 6P4T 4 Flatted Shaft Solder Lug 0.5A 125VAC 28VDC SWITCH, ROTARY, 6P4T, 500mA, 125V Switch,Rotary;6Poles;2-4Positions;2Decks;Non-shorting;0.5A;28VDC;SolderTerm. |
| Category |
对参数有疑问？问 AI 助手
商业参数
| 交货时间 | 35 Days | 子类别 | Switch Rotary |
| 产品类别 | Rotary Switches | 标准包装数量 | 1 |
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85365005 |
电气参数
| 核心电压 | :125V | 额定电压 | 125 V |
| 极数 | :6 | 介电强度 | 1000VAC |
| 最大额定电流 | 500 mA | 最大触点电流 | :300mA |
| 触点额定值 @ 电压 | 0.5A @ 28VDC | 供电电压 (Vcc/Vdd) | :28V |
机械参数
| 重量 | 0.068 | 方向 | Vertical |
| 端接方式 | SolderLugs | 触头类型 | Non Shorting |
| 致动器类型 | Flatted (6.35mm dia) | 触点形状 | 30 deg |
| 安装类型 | Panel Mount | 行程角度 | 30° |
| 接触镀层 | Silver | 安装样式 | Panel |
| 旋转角度 | :30° | 触头材料 | BrasswithSilverPlate |
| 端接样式 | Solder Lug | 位数 | 2 ~ 4 |
| 绝缘材料 - 材质 | DiallylPhthalate | 安装孔直径 | 3/8In. |
| 每层极数 | 3 | ||
产品信息
| 类型 | Rotary | 产品特性 | FlatShaft |
| 分度停止 | Adjustable | 制造商全称 | C4Series |
| 叠数 | 2 | 每层电路数 | 3P4T |
环境参数
| 额定寿命 | 25000Cycles(Min.) | 防护等级 | IP67 |
