JWD-107-5
| Manufacturer | |

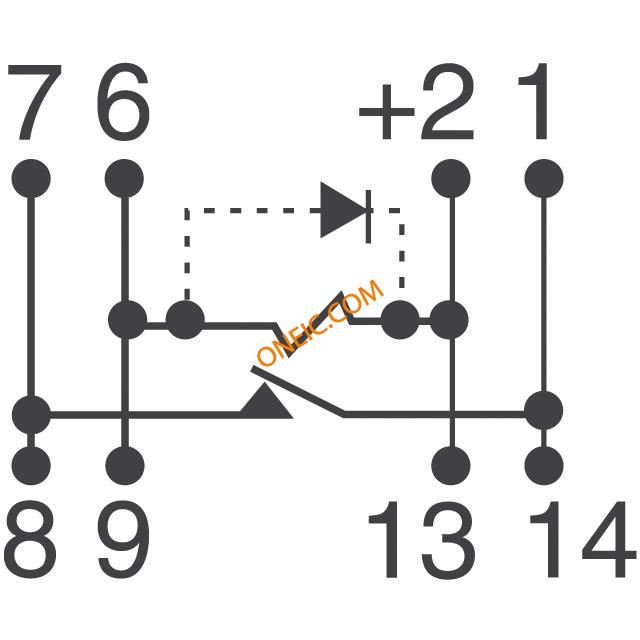

| Description | Reed Relays DIP 5/6VDC SPST-NO RELAY REED SPST 500MA 5V Reed Relays SPST-NO 0.5A 5/6VDC 500Ohm Thru-Hole Reed Relays SPST-NO 0.5A 5/6VDC 500Ohm Thru-Hole Product Highlights:JWD/JWS SeriesContact Arrangement = 1 Form A, SPST-NO, 1 N/OContact Current Rating = .5 Amps.Monostable Coil Magnetic SystemWith Coil Suppression Diode DRY REED RELAY, SPST-NO, 6VDC, 0.5A, THD RELAY,GENERALPURPOSE,REED,0.5A,SPST-NO,PCBMOUNT JWD-107-5=REED RELAYS |
| Category |
对参数有疑问？问 AI 助手
Business
| Lead Time | 80 Days | Subcategory | Reed Relays |
| Part # Aliases | 1393771-5 | Product Category | Reed Relays |
| Standard Package | 25 | Factory Pack Quantity | 25 |
Compliance
| RoHS | RoHS Compliant | Tariff No | 85364110 |
Electrical
| Coil Type | Non Latching | Coil Power | 50 mW |
| Coil Current | 10mA | Release Time | 0.5ms |
| Power - Output | 50 mW to 72 mW | Coil Resistance | 500 Ohms |
| Voltage - Supply | 6 V | Switching Voltage | 100VDC - Max |
| Vgs(th) (Max) @ Id | 0.5 VDC | Current - Switching | :500mA |
| Diode Configuration | Yes | Current Rating (Max) | 0.5 A |
| Vce(on) (Max) @ Vge, Ic | 3.8 VDC | Contact Rating (Current) | 500mA |
| Drive Voltage (Max Rds On, Min Rds On) | 5VDC | ||
Mechanical
| Weight | 0.009 | Packaging | Tube |
| Termination | Solder | Contact Form | 1 Form A (SPST-NO) |
| Height (Max) | :8mm | Mounting Type | Through Hole |
| Mounting Style | PCB | Contact Material | Ruthenium |
| Termination Style | PC Pin | Contact Layout, Typical | :SPST-NO |
Product Info
| Type | Dry Reed Relays | Features | Diode |
| Function | GeneralPurpose | Relay Type | Reed |
| Industry Aliases | 1393771-5, JWD-107-5 | ||
Environmental
| Operate Time | 1.5ms | Operating Temperature | -35°C ~ 85°C |
Documents & Media
Online Document
