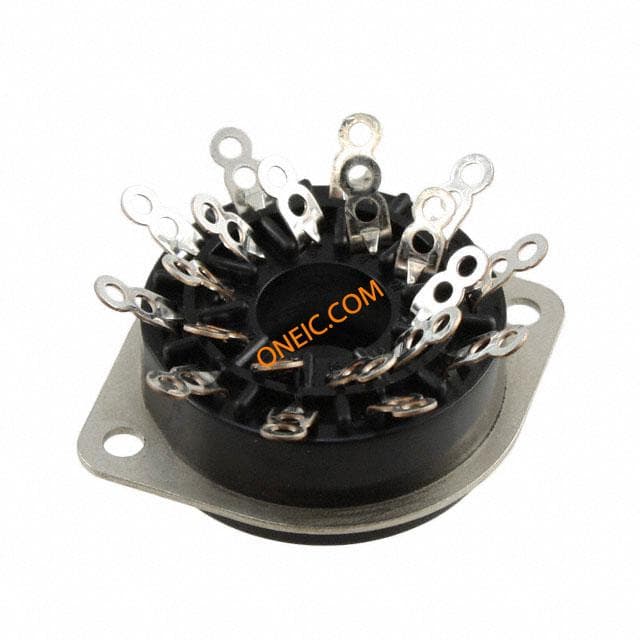

KBP-11AG-120
| Category |
对参数有疑问？问 AI 助手
Business
| Lead Time | 42 Days | Subcategory | Electromechanical Relay |
| Part # Aliases | 2-1393100-4 | Product Category | General Purpose Relays |
| Standard Package | 12 | Factory Pack Quantity | 12 |
Compliance
| RoHS | No | Standards | UL,RoHS |
| Tariff No | 85364110 | Part Status | 2-1393100-4 |
Electrical
| Coil Type | Bistable | Lamp Type | Bistable |
| Coil Power | 5.3 VA | Range deg/s | :TE - KBP Series |
| Coil Current | 44 mA | Voltage Rating | 120VAC |
| Coil Resistance | 1030 Ohms | Number of Poles | :2 |
| Current - Output | :10A | Voltage - Supply | 120 V |
| Switching Voltage | 120VAC - Max | Current Rating (Max) | 10A |
| Contact Voltage (Max) | :120V | Power - Average Forward | 5.3 VA |
| Vce(on) (Max) @ Vge, Ic | 102 VAC | Contact Rating (Current) | 10 A |
| Drive Voltage (Max Rds On, Min Rds On) | 120VAC | ||
Mechanical
| Width | 61.1 mm | Height | 90.4 mm |
| Length | 45.2 mm | Weight | 0.2 |
| Packaging | Tray | Termination | Plug-In |
| Contact Form | 2 Form C (DPDT-BM) | Mounting Type | Socketable |
| Terminal Type | Plug In | Mounting Style | Socket |
| Number of Pins | 11 | Contact Material | Silver Cadmium Oxide |
| Termination Style | Plug In, 11 Pin (Octal) | Contact Termination | Plug In |
| Contact Layout, Typical | DPDT | ||
Product Info
| Series | KBP | Function | Latching |
| Relay Type | General Purpose | Manufacturer | KBPSeries |
| Industry Aliases | 2-1393100-4, KBP-11AG-120 | Application Specifics | General Purpose |
Environmental
| Operating Temperature | -45°C ~ 85°C | ||
