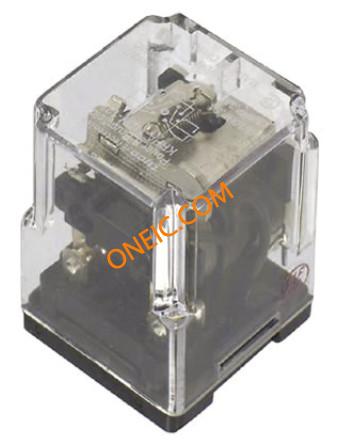

KRPA-11DY-12
| Manufacturer | |
| Description | General Purpose Relays DPDT 5A 12VDC Relay,E-Mech,GenPurp,DPDT,Cur-Rtg5A,Ctrl Electromechanical Relay DPDT 5A 12VDC 120Ohm Socket Electromechanical Relay DPDT 5A 12VDC 120Ohm Socket Product Highlights:KRPA SeriesContact Arrangement = 2 Form C, DPDT, 2 C/OContact Current Rating = 5 Amps.Monostable Coil Magnetic SystemWithout Coil Suppression Diode POWER RELAY, DPDT, 12VDC, 5A, PLUG IN Relay;E-Mech;GenPurp;DPDT;Cur-Rtg5A;Ctrl-V12DC;Vol-Rtg120/28AC/DC;SocketMnt KRPA-11DY-12=KRPA |
| Category |
商业参数
| 交货时间 | 91 Days | 子类别 | Electromechanical Relay |
| 零件号别名 | 5-1393104-6 | 产品类别 | General Purpose Relays |
| 工厂包装数量 | 25 | ||
合规参数
| RoHS | RoHS Compliant By Exemption | 标准 | UL,CSA,RoHS |
| 海关税号 | 00000000 | 零件状态 | 5-1393104-6 |
电气参数
| 线圈类型 | Monostable | 量程（°/s） | :TE - KRPA Series |
| 线圈电流 | 1 mA | 额定电压 | 240VAC |
| 线圈电阻 | 120 Ohms | 承载电流 | :5A |
| 输出电流 | :5A | 供电电压 | 12 V |
| 最大额定电流 | 5A | 触点电压（最大） | :240V |
| 平均正向功率 | 1.2 W | 触点额定电流 | 5 A |
| 驱动电压（最大Rds On，最小Rds On） | 12VDC | ||
机械参数
| 深度 | 1.469in | 宽度 | 37.3 mm |
| 高度 | 34.9 mm | 长度 | 48.8 mm |
| 重量 | 0.077 | 端接方式 | Plug-In |
| 触点形式 | 2 Form C (DPDT-BM) | 安装类型 | Socket Mount |
| 端子类型 | Plug In | 安装样式 | Socket |
| 引脚数 | 8 | 触头材料 | Silver |
| 尺寸/外形 | 1.922in.Lx1.469in.Wx1.375in.H | 接触件端接 | Plug In |
| 典型触点布局 | DPDT | ||
产品信息
| 类型 | Ice Cube Style Relay | 系列 | KRPA |
| 功能 | GeneralPurpose | 继电器类型 | ElectroMechanical |
| 制造商全称 | KRPASeries | 行业别名 | 5-1393104-6, KRPA-11DY-12 |
| 应用细节 | General Purpose | ||
