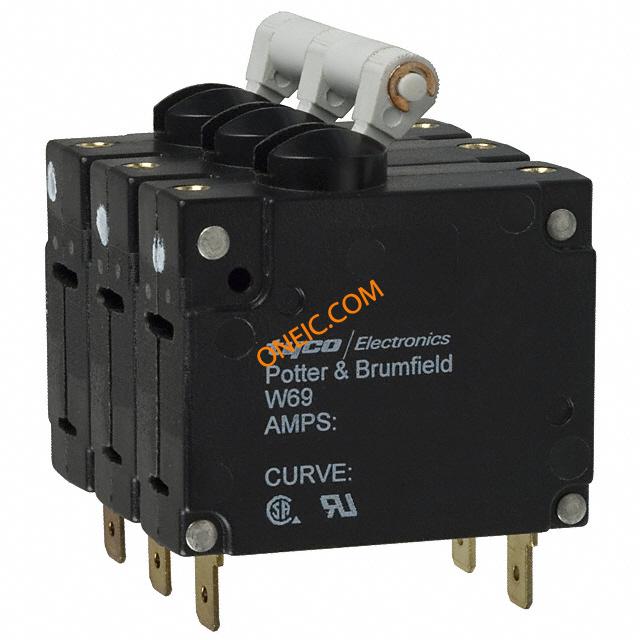

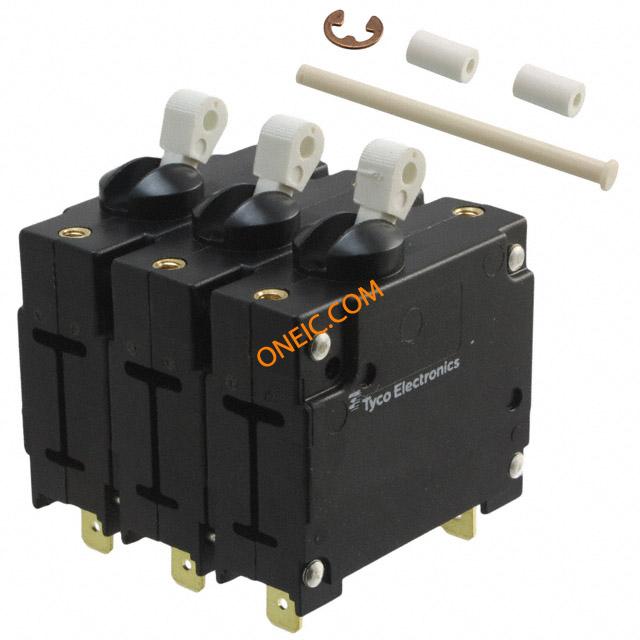

W69-X2Q12-10
| Category |
对参数有疑问？问 AI 助手
Business
| Product | Hydraulic Magnetic Circuit Breakers | Lead Time | 84 Days |
| Subcategory | Circuit Breaker | Part # Aliases | 8-1393253-3 |
| Product Category | Circuit Breakers | Standard Package | 8 |
| Factory Pack Quantity | 8 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | Standards | VDEApproved |
| Tariff No | 85361010 | Part Status | 8-1393253-3 |
Electrical
| Characteristic | Thermal | Voltage Rating | 277V |
| Number of Poles | 3 | Dielectric Strength | 1.5 kV |
| Current Rating (Max) | 10A | Voltage - Input (Min) | :277V |
| Voltage - Rated AC (Phase to Phase) | :277V | ||
Mechanical

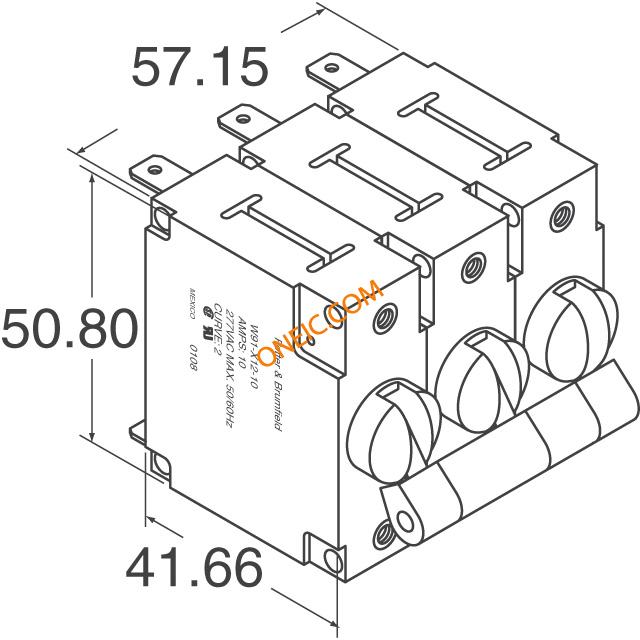

| Color | White | Width | 57.15 mm |
| Height | 50.8 mm | Length | 51.89 mm |
| Weight | 2.497397 oz | Termination | QuickConnect |
| Breaker Type | Magnetic (Hydraulic Delay) | Actuator Type | Lever |
| Mounting Type | Panel Mount | Mounting Style | Panel |
| Primary Material | CircuitBreaker | Size / Dimension | 2.43Lx2.25Wx2.6Hin. |
| Termination Style | Quick Connect | Mounting Hole Diameter | 0.156Din. |
Product Info
| Type | Hydraulic/Magnetic Circuit Breaker | Series | W6 |
| Features | ULRecognized(UL1077andUL1500) | Function | Series Trip |
| Illumination | Not Illuminated | Manufacturer | W6Series |
| Product Type | Supplementary Protector / Motor Controller | Industry Aliases | 8-1393253-3, W69-X2Q12-10 |
Environmental
| Time to Trip | 2.2 s to 20 s | Operating Temperature | - 40 C to + 85 C |
Documents & Media
Online Document
PDF Document
Similar Parts
Sourcing & traceability
- Datasheet
- W69-X2Q12-10?RQPN=W69-X2Q12-10
Lot-level traceability (date code, original factory packaging) is confirmed on every quote and shipment.
