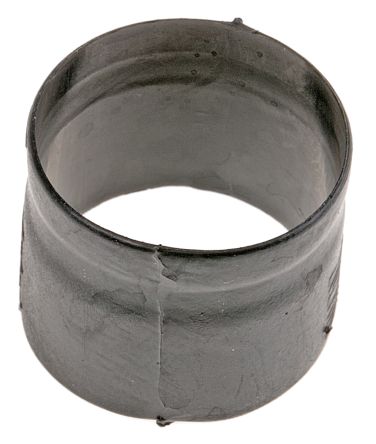

202A111-25-0
| Category |
对参数有疑问？问 AI 助手
Business
| Lead Time | 28 Days | Subcategory | Heat Shrink |
| Part # Aliases | 806786-000 | Product Category | Cable Boots |
| Standard Package | Bulk | ||
Compliance
| RoHS | RoHS Compliant | Leadfree Defin | Not relevant for lead free process |
| Approved Countries | DEF Std 59-97 Issue 3 Type DE, MIS-34867, VG95343 Parts 6, 7, 8, & 9 | RoHSELV Compliance | RoHS compliant, ELV compliant |
| Approval Agency Marking | 否 | ||
Electrical
| Connector Impedance | 7.90 â 16.50 [0.311 â 0.650] | Connector - Voltage Input | Micro Boot, Molded Boot |
Mechanical
| Size | 11 | Color | Black |
| Length | 25.4 mm | Lipped | No |
| Adhesive | Adhesive Purchased Separately. | Material | Elastomer |
| Packaging | Bulk | Angle of Throw | Straight |
| Cable Diameter | 3.8 – 11.9 mm [ .1496 – .469 in ] | Outer Diameter | .177 in, .18 in, .2 in, .236 in, 5 mm, 6 mm |
| Material - Core | 25 | Material - Blade | 25 |
| Connector - Cable | No | Diameter - Outside | 3.80 â 11.90 [0.150 â 0.469] |
Product Info
| Note | Contact Raychem for additional adhesive and/or cut off boot length information | Type | Molded Boot |
| Manufacturer | Raychem | Product Type | Molded Boot |
| Industry Aliases | 202A111-25-0, 806786-000 | RF Family/Standard | 202A1 |
| Application Specifics | Military | ||
Environmental
| Fluid Type | Suitable for long term fluid exposure at elevated temperatures | Operating Temperature | -75 â +150 |
