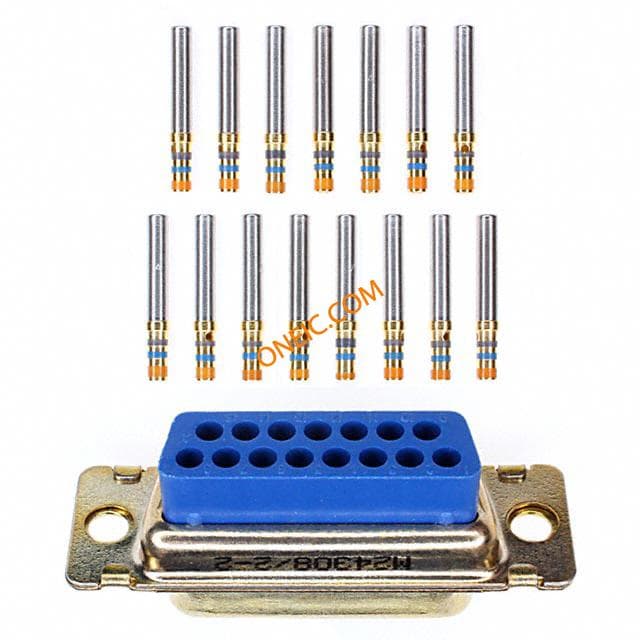

点击放大查看
1757829-2
| Category |
对参数有疑问？问 AI 助手
Compliance
| Rad Hardened | No | Qualification | No |
| Leadfree Defin | Wave solder capable to 240°C, Wave solder capable to 260°C, Wave solder c | RoHSELV Compliance | RoHS compliant, ELV compliant |
| Approval Agency Marking | Yes | ||
Electrical
| Connector Impedance | No | Connector - Voltage Input | No |
Mechanical
| Depth | 12.93 mm | Height | 10.97 mm |
| Outline | 2 | Diameter | 0.76 [0.030] |
| Packaging | 包装 | Shell Size | 2 |
| Termination | Solder | Contact Size | 20 |
| Non-Magnetic | No | Shell Finish | 锌 |
| Mounting Type | Vertical | Shell Plating | Zinc |
| Terminal Size | 20 | Connector Type | PIN |
| Contact Finish | Gold over Nickel | Mounting Style | Mounting Holes |
| Number of Pins | With | Shell Material | Steel |
| Insert Material | Aluminum Alloy | Contact Material | Brass or Beryllium Copper |
| Housing Material | 钢 | Length - Overall | 39.52 mm |
| Panel Mount Type | 垂直 | Connector - Cable | 否 |
| Termination Style | 插针 | Number of Contacts | 2 |
| Number of Positions | 15 | Plating - Thickness | Clear Blue Trichromate |
| Bushing, Grommet Type | No | Mounting Hole Diameter | 3.05 [.120] |
| Termination Post Length | 4.78 [0.188] | ||
Product Info
| Note | For solder dip product see part number 1757829-7. | Type | D-Subminiature |
| Gender | Plug | Series | 109 |
| Density | Standard | Arrangement | MS18274-1 |
| Manufacturer | Tyco Electronics | Product Type | Connector |
| Connection Type | Printed Circuit Board | Number of Ports | 1 Port |
| Equipment Part Numbers | M24308/24-8 | ||
