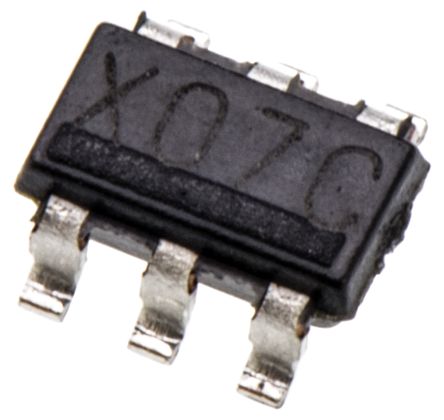

点击放大查看
ADC121S021CIMF/NOPB
| Category |
对参数有疑问？问 AI 助手
Business
| Other Names | ADC121S021CIMF/NOPBDKR | Standard Package | 1,000 |
| Factory Pack Quantity | 1000 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | Tariff No | 85423990 |
| Part Status | ACTIVE | ||
Electrical
| Interface | Serial (3 Wire, SPI) | S/N Ratio | 72 |
| Input Type | Voltage | Resolution | 12 bit |
| Input Signal | Single Ended | INL/DNL (LSB) | ±1LSB |
| Data Interface | DSP, MICROWIRE™, QSPI™, Serial, SPI™ | Number of Bits | 12 |
| Reference Type | Supply | Current - Output | :1.5mA |
| Number of Inputs | 1 | Voltage - Supply | 3.3 V, 5 V |
| Resolution (Bits) | :12bit | Sampling Frequency | 200ksps |
| Analog Input:Output | 5.25 | Current Rating (Max) | Catalog |
| Number of ADCs / DACs | 1 | Voltage Supply Source | Single Supply |
| Power - Average Forward | 1.5 | Voltage - Supply, Digital | 5.25 |
| Sampling Rate (Per Second) | 50k ~ 200k | ||
Mechanical
| Width | 1.6mm | Height | 1.02mm |
| Length | 2.92mm | Weight | 0.002 |
| Packaging | Tape & Reel (TR) | Mounting Type | Surface Mount |
| Mounting Style | SMD/SMT | Number of Pins | :6 |
| Package / Case | SOT-23-6 | Package Cooled | SOT-23 |
| Package Quantity | 1000 | Size / Dimension | 2.92 x 1.6 x 1.02mm |
| Number of Positions | 6 | Supplier Device Package | SOT-23-6 |
Product Info
| Series | ADC121S021 | Software | SNAS305I |
| Architecture | SAR | Functional Diagram | fbd_snas305i.gif |
| Utilized IC / Part | View | Number of A/D Converters | 1 |
| Number of Inputs and Type | 1 Single-Ended, Unipolar | ||
Environmental
| Temperature - Test | -40 to 85 | Operating Temperature | -40°C ~ 85°C |
Documents & Media
PDF Document
Online Document
Sourcing & traceability
- Datasheet
- ADC121S021
Lot-level traceability (date code, original factory packaging) is confirmed on every quote and shipment.
