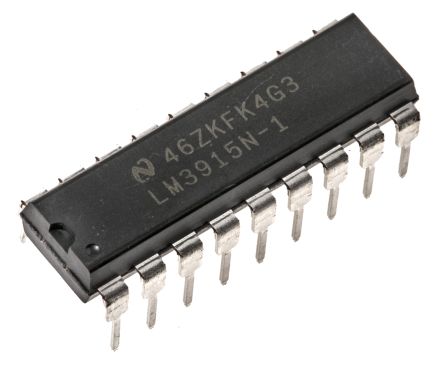

LM3915N-1/NOPB
| Category |
对参数有疑问？问 AI 助手
Business
| Standard Package | Rail / Tube | Factory Pack Quantity | 20 |
| Standard Package Name | PDIP | ||
Compliance
| RoHS | RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| EU RoHS | Compliant | Tariff No | 85411000 |
| Part Status | ACTIVE | ||
Electrical
| Dimming | :Analogue | Interface | Common Anode |
| Display Type | LED, LCD, Vacuum Fluorescent (VF) | Power - Rated | 1365 mW |
| Voltage Rating | 3 V to 25 V | Current - Output | 6.1mA |
| Current - Supply | 9200 uA | Voltage - Supply | 3 to 25 V |
| Number of Outputs | :10 | Current Rating (Max) | Catalog |
| Voltage - Input (Min) | :3V | Voltage - Output (Max) | :1.34V |
| Voltage - Supply (Min) | 25 | Power Dissipation (Max) | 1365 mW |
| Voltage - Continuous Operating (Max) (MCOV) | :25V | ||
Mechanical
| Width | 6.35mm | Height | 3.9mm |
| Length | 22.86mm | Weight | 0.04 |
| Packaging | Tube | Case Color | :DIP |
| Lead Style | Through Hole | Termination | :Through Hole |
| Mounting Type | Through Hole | Mounting Style | Through Hole |
| Number of Pins | :18 | Package / Case | 18PDIP |
| Package Cooled | MDIP | Material Finish | :MSL 1 - Unlimited |
| Package Quantity | PDIP | Size / Dimension | 22.86 x 6.35 x 3.9mm |
| Number of Positions | 18 | Supplier Device Package | 18-DIP |
Product Info
| Spg | 500 | Type | :LED |
| Series | LM3915 | Software | SNVS740C |
| Topology | :- | Base Unit | :3915 |
| Configuration | Dot/Bar Display | Display Style | Dot / Bar |
| Number of Units | 1 | Functional Diagram | fbd_snvs740c.gif |
| Number of Segments | 10 | Utilized IC / Part | display controller |
| Digits or Characters | 10 Steps | Application Specifics | :Power Meter, VU Meter |
Environmental
| Mechanical Life | New At Mouser | Temperature - Test | 0 to 70 |
| Operating Temperature | + 70 C | ||
Documents & Media
PDF Document
PDF Document
