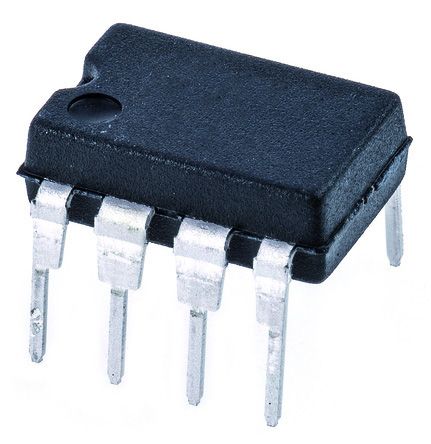

LM5021NA-1/NOPB
| Manufacturer | |
| Description | . LM5021NA-1/NOPB - Converter Offline Flyback, Forward Topology Up to 1MHz 8-PDIP from Texas Instruments. from now! |
| Category |
对参数有疑问？问 AI 助手
Business
| Standard Package | 40 | Factory Pack Quantity | 40 |
| Standard Package Name | PDIP | ||
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
| Part Status | ACTIVE | ||
Electrical
| Fall Time | 10ns | Isolation | Isolated |
| Delay Time | 10ns | Duty Cycle | 80% |
| Voltage Rating | 8.5 V | Frequency Range | 150kHz ~ 1MHz |
| Rise Time (Typ) | 25ns | Current - Output | 0.7 A |
| Current - Supply | 2.5 mA | Duty Cycle (Max) | 80 % (Typ) |
| Output Isolation | Isolated | Voltage - Supply | 8 V ~ 30 V |
| Number of Outputs | 1 | Current Rating (Max) | Catalog |
| Frequency - Switching | 500 kHz | Synchronous Rectifier | Yes |
| Voltage - Input (Min) | 8 V ~ 30 V | Propagation Delay (Max) | 25ns |
| Number of Outputs and Type | 1 | ||
Mechanical
| Width | 6.35mm | Height | 3.3mm |
| Length | 9.27mm | Packaging | Rail |
| Lead Style | Through Hole | Contact Form | Yes |
| Mounting Type | Through Hole | Mounting Style | Through Hole |
| Number of Pins | 8 | Package / Case | 8-DIP (0.300", 7.62mm) |
| Package Cooled | MDIP | Length - Overall | 10.16(Max) |
| Package Quantity | PDIP | Size / Dimension | 9.27 x 6.35 x 3.3mm |
| Number of Positions | 8 | Shell Size - Insert | 5.08(Max) - 0.51(Min) |
| Pin Size - Below Flange | 是 | Supplier Device Package | 8-PDIP |
Product Info
| Type | Current Mode PWM Controllers | Series | LM5021 |
| Features | Frequency Synchronization | Software | SNVS359E |
| Topology | Flyback|Forward | Manufacturer | Texas Instruments |
| Control Method | Current Mode PWM Controller | Pattern Number | Y |
| Utilized IC / Part | View | Base Product Number | 是 |
| Control/Display Type | 电流 | Output Configuration | Yes |
| Printed Circuit Board | 8 | ||
Environmental
| Mating Cycles | 80% | Temperature - Test | -40 to 125 |
| Operating Temperature | -40°C ~ 125°C | ||
