LMX2430SLEX/NOPB
| Category |
对参数有疑问？问 AI 助手
Business
| Standard Package | Tape & Reel | Factory Pack Quantity | 2500 |
| Standard Package Name | BGA | ||
Compliance
| RoHS | RoHS Compliant | EU RoHS | Compliant |
| Part Status | ACTIVE | ||
Electrical
| PLL | Yes with Bypass | Input | CMOS |
| Output | CMOS | Voltage Rating | 2.25 |
| Frequency - Max | 3000 MHz | Current - Supply | 2.8 mA |
| Voltage - Supply | 2.5 V | Divider/Multiplier | No/No |
| Number of Elements | 2 | Current Rating (Max) | Catalog |
| Frequency - Output 1 | 3000 | Ratio - Input:Output | 3:2 |
| Voltage - Supply (Min) | 2.75 | Minimum Input Frequency | 100 MHz |
| Differential - Input:Output | Yes/No | ||
Mechanical
| Width | 3.5 | Packaging | Reel |
| Mounting Type | Surface Mount | Mounting Style | SMD/SMT |

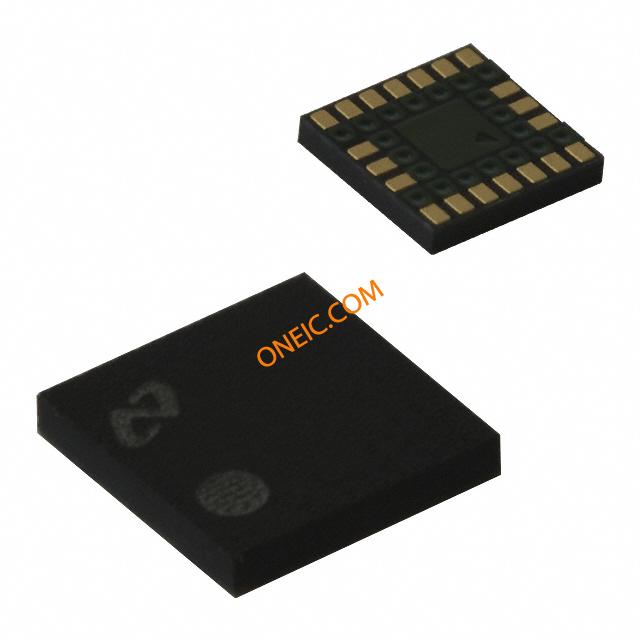

| Package / Case | 20LAM UCSP | Length - Overall | 3.5 |
| Package Quantity | LAM UCSP | Number of Positions | 20 |
| Shell Size - Insert | 0.6(Max) | Supplier Device Package | 20-ULGA (3.5x3.5) |
Product Info
| Type | PLL Frequency Synthesizer | Series | LMX2430 |
| Software | SNAS187C | Manufacturer | Texas Instruments |
| Development Kit | LMX2430EVAL/NOPB | Functional Diagram | fbd_snas187c.gif |
| Number of Circuits | 2 | RF Family/Standard | LMX2430 |
| Utilized IC / Part | View | Printed Circuit Board | 20 |
Environmental
| Temperature - Test | -40 to 85 | Operating Temperature | -40 to 85 °C |
Documents & Media
Similar Parts
Sourcing & traceability
- Datasheet
- lmx2430.pdf
Lot-level traceability (date code, original factory packaging) is confirmed on every quote and shipment.
