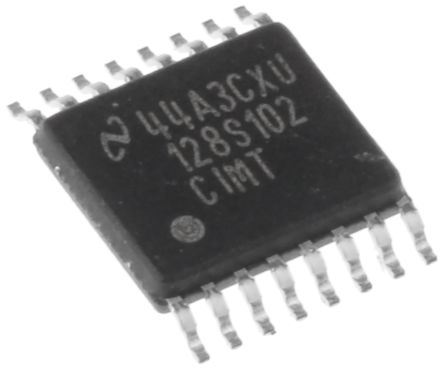

ADC128S102CIMT/NOPB
| Category |
对参数有疑问？问 AI 助手
Business
| Standard Package | 92 | Standard Package Name | TSSOP |
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
| Tariff No | 85411000 | Part Status | ACTIVE |
| Rad Hardened | No | ||
Electrical
| Interface | Serial (SPI, QSPI, Microwire) | Linearity | -0.9LSB/1.5LSB |
| S/N Ratio | 73 | Input Type | Voltage |
| Resolution | 12bit | Input Signal | Single-Ended |
| INL/DNL (LSB) | ±1.2LSB | Power - Input | Single |
| Converter Type | General Purpose | Data Interface | DSP, MICROWIRE™, QSPI™, Serial, SPI™ |
| Input Polarity | Unipolar | Number of Bits | 12 |
| Reference Type | Supply | Voltage Rating | 5.25V |
| Voltage - Rated | 5.25 | Current - Output | :2.13mA |
| Number of Inputs | 8 | Voltage - Supply | 3.3 V, 5 V |
| Resolution (Bits) | :12bit | Voltage Reference | Supply |
| Number of Elements | 1 | Sampling Frequency | 1Msps |
| Analog Input:Output | 5.25 | Current Rating (Max) | Catalog |
| Number of ADCs / DACs | 1 | Voltage Supply Source | Single |
| Power - Average Forward | 2.3 | Differential Nonlinearity | -0.9/1.5LSB |
| Voltage - Supply, Digital | 5.25 | Sampling Rate (Per Second) | 500k ~ 1M |
| Differential - Input:Output | No | Voltage - Supply Span (Typ) | Not Required V |
| Common Mode Transient Immunity (Min) | Extended Industrial | ||
Mechanical
| Width | 4.4mm | Height | 0.9mm |
| Length | 5mm | Weight | 0.002 |
| Packaging | Rail | Lead Style | Gull-wing |
| Mounting Type | Surface Mount | Number of Pins | :16 |
| Package / Case | 16-TSSOP (0.173", 4.40mm Width) | Package Cooled | TSSOP |
| Length - Overall | 5.1(Max) | Package Quantity | TSSOP |
| Size / Dimension | 5 x 4.4 x 0.9mm | Number of Positions | 16 |
| Shell Size - Insert | 1.05(Max) | Supplier Device Package | 16-TSSOP |
Product Info
| Software | SNAS298G | Architecture | SAR |
| Functional Diagram | fbd_snas298g.gif | Utilized IC / Part | View |
| Printed Circuit Board | 16 | Number of A/D Converters | 1 |
| Number of Inputs and Type | 8 Single-Ended, Unipolar | ||
Environmental
| Temperature - Test | -40 to 105 | Operating Temperature | -40°C ~ 105°C |
Documents & Media
Online Document
PDF Document
Online Document
Online Document
