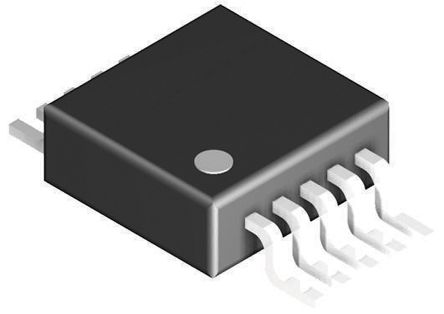

ADC161S626CIMME/NOPB
| Manufacturer | |
| Description | ADC Single SAR 250ksps 16-bit Serial 10-Pin MSOP T/R Analog to Digital Converters - ADC Single ADC SAR 250ksps 16-bit Serial 10-Pin VSSOP T/R IC ADC 16BIT 50/250KSPS 10-MSOP Analog to Digital Converters - ADC 16B 50-250ksps Diff Input MicroPwr ADC IC, ADC, 16BIT, 250KSPS, MSOP-10 16-Bit, 50 to 250 kSPS, Differential Input, MicroPower ADC Texas Instruments , 16 位 ADC, 差分输入, Microwire（串行输入/输出），QSPI，串行 (SPI)接口, 10针 VSSOP封装 |
| Category |
对参数有疑问？问 AI 助手
Business
| Other Names | ADC161S626CIMME/NOPBCT | Standard Package | Tape & Reel |
| Factory Pack Quantity | 250 | Standard Package Name | SSOP |
Compliance
| RoHS | RoHS Compliant | EU RoHS | Compliant |
| Tariff No | 85411000 | Part Status | ACTIVE |
Electrical
| Interface | Serial (3-Wire, SPI, QSPI, Microwire) | S/N Ratio | 93.2(Typ) dBc |
| Input Type | Voltage | Resolution | 16 Bit |
| Input Signal | Single-Ended|Differential | INL/DNL (LSB) | ±2LSB |
| Converter Type | General Purpose | Data Interface | MICROWIRE™, QSPI™, Serial, SPI™ |
| Input Polarity | Bipolar | Number of Bits | 16 |
| Reference Type | Ext | Voltage Rating | ±5V |
| Data Rate (Max) | 250 KSPs | Number of Inputs | 1 |
| Voltage - Supply | 4.5 V to 5.5 V, 2.7 V to 5.5 V | Resolution (Bits) | :16bit |
| Voltage Reference | 2.7 V | Number of Channels | 1 |
| Sampling Frequency | 250 ksps | Analog Input:Output | 5.5 |
| Current Rating (Max) | Catalog | Number of ADCs / DACs | 1 |
| Voltage Supply Source | Single | Power - Average Forward | 5.8 |
| Power Dissipation (Max) | 5.8 mW | Voltage - Supply, Analog | :4.5V to 5.5V |
| Differential Nonlinearity | -1/2LSB | Voltage - Supply, Digital | :2.7V to 5.5V |
| Sampling Rate (Per Second) | 50k ~ 250k | Differential - Input:Output | Yes |
Mechanical
| Width | 3.1(Max) | Weight | 0 |
| Packaging | Reel | Lead Style | Gull-wing |
| Mounting Type | Surface Mount | Mounting Style | SMD/SMT |
| Package / Case | 10MSOP | Length - Overall | 3.1(Max) |
| Package Quantity | VSSOP | Number of Positions | 10 |
| Shell Size - Insert | 0.95(Max) | Supplier Device Package | 10-MSOP |
Product Info
| Series | ADC161S626 | Software | SNAS468D |
| Architecture | SAR | Functional Diagram | fbd_snas468d.gif |
| Utilized IC / Part | View | Printed Circuit Board | 10 |
| Number of A/D Converters | 1 | Number of Inputs and Type | 2 Single-Ended, Bipolar; 1 Differential, Bipolar |
Environmental
| Mechanical Life | New At Mouser | Temperature - Test | -40 to 85 |
| Operating Temperature | + 85 C | ||
