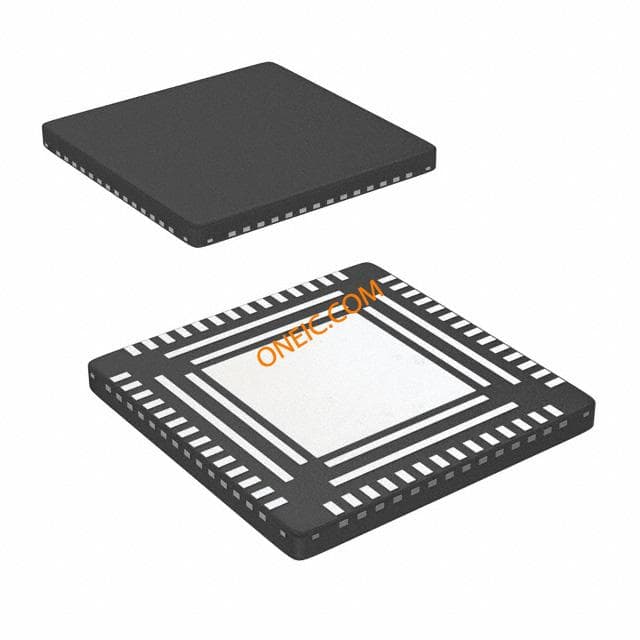

DP83847ALQA56A/NOPB
| Category |
对参数有疑问？问 AI 助手
Business
| Product | Ethernet Transceivers | Standard Package | Trays |
| Factory Pack Quantity | 260 | Standard Package Name | LLP |
Compliance
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| EU RoHS | Compliant | Standards | 100BASE-TX|10BASE-T |
| Tariff No | 85423190 | Part Status | ACTIVE |
| Rad Hardened | No | Protection Features | No |
Electrical
| LED | 6 | Ethernet | 10Base-T, 100Base-TX |
| Data Rate | 10 Mbps, 100 Mbps | Interface | :MII |
| Voltage Rating | 3.3 V | Data Rate (Max) | 100 Mbps |
| Current - Output | 106 mA | Current - Supply | 106 mA |
| Driver Circuitry | :Ethernet Transceiver | Voltage - Supply | 3 V ~ 3.6 V |
| Power Supply Type | Analog|Digital | Number of Channels | 1 |
| Current Rating (Max) | Catalog | Voltage - Supply (Min) | 3 V |
| Power Dissipation (Max) | 351 mW | Connector - Voltage Input | No |
| Differential - Input:Output | No | Common Mode Transient Immunity (Min) | Commercial |
Mechanical
| Width | 9mm | Height | 0.8mm |
| Length | 9mm | Weight | 0.0003 |
| Packaging | Tray | Lead Style | No Lead |
| Termination | :SMD | Cable Length | 120 |
| Mounting Type | Surface Mount | Mounting Style | SMD/SMT |
| Number of Pins | :56 | Package / Case | 56LLP EP |
| Package Cooled | LLP EP | Material Finish | :MSL 3 - 168 hours |
| Length - Overall | 9 | Package Quantity | LLP EP |
| Size / Dimension | 9 x 9 x 0.8mm | Number of Positions | 56 |
| Shell Size - Insert | 0.8(Max) | Supplier Device Package | 56-LLP |
Product Info
| Type | Transceiver | Count | Single |
| Series | DP83847 | Features | 5V Tolerant I/Os |
| Function | PHY | Protocol | No |
| Software | SNLS157 | Base Unit | :83847 |
| Number of Ports | :1 | Utilized IC / Part | View |
| Printed Circuit Board | 56 | Included MCU/MPU Board(s) | No |
| Number of Drivers/Receivers | 1/1 | ||
Environmental
| Temperature - Test | 0 to 70 | Operating Temperature | 0°C ~ 70°C |
| Operating Temperature - Junction | 70C | ||
Documents & Media
Similar Parts
Sourcing & traceability
- Datasheet
- dp83847.pdf
Lot-level traceability (date code, original factory packaging) is confirmed on every quote and shipment.
