DRV8833PWPR
| Manufacturer | |
| Description | Stepper Motor Driver 16-Pin HTSSOP EP T/R IC MOTOR DRIVER PAR 16HTSSOP Motor / Motion / Ignition Controllers & Drivers 2A LO VLTG BIPOLAR STEPPER MOTOR DRIVER IC, MOTOR DRIVER, STEPPER, HTSSOP-16 2A Low Voltage Dual Brushed DC or Single Bipolar Stepper Motor Driver (PWM Ctrl) |
| Category |
对参数有疑问？问 AI 助手
Business
| Product | Brushed DC Motor Drivers | Other Names | 296-29434-2 |
| Product Category | Motor / Motion / Ignition Controllers & Drivers | Standard Package | Tape & Reel |
| Factory Pack Quantity | 2000 | Standard Package Name | TSSOP |
Compliance
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (16-Dec-2013) |
| EU RoHS | Compliant | Tariff No | 85423990 |
| Part Status | ACTIVE | Rad Hardened | No |
Electrical
| Interface | Parallel | Voltage - Load | 2.7 V ~ 10.8 V |
| Voltage Rating | 2.7 | Current - Output | 1.5A |
| Voltage - Supply | 2.7 V ~ 10.8 V | Number of Outputs | :2 |
| Current Rating (Max) | Catalog | Current - Peak Output | 2 |
| Rds On (Max) @ Id, Vgs | 360 | Voltage - Supply (Min) | 2.7 V |
| Voltage - Supply (Vcc/Vdd) | 10.8 | Current - On State (It (RMS)) (Max) | 1.5 |
Mechanical
| Width | 4.5(Max) | Weight | 0.00027 |
| Packaging | Tape and Reel | Case Color | :HTSSOP |
| Lead Style | Gull-wing | Motor Type | Stepper Motor Driver |
| Mounting Type | Surface Mount | Mounting Style | SMD/SMT |
| Number of Pins | :16 | Package / Case | 16HTSSOP EP |
| Package Cooled | HTSSOP EP | Material Finish | :MSL 3 - 168 hours |
| Length - Overall | 5.1(Max) | Package Quantity | HTSSOP EP |
| Number of Positions | 16 | Shell Size - Insert | 1.05(Max) |
| Supplier Device Package | 16-HTSSOP | ||
Product Info
| Type | Stepper Motor Driver | Series | DRV8833 |
| Features | Outputs can be paralleled | Function | Driver - Fully Integrated, Control and Power Stage |
| Software | SLVSAR1E | Applications | General Purpose |
| Pattern Number | Y | Control Interface | PWM |
| Functional Diagram | fbd_slvsar1e.gif | Utilized IC / Part | View |
| Motor Type - AC, DC | Brushed DC | Motor Type - Stepper | Bipolar |
| Output Configuration | Full H-Bridge, (2) Dual | Printed Circuit Board | 16 |
Environmental
| Temperature - Test | -40 to 85 | Operating Temperature | -40 to 150 °C |
| Operating Temperature - Junction | 150C | ||
Documents & Media
PDF Document
PDF Document
Similar Parts
RE933-03
Roth Elektronik
RE933-03, Surface Mount (SMT) Board TSSOP Epoxy Glass Double-Sided 23.5 x 13.5 x 1.5mm FR4 ADAPTOR, SMD, TSSOP-16, 0.65MM SMDmulti-adaptorTSSOP-16pin,RE933-03 Board: universal; multiadapter; W:13.5mm; L:23.5mm; TSSOP16 Laboratory card FR4 Epoxide + chem. Ni/Au TSSOP16 Adapter, RE933-03, Roth Elektronik
$43.3160
Details
RE933
Roth Elektronik

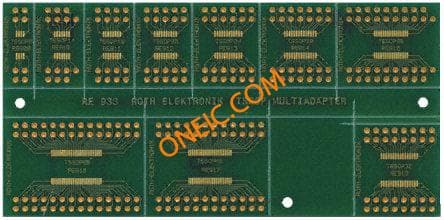

TSSOP - SMD multi-adapter,120.10x58.90mm MULITADAPTOR, SMD, FR4, TSSOP PCB,RE933 Board: universal; multiadapter; W:58.9mm; L:120.1mm Laboratory card FR4 Epoxide + chem. Ni/Au Multiadapter TSSOP, RE933, Roth Elektronik
