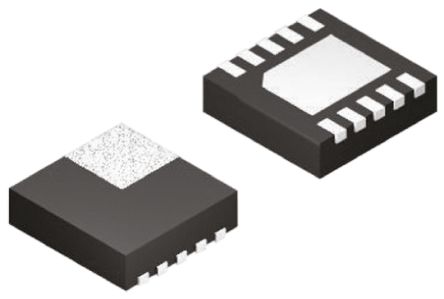

LM2750LD-5.0/NOPB
| Category |
对参数有疑问？问 AI 助手
Business
| Product | Voltage Regulators | Other Names | LM2750LD-5.0/NOPBDKR |
| Standard Package | Tape & Reel | Factory Pack Quantity | 1000 |
| Standard Package Name | LLP | ||
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
| Part Status | ACTIVE | ||
Electrical
| Efficiency | 87(Typ) % | Output Type | Fixed |
| Regulator Type | Step Up | Voltage Rating | 5 V |
| Current - Output | 0.12 A | Current - Supply | 5 mA |
| Voltage - Supply | 5V | Number of Outputs | 1 |
| Switching Regulator | Yes | Current Rating (Max) | Catalog |
| Frequency - Switching | 1700(Typ) kHz | Synchronous Rectifier | No |
| Voltage - Input (Min) | 5V | Voltage - Output (Max) | 5.2 V |
| Current - Quiescent (Iq) | 5 | Voltage - Output (Min/Fixed) | 4.8 V |
Mechanical
| Width | 3mm | Height | 0.8mm |
| Length | 3mm | Packaging | Tape and Reel |
| Lead Style | No Lead | Mounting Type | Surface Mount |
| Mounting Style | SMD/SMT | Number of Pins | 10 |
| Package / Case | 10LLP EP | Package Cooled | LLP EP |
| Length - Overall | 3 | Package Quantity | LLP EP |
| Size / Dimension | 3 x 3 x 0.8mm | Number of Positions | 10 |
| Shell Size - Insert | 0.8(Max) | Supplier Device Package | 10-WSON (3x3) |
Product Info
| Type | Step Up | Series | LM2750 |
| Features | Enable | Shutdown | Shutdown |
| Software | SNVS180M | Topology | Boost |
| Manufacturer | Texas Instruments | Functional Diagram | fbd_snvs180m.gif |
| Utilized IC / Part | View | Function - Lighting | 上升 |
| Output Configuration | Surface Mount | Printed Circuit Board | 10 |
