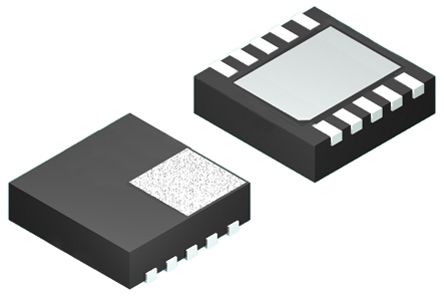

LM2750SD-5.0/NOPB
| Manufacturer | |
| Description | Conv DC-DC Single Step Up 2.7V to 5.6V 10-Pin LLP EP T/R Conv DC-DC Single Step Up 2.7V to 5.6V 10-Pin WSON EP T/R IC REG MULTI CONFIG 5V 10WSON Voltage Regulators - Switching Regulators Reg Switch Capacitor Boost Reg IC, VOLTAGE REGULATOR Low Noise Regulator Switched Capacitor Boost Regulator Texas Instruments 升压转换器 转换器, 120mA, 4.8 → 5.2 V输出, 1.7 MHz, 10针 WSON封装 Switching Voltage Regulators Reg Switch Capacitor Boost Reg |
| Category |
对参数有疑问？问 AI 助手
Business
| Product | Voltage Regulators | Other Names | LM2750SD-5.0/NOPBDKR |
| Standard Package | Tape & Reel | Factory Pack Quantity | 1000 |
| Standard Package Name | SON | ||
Compliance
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| EU RoHS | Compliant | Tariff No | 85423190 |
| Part Status | ACTIVE | Rad Hardened | No |
Electrical
| Accuracy | :4% | Frequency | :1.7MHz |
| Efficiency | 87(Typ) % | Output Type | Fixed |
| Regulator Type | :Boost Switching | Voltage Rating | 5 V |
| Current - Output | 0.12 A | Voltage - Supply | :2.7V |
| Number of Outputs | 1 | Regulator Topology | Step Up |
| Switching Regulator | Yes | Current Rating (Max) | Catalog |
| Frequency - Switching | 1700(Typ) kHz | Synchronous Rectifier | No |
| Voltage - Input (Min) | 5V | Voltage - Output (Max) | :5V |
| Current - Quiescent (Iq) | 5 | DC Voltage - Input (Min) | 2.7 V |
| Voltage - Continuous Operating (Max) (MCOV) | :5.6V | ||
Mechanical
| Width | 3.15(Max) | Weight | 0.0003 |
| Packaging | Tape and Reel | Lead Style | No Lead |
| Termination | :SMD | Mounting Type | Surface Mount |
| Number of Pins | :10 | Package / Case | 10LLP EP |
| Package Cooled | LLP EP | Material Finish | :MSL 1 - Unlimited |
| Length - Overall | 3.15(Max) | Package Quantity | WSON EP |
| Number of Positions | 10 | Shell Size - Insert | 0.75(Max) |
| Supplier Device Package | 10-WSON (3x3) | ||
Product Info
| Type | Step Up | Series | LM2750 |
| Features | Enable | Software | SNVS180M |
| Topology | Boost | Base Unit | :2750 |
| Functional Diagram | fbd_snvs180m.gif | Utilized IC / Part | View |
| Printed Circuit Board | 10 | ||
