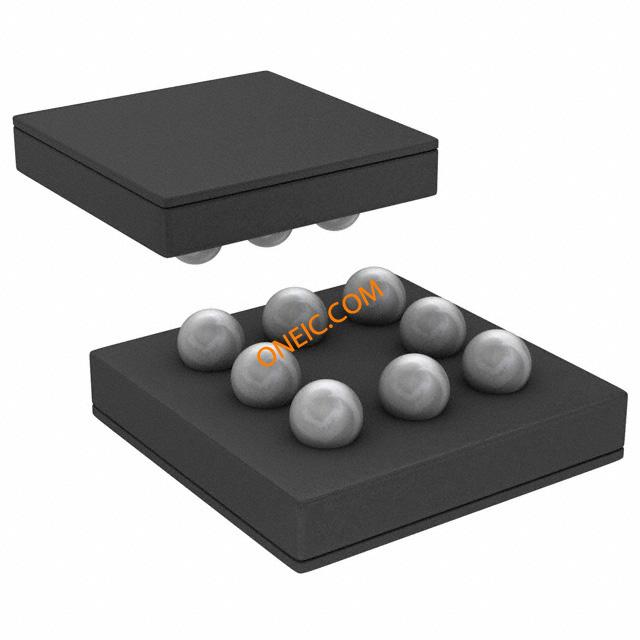

LM3501TL-21/NOPB
| Category |
对参数有疑问？问 AI 助手
Business
| Standard Package | Tape & Reel | Factory Pack Quantity | 250 |
| Standard Package Name | BGA | ||
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
| Part Status | ACTIVE | ||
Electrical
| LED | 5 | Channels | 1 |
| Frequency | 850kHz ~ 1.15MHz | Duty Cycle | 94 |
| Efficiency | 85 | Output Type | Fixed |
| Converter Type | 升压 | Regulator Type | 是 |
| Voltage Rating | 20 | Line Regulation | 0.1%/V(Typ) |
| Current - Output | 0.07 | Voltage - Supply | 2.7 V ~ 7 V |
| Number of Outputs | 1 | Switching Regulator | Yes |
| Current Rating (Max) | Catalog | Frequency - Switching | 1000 |
| Voltage - Input (Min) | 19.5 V ~ 20.5 V | Voltage - Output (Max) | 20 V |
| Current - Off State (Max) | 0.1 | Voltage Regulation - Load | 0.5 %/V |
| Current - Output / Channel | 100 | Voltage - Output (Min/Fixed) | 6 V |
Mechanical
| Width | 1.972mm | Height | 0.335mm |
| Length | 1.97mm | Packaging | Tape and Reel |
| Lead Style | Ball | Mounting Type | Surface Mount |
| Number of Pins | 8 | Package / Case | 8-WFBGA |
| Length - Overall | 1.92 | Package Quantity | uSMD |
| Size / Dimension | 1.972 x 1.972 x 0.335mm | Number of Positions | 8 |
| Shell Size - Insert | 0.36 | Supplier Device Package | 8-uSMD |
Product Info
| Type | Step Up | Series | LM3501 |
| Features | OVP | Software | SNVS230C |
| Topology | PWM, Step-Up (Boost) | Functional Diagram | fbd_snvs230c.gif |
| Utilized IC / Part | View | Internal Connection | Yes |
| Printed Circuit Board | 8 | ||
Environmental
| Temperature - Test | -40 to 85 | Operating Temperature | -40°C ~ 125°C |
Documents & Media
PDF Document
PDF Document
PDF Document
PDF Document
Online Document
Sourcing & traceability
- Datasheet
- lm3501.pdf
Lot-level traceability (date code, original factory packaging) is confirmed on every quote and shipment.
