LM5045EVAL/NOPB

Manufacturer	Texas Instruments Incorporated
Description	Power Management IC Development Tools LM5045EVAL BOARD EVAL BOARD LM5045 LM5045EVAL/NOPB EVALUATION MODULE
Category	嵌入式系统与开发工具嵌入式开发工具评估与开发套件

对参数有疑问？问 AI 助手

商业参数

产品	Evaluation Boards	其他名称	LM5045EVALNOPB
产品类别	Power Management IC Development Tools	标准包装数量	1
工厂包装数量	1

合规参数

RoHS	RoHS Compliant	SVHC	:No SVHC (16-Dec-2013)
海关税号	90309085

电气参数

额定电压	36 V to 75 V	输出电流	30 A
稳压器拓扑	Full-Bridge	开关频率	420kHz
最小输入电压	3.3V

机械参数

重量	1	电路板厚度	Fully Populated
尺寸/外形	2.28 in x 1.45 in x 0.5 in

产品信息

类型	PWM Controllers	内容	Board
功能	The LM5045 evaluation board is designed to provide the design engineer with a fully functional power converter based on the full-bridge topology to evaluate the LM5045 PWM controller	主要用途	DC/DC, Step Down
输出及类型	1, Isolated	工具类型/特性	LM5045
使用的IC/零件	LM5045

环境参数

机械寿命

New At Mouser

Documents & Media

PDF Document

LM5045

相关型号

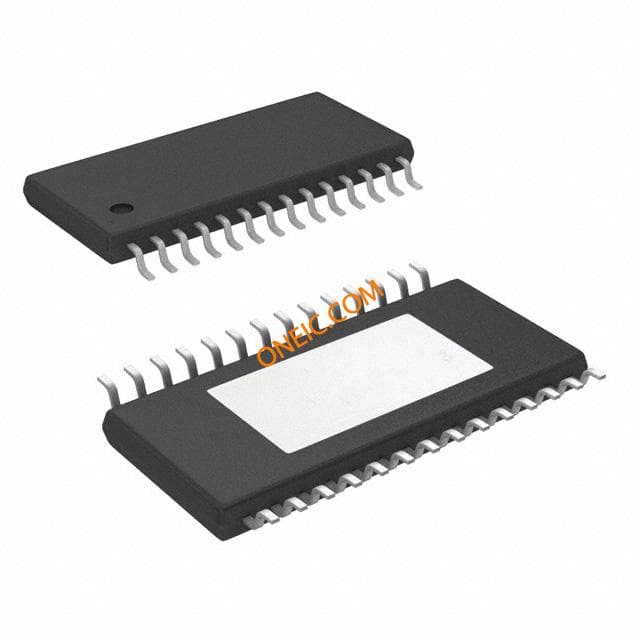

LM5045MHX/NOPB
