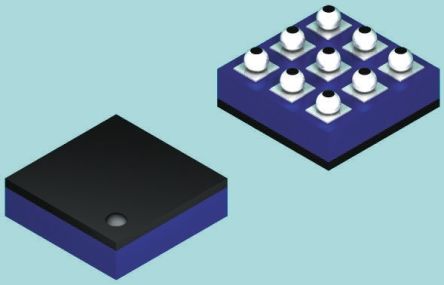

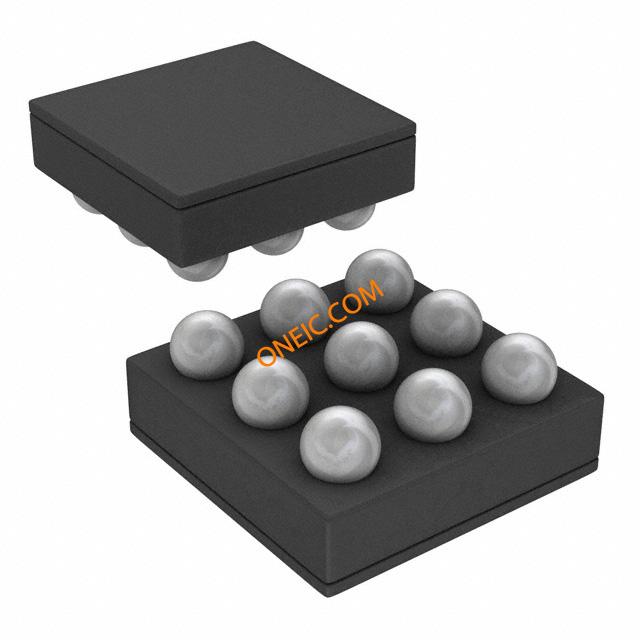

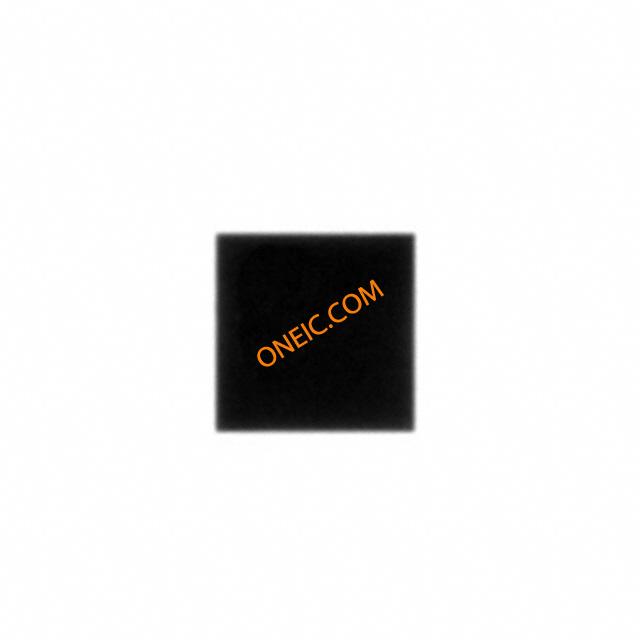

LP5524TM-5/NOPB
| Category |
对参数有疑问？问 AI 助手
Business
| Standard Package | Tape & Reel | Factory Pack Quantity | 250 |
Compliance
| RoHS | RoHS Compliant | Part Status | ACTIVE |
| Rad Hardened | No | ||
Electrical
| LED | 4 | Channels | 4 |
| Output Type | Constant Current | Voltage Rating | 2.7 V to 5.5 V |
| Current - Output | 25.5 mA | Current - Supply | 0.21 mA |
| Voltage - Supply | 2.7 to 5.5 V | Number of Outputs | 4 |
| Current Rating (Max) | Catalog | Voltage - Supply (Min) | 2.7 V |
| Resistor Matching Ratio | 0.4% | Current - Off State (Max) | 0.2 |
| Current - Output / Channel | 25 | Constant Current Load - Max | Yes |
| Current - Average Rectified (Io) | Yes | ||
Mechanical
| Width | 1.22mm | Height | 0.36mm |
| Length | 1.22mm | LED Color | Parallel |
| Packaging | Reel | Mounting Type | Surface Mount |
| Mounting Style | SMD/SMT | Number of Pins | 9 |
| Package / Case | 9uSMD | Package Cooled | μSMD |
| Package Quantity | 250 | SMALL T&R | Primary Material | Backlight |
| Size / Dimension | 1.22 x 1.22 x 0.36mm | Number of Positions | 9 |
| Supplier Device Package | 9-uSMD | ||
Product Info
| Type | White LED | Series | LP5524 |
| Function | Y | Software | SNVS500A |
| Topology | High Side, PWM | Matchcode | 0.4% |
| Manufacturer | Texas Instruments | Functional Diagram | fbd_snvs500a.gif |
| Internal Switch(s) | Yes | Number of Segments | 4 |
| Utilized IC / Part | View | Internal Connection | Yes |
| Output Configuration | Surface Mount | ||
Environmental
| Mechanical Life | New At Mouser | Temperature - Test | -40 to 85 |
| Operating Temperature | + 85 C | Operating Temperature - Junction | 85C |
Documents & Media
PDF Document
PDF Document
Sourcing & traceability
- Datasheet
- lp5524.pdf
Lot-level traceability (date code, original factory packaging) is confirmed on every quote and shipment.
