LT1009ID
| Manufacturer | |
| Description | V-Ref Precision 2.5V 10mA 8-Pin SOIC Tube IC VREF SHUNT PREC 2.5V 8-SOIC Voltage References 2.5V Micro Pwr IC, SM, VOLT REF, 2.5V 2.5-V Integrated Reference Circuit Texas Instruments Fixed 2.5V 电压参考, ±0.2 %精确度, 10mA, 8针 SOIC封装 |
| Category |
对参数有疑问？问 AI 助手
Business
| Product | Voltage References | Other Names | 296-9586-5 |
| Product Category | Voltage References | Standard Package | Rail / Tube |
| Factory Pack Quantity | 75 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| Tariff No | 85423190 | Part Status | :1009 |
| Rad Hardened | No | ||
Electrical
| Tolerance | ±0.2% | Reference Type | Precision |
| Voltage Rating | 2.5 V | Load Regulation | 6 mV |
| Current - Output | 10 mA | Voltage - Supply | :0.2% |
| Current - Cathode | 400µA | Voltage Reference | :2.5V |
| Current - Output 1 | 10 | Number of Channels | 1 |
| Current Rating (Max) | Catalog | Voltage - Input (Min) | 2.5V |
| Voltage - Output (Max) | 2.5 V | Current - Output / Channel | 10 mA |
| Accuracy - Highest (Lowest) | 0.2 % | Current - Leakage (IS(off)) (Max) | 400 uA |
Mechanical
| Weight | 0.002561 oz | Packaging | Tube |
| Mounting Type | Surface Mount | Mounting Style | SMD/SMT |
| Number of Pins | :8 | Package / Case | 8SOIC |
| Package Cooled | SOIC | Material Finish | :MSL 1 - Unlimited |
| Package Quantity | 75 | TUBE | Number of Positions | 8 |
| Supplier Device Package | 8-SOIC | ||
Product Info
| Series | LT1009 | Software | SLVS013N |
| Topology | Shunt | Base Unit | :1009 |
| Programmable | Precision | Functional Diagram | alt_slvs013n.gif |
| Utilized IC / Part | View | ||
Environmental
| Temperature - Test | -40 to 85 | Operating Temperature | -40 to 85 °C |
| Temperature Coefficient | 35 ppm/°C | Temperature Coefficient (Typ) | 25 PPM / C |
Documents & Media
Similar Parts
744720
Wurth Electronics Inc

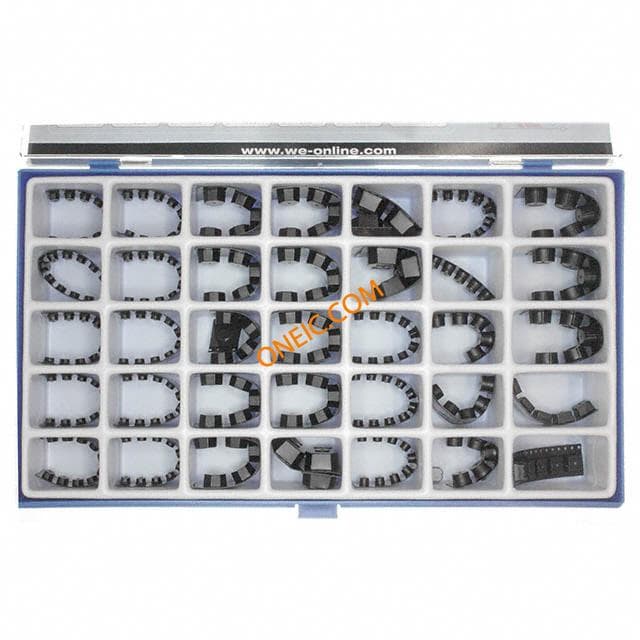

KIT DESIGN FOR LINEAR TECH Wurth Elektronik Power Inductor Inductor Design Kit, 239 Pieces DESIGN-KIT SMD-POWER CHOKES Wurth Elektronik 239件 电感器设计套件, 套件包含功率电感器
